Home > Boring and Reaming Tools > Rough Boring Tools
BSA 45° Boring Holder With Square Boring Bit
BSA 45° Boring Holder With Square Boring Bit BSA 45° Boring Holder With Square Boring Bit BSA 45° Boring Holder With Square Boring Bit BSA 45° Boring Holder With Square Boring Bit BSA 45° Boring Holder With Square Boring Bit BSA 45° Boring Holder With Square Boring Bit
  • BSA 45° Boring Holder With Square Boring Bit
  • BSA 45° Boring Holder With Square Boring Bit

BSA 45° Boring Holder With Square Boring Bit

Item No.: BSA 45° Boring Holder With Square Bit
* Can be with 4-corner welded cutter or indexable cutting tools.
* Special for blind holes.
Add to Inquiry
Description
Description
ROUGH BORING TOOLS

BSA 45° Boring Holder With Square Boring Bit

Features:
* Can be with 4-corner welded cutter or indexable cutting tools.
* Special for blind holes.

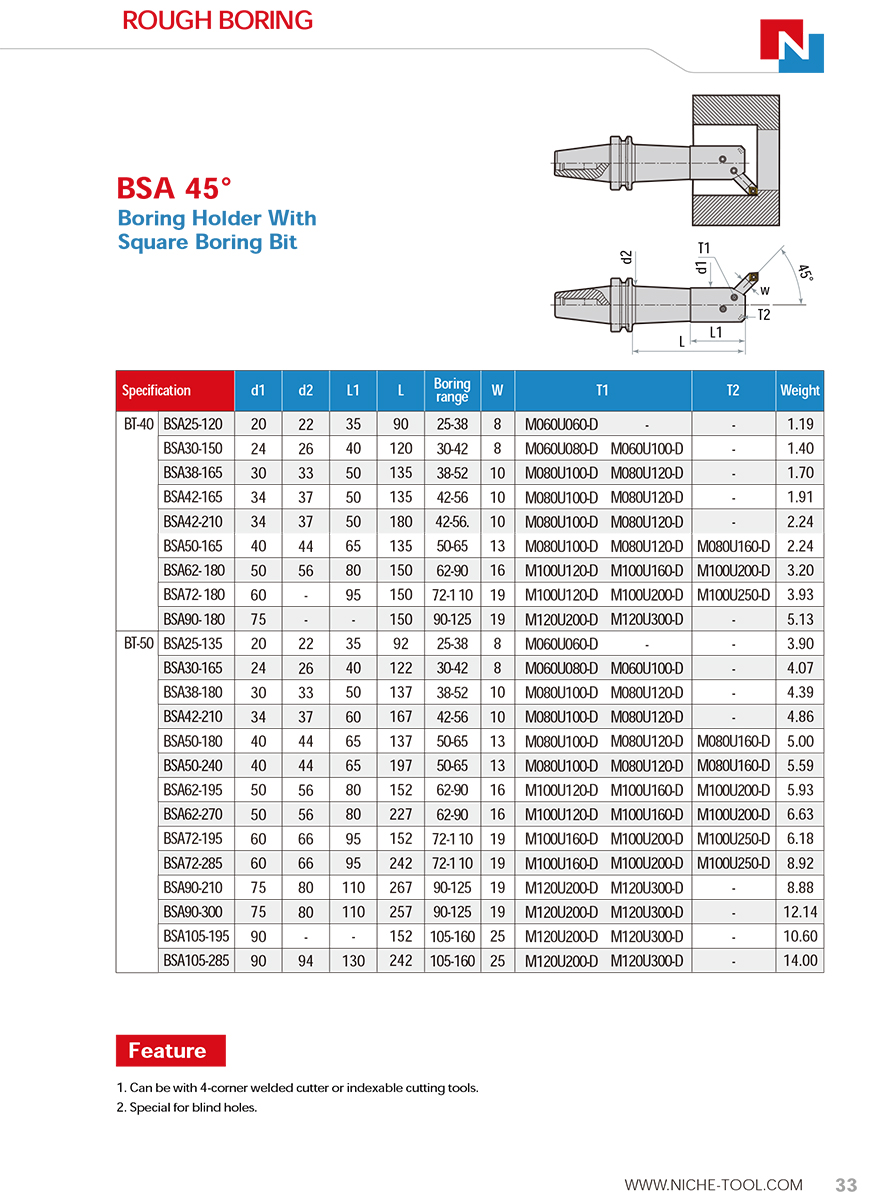

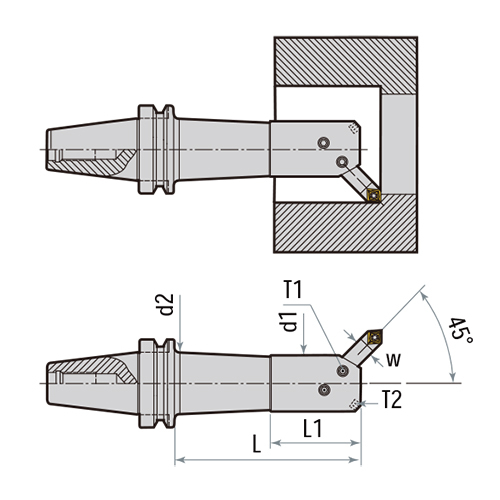

BSA 45° Boring Holder With Square Boring Bit


  Specification d1 d2 L1 L Boring
range		 W T1 T2 Weight
BT-40 BSA25-120 20 22 35 90 25-38 8      M060U060-D            - - 1.19
BSA30-150 24 26 40 120 30-42 8 M060U080-D  M060U100-D - 1.40
BSA38-165 30 33 50 135 38-52 10 M080U100-D  M080U120-D - 1.70
BSA42-165 34 37 50 135 42-56 10 M080U100-D  M080U120-D - 1.91
BSA42-210 34 37 50 180 42-56 13 M080U100-D  M080U120-D - 2.24
BSA50-165 40 44 65 135 50-65 13 M080U100-D  M080U120-D M080U160-D 2.24
BSA62-180 50 56 80 150 62-90 16 M100U120-D  M100U160-D M100U200-D 3.20
BSA72-180 60 - 95 150 72-110 19 M100U120-D  M100U200-D M100U250-D 3.93
BSA90-180 75 - - 150 190-125 19 M120U200-D  M120U300-D - 5.13






BT-50






 BSA25-135 20 22 35 92 25-38 8      M060U060-D            - - 3.90
BSA30-165 24 26 40 122 30-42 8 M060U080-D  M060U100-D - 4.07
BSA38-180
 30 33 50 137 38-52 10 M080U100-D  M080U120-D
 - 4.39
BSA42-210
 34 37 60 167 42-56 10 M080U100-D  M080U120-D
 - 4.86
BSA50-180
 40 44 65 137 50-65 13 M080U100-D  M080U120-D
 M080U160-D 5.00
BSA50-240
 40 44 65 197 50-65 13 M080U100-D  M080U120-D
 M080U160-D 5.59
BSA62-195
 50 56 80 152 62-90 16 M100U120-D  M100U160-D
 M100U200-D 5.93
BSA62-270
 50 56 80 227 62-90 16 M100U120-D  M100U160-D
 M100U200-D 6.63
BSA72-195
 60 66 95 152 72-110 19 M100U160-D  M100U200-D
 M100U250-D 6.18
BSA72-285
 60 66 95 242 72-110 19 M100U160-D  M100U200-D
 M100U250-D 8.92
BSA90-210 75 80 110 267 90-125 19 M120U200-D  M120U300-D - 8.88
BSA90-300 75 80 110 257 90-125 19 M120U200-D  M120U300-D - 12.14
BSA105-195 90 - - 152 105-160 25 M120U200-D  M120U300-D - 10.60
BSA105-285 90 94 130 242 105-160 25 M120U200-D  M120U300-D - 14.00


BSA 45° Boring Holder With Square Boring Bit
