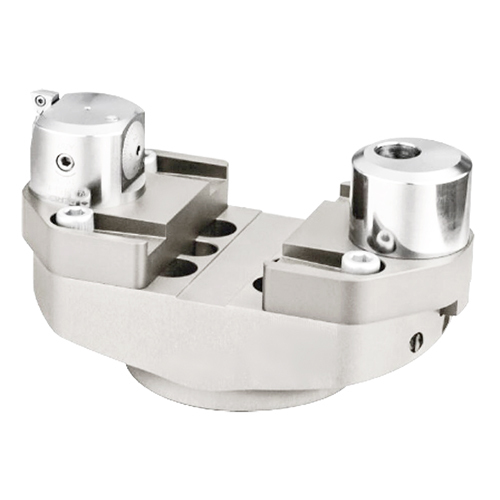

MICRO BORING TOOLS FM-CBH Large Diameter Boring Tool For Finishing
Features:
* 70-90% of material is made from Aluminum.
* With internal cooling supply.
* Balanced: G6.3;1,000 rpm.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.

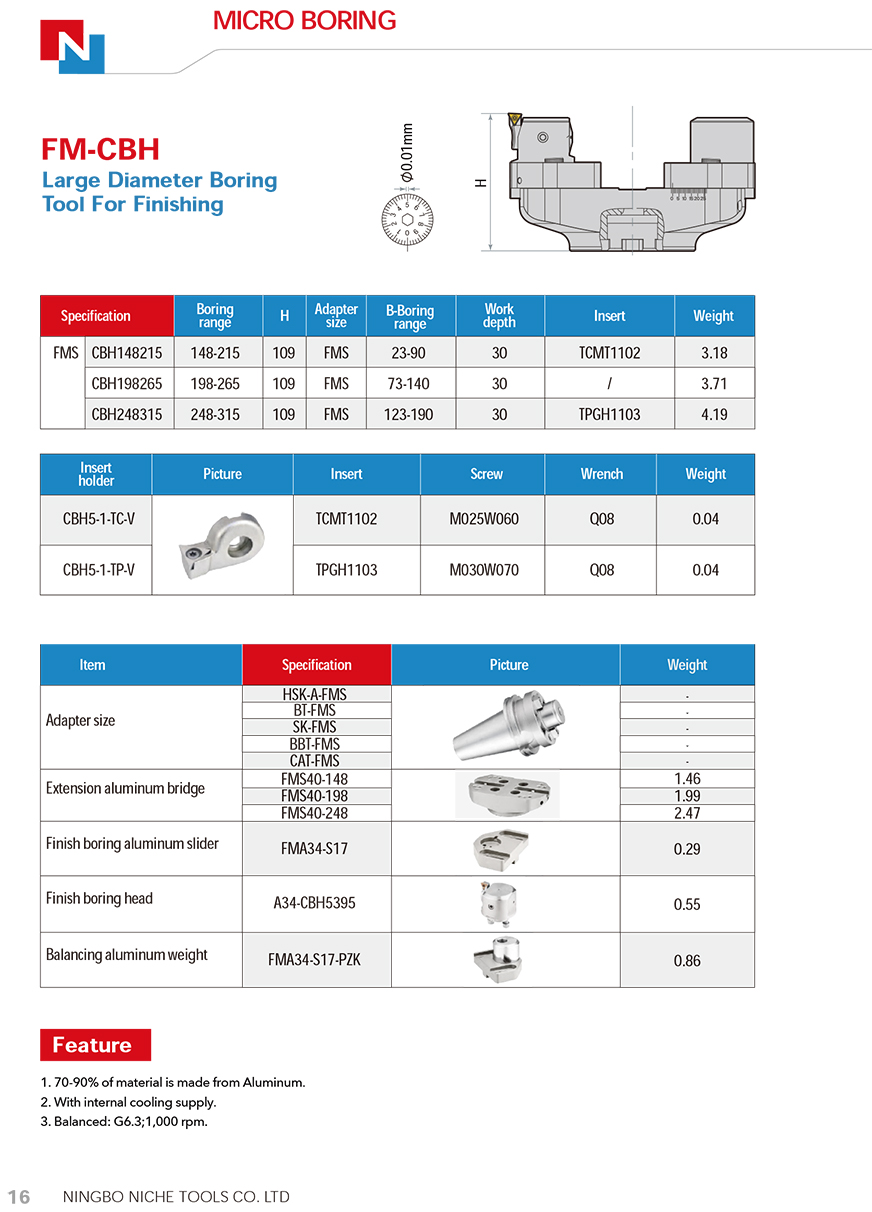

Specification |
Boring range |

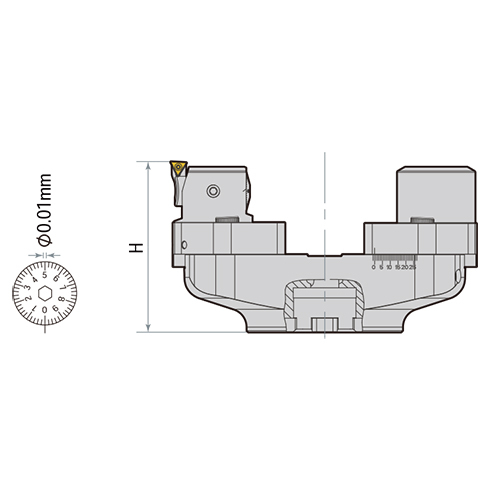

H |
Adapter size |
B-Boring range |
Work depth |
Insert |
Weight |
FMS |
CBH148215 |
148-215 |
109 |
FMS |
23-90 |
30 |
TCMT1102 |
3.18 |
CBH198265 |
198-265 |
109 |
FMS |
73-140 |
30 |
/ |
3.71 |
CBH248315 |
248-315 |
109 |
FMS |
123-190 |
30 |
TPGH1103 |
4.19 |
