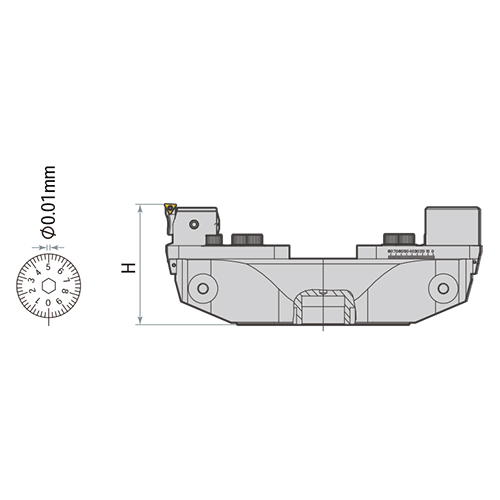

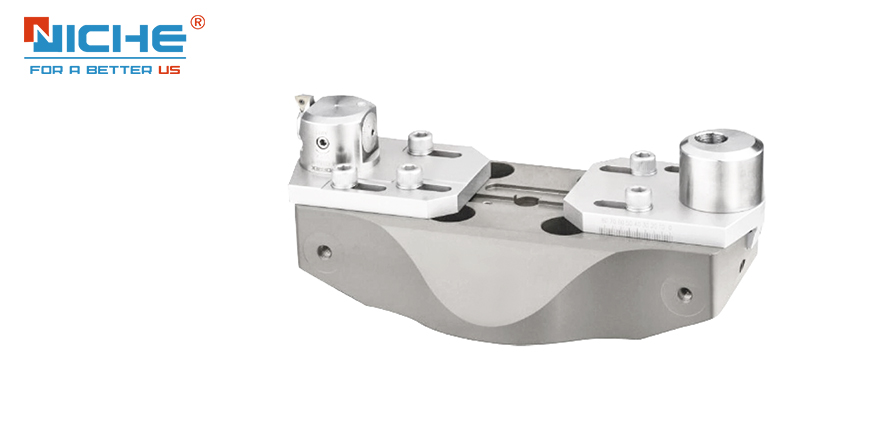

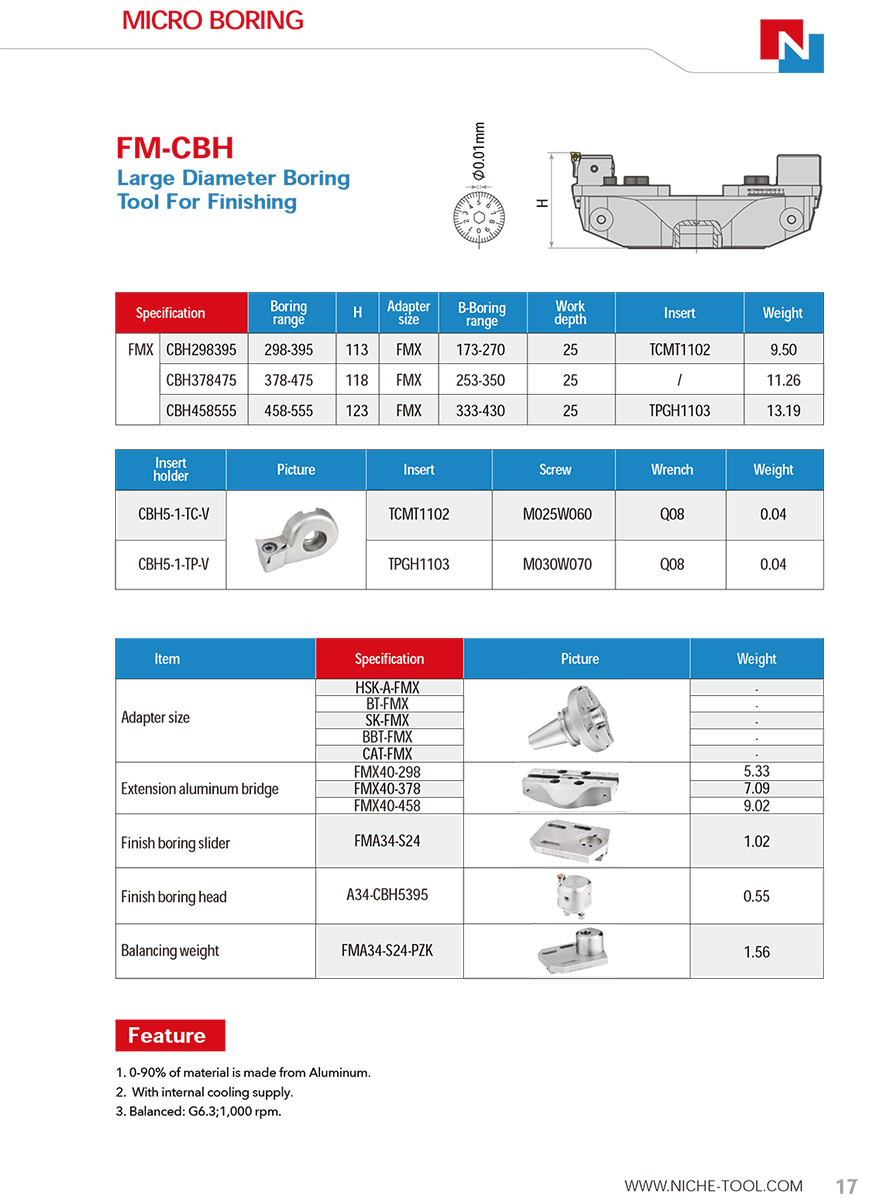

MICRO BORING TOOLS FM-CBH Large Diameter Boring Tool For Finishing
Features:
* 0-90% of material is made from Aluminum.
* With internal cooling supply.
* Balanced: G6.3;1,000 rpm.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.
Specification |
Boring range |
H |
Adapter size |
B-Boring range |
Work depth |
Insert |
Weight |
FMX |
CBH298395 |
298-395 |
113 |
FMX |
173-270 |
25 |
TCMT1102 |
9.50 |
CBH378475 |
378-475 |
118 |
FMX |
253-350 |
25 |
/ |
11.26 |
CBH458555 |
458-555 |
123 |
FMX |
333-430 |
25 |
TPGH1103 |
13.19 |
