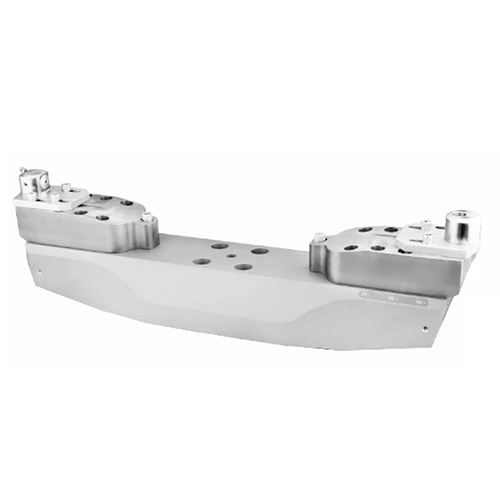

MICRO BORING TOOLS FM-CBH Large Diameter Boring Tool For Finishing
Features:
* 70%-90% of material is made from Aluminum.
* With internal cooling supply.
* Balanced: G6.3;1,000 rpm.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.

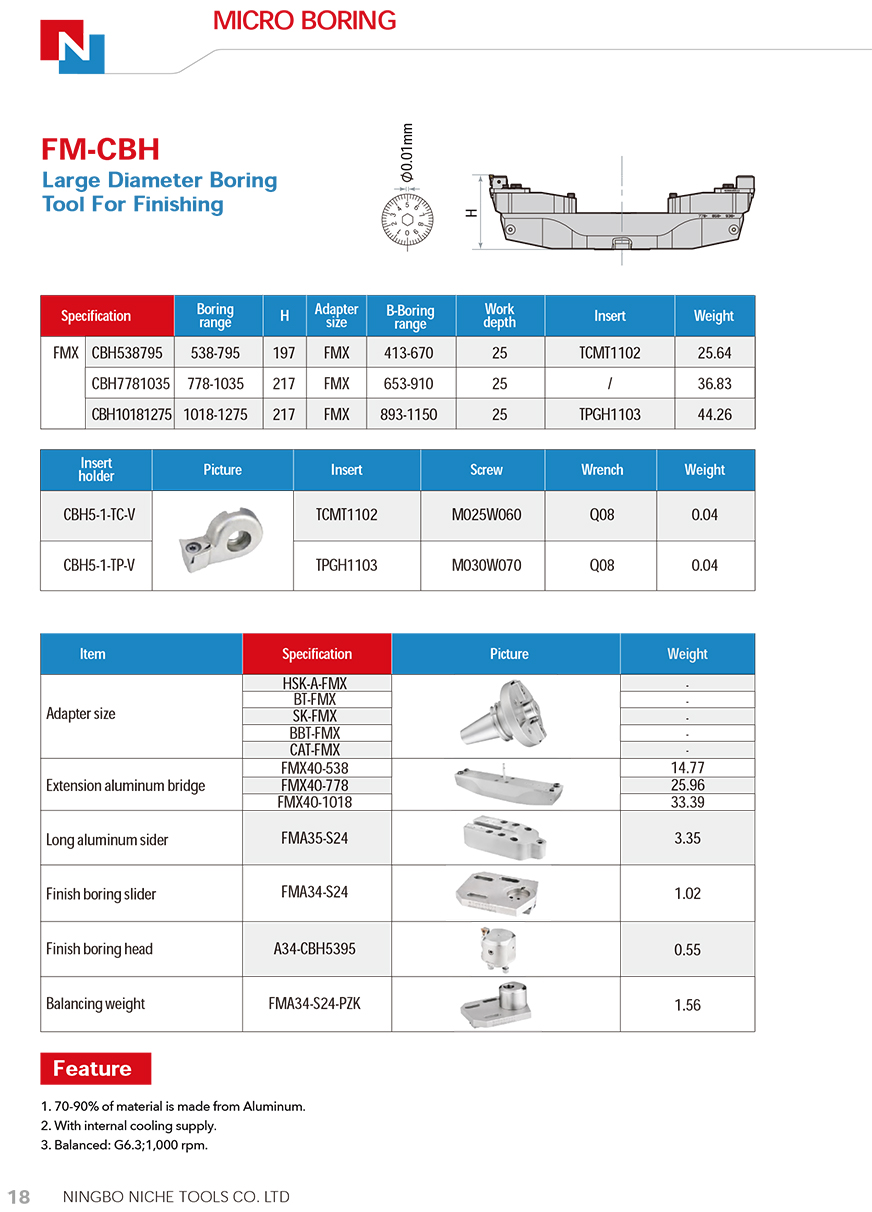

Specification |
Boring range |
H |
Adapter size |
B-Boring range |
Work depth |
Insert |
Weight |
FMX |
CBH538795 |
538-795 |
197 |
FMX |
413-670 |
25 |
TCMT1102 |
25.64 |
CBH7781035 |
778-1035 |
217 |
FMX |
653-910 |
25 |
/ |
36.83 |
CBH1018275 |
1018-1275 |
217 |
FMX |
893-1150 |
25 |
TPGH1103 |
44.26 |
