SHOULDER MILLING TOOLS

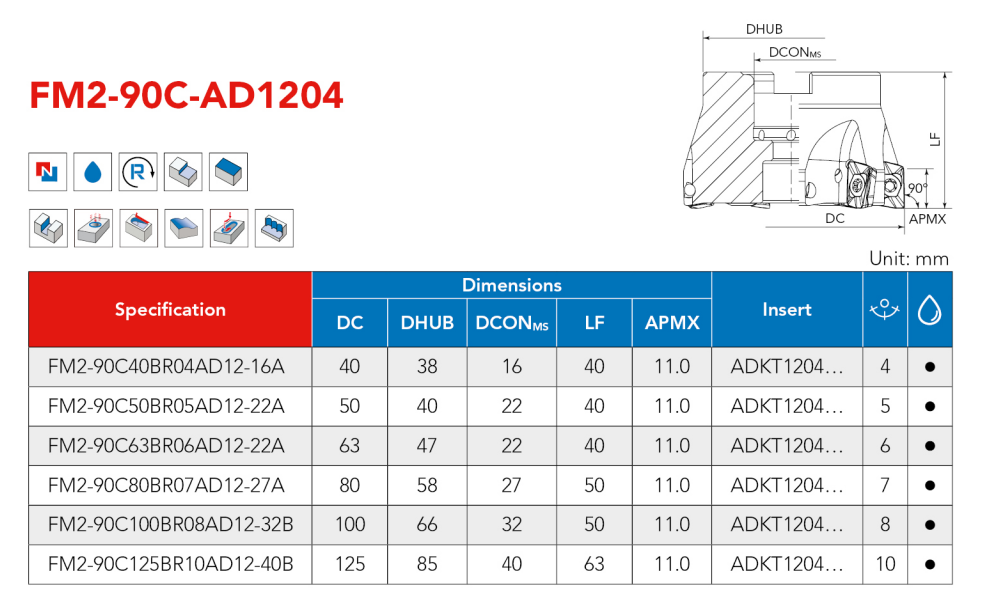

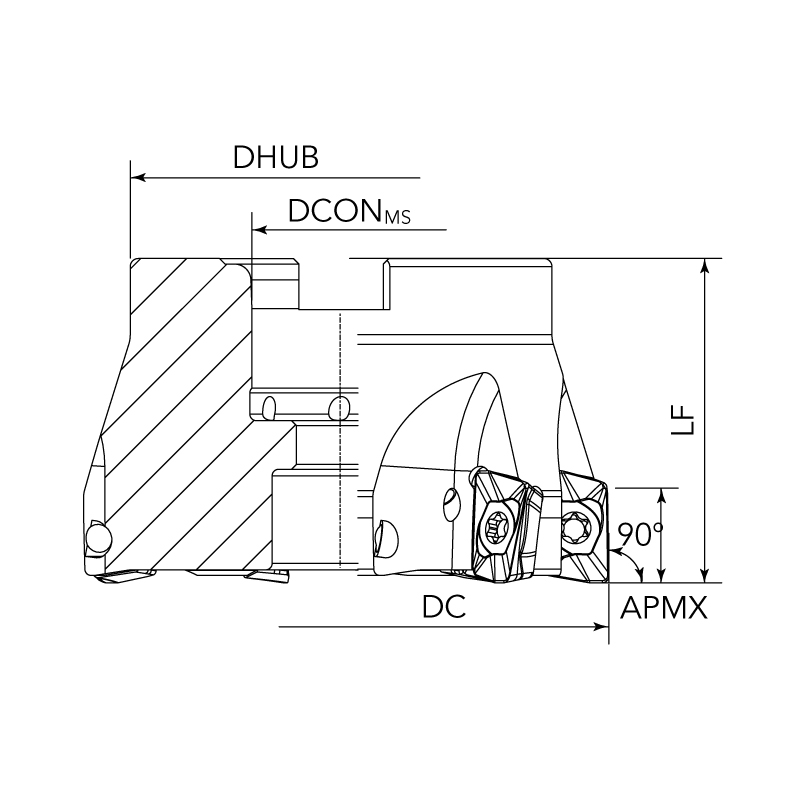

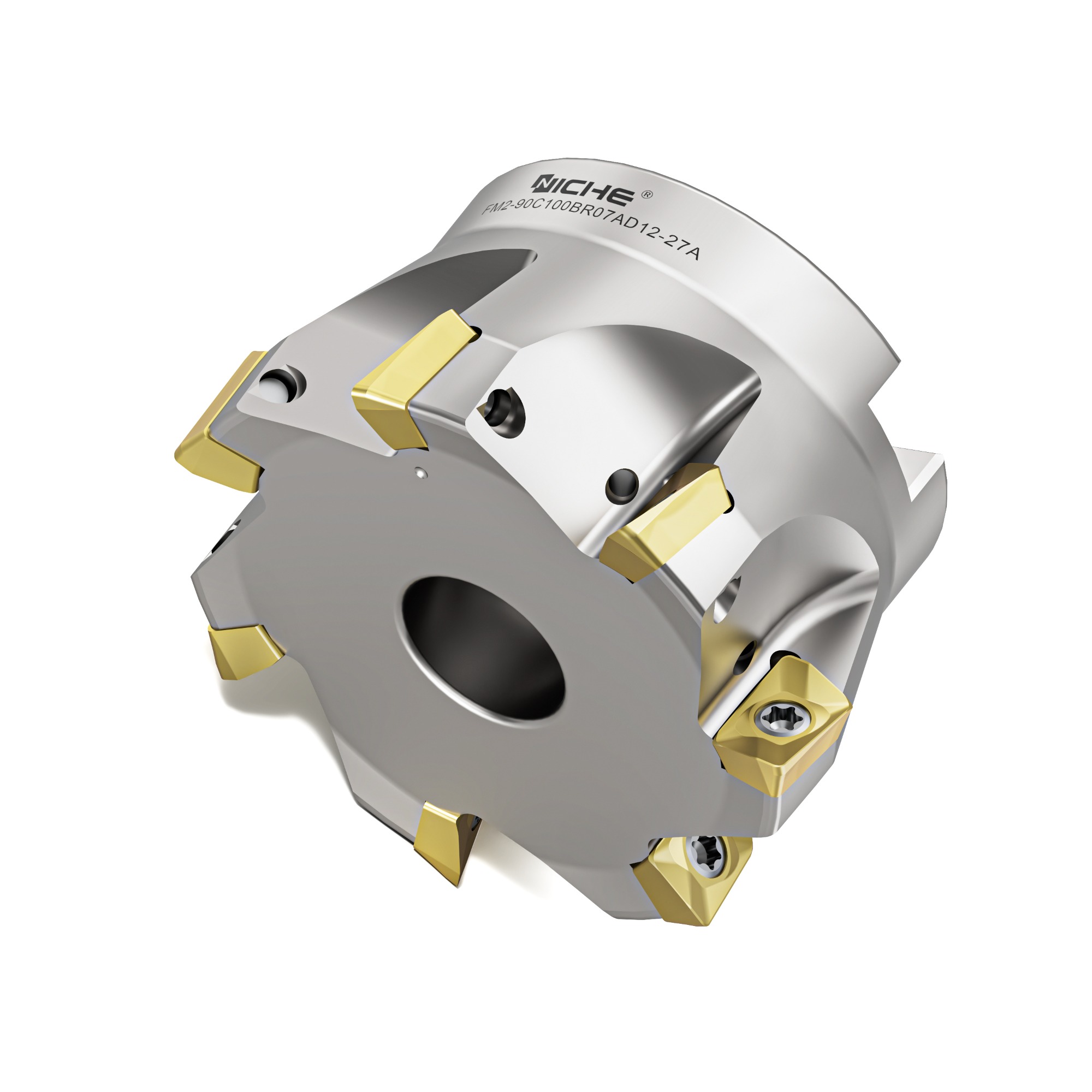

FM2-90C-AD1204 (FACE MILL)
Features:
* Diameter Range: Ø40mm-Ø125mm
* Square Shoulder application
* High rigdity
| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DHUB |
DCONMS |
LF |
APMX |
| FM2-90C40BR04AD12-16A |
40 |
38 |
16 |
40 |
11.0 |
ADKT1204… |
4 |
| FM2-90C50BR05AD12-22A |
50 |
40 |
22 |
40 |
11.0 |
ADKT1204… |
5 |
| FM2-90C63BR06AD12-22A |
63 |
47 |
22 |
40 |
11.0 |
ADKT1204… |
6 |
| FM2-90C80BR07AD12-27A |
80 |
58 |
27 |
50 |
11.0 |
ADKT1204… |
7 |
| FM2-90C100BR08AD12-32B |
100 |
66 |
32 |
50 |
11.0 |
ADKT1204… |
8 |
| FM2-90C125BR10AD12-40B |
125 |
85 |
40 |
63 |
11.0 |
ADKT1204… |
10 |

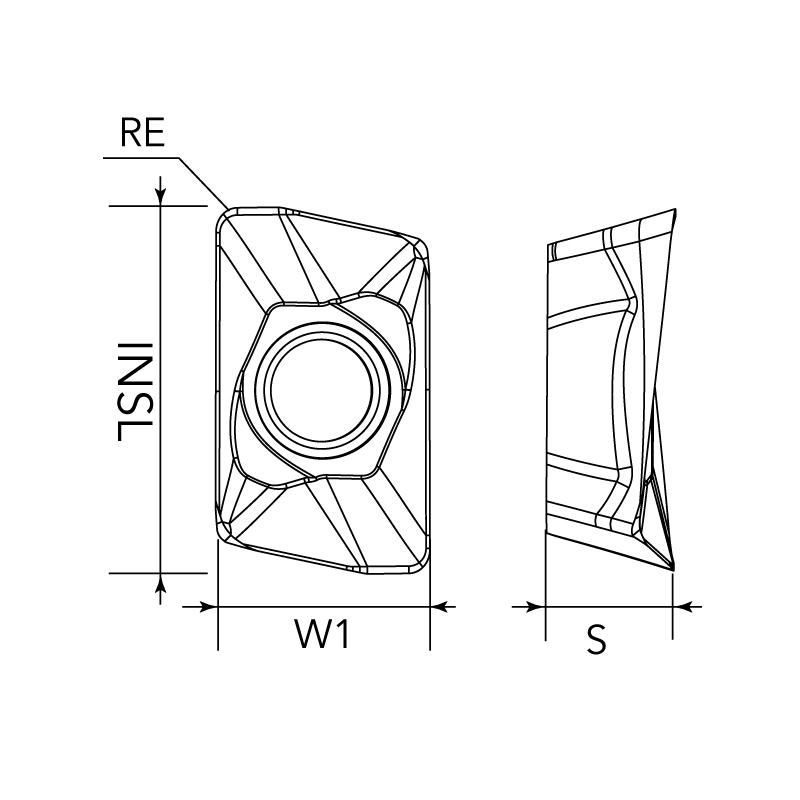

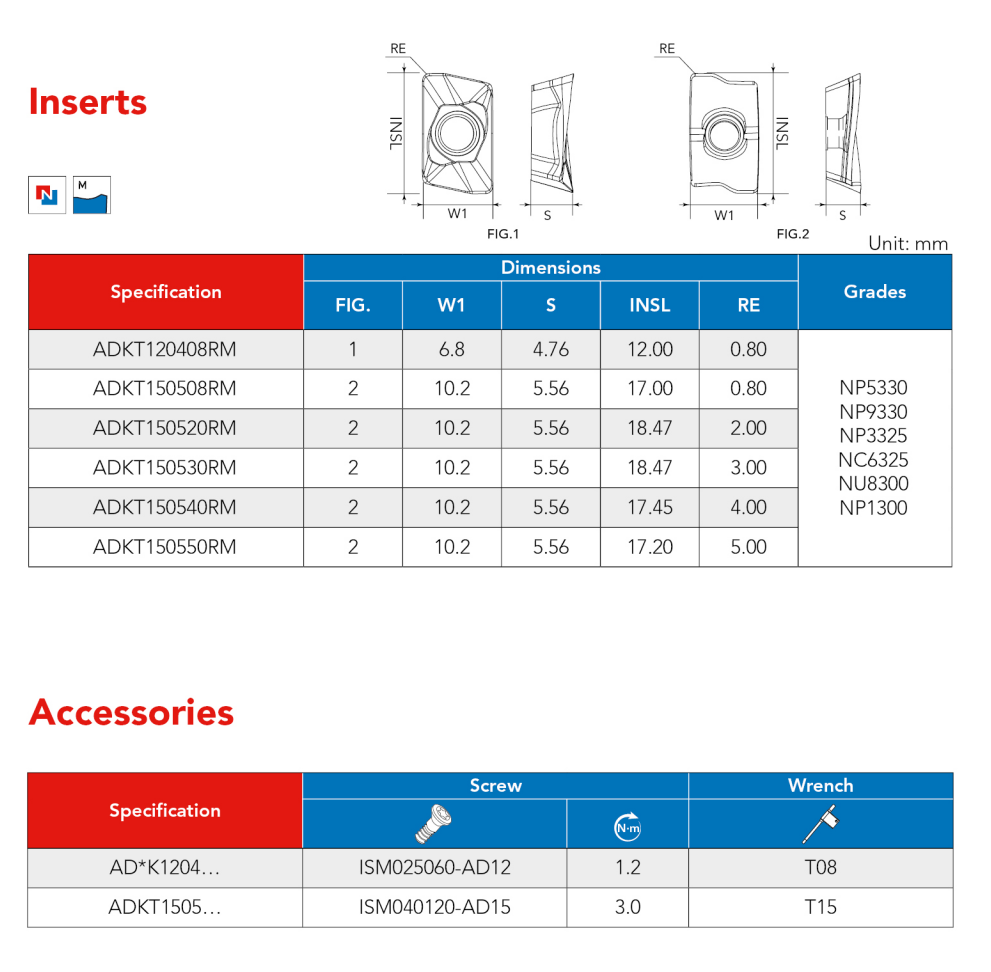

INSERTS
