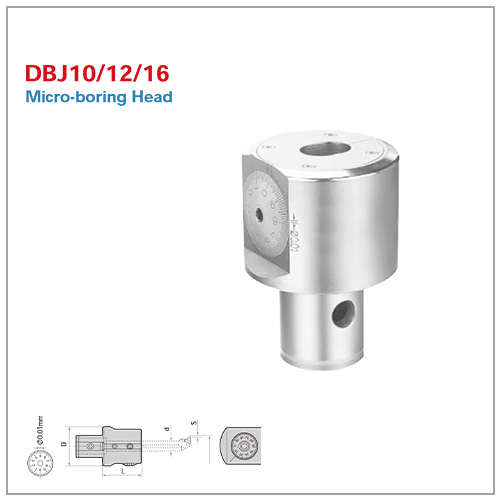

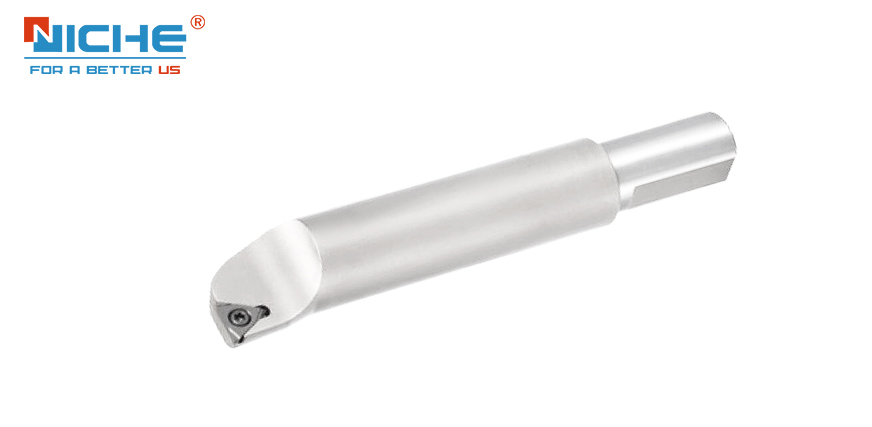

DBJ10/12/16 Micro Boring Bar
DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar DBJ10/12/16 Micro Boring Bar
  • DBJ10/12/16 Micro Boring Bar
  • DBJ10/12/16 Micro Boring Bar
  • DBJ10/12/16 Micro Boring Bar
  • DBJ10/12/16 Micro Boring Bar

DBJ10/12/16 Micro Boring Bar

Item No.: DBJ10/12/16 Micro Boring Bar
* CBH boring head loaded opposite direction can process boring machining.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
Add to Inquiry
Description
Description
MICRO BORING TOOLS

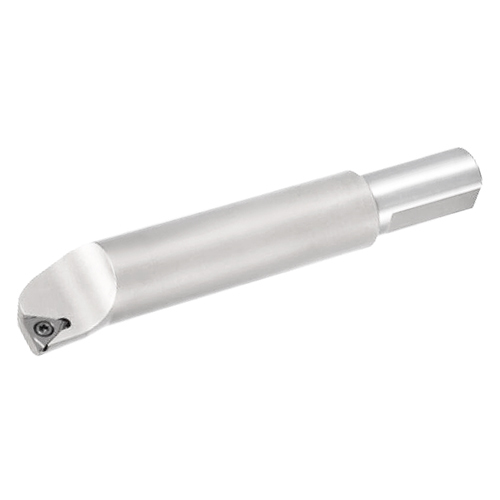

DBJ10/12/16 Micro Boring Bar

Features:

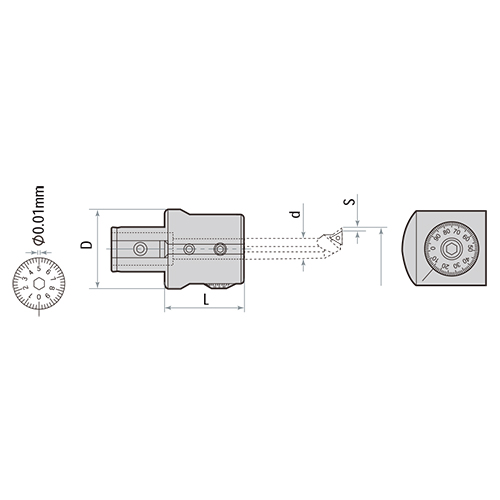

* CBH boring head loaded opposite direction can process boring machining.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.

DBJ10/12/16 Micro Boring Bar

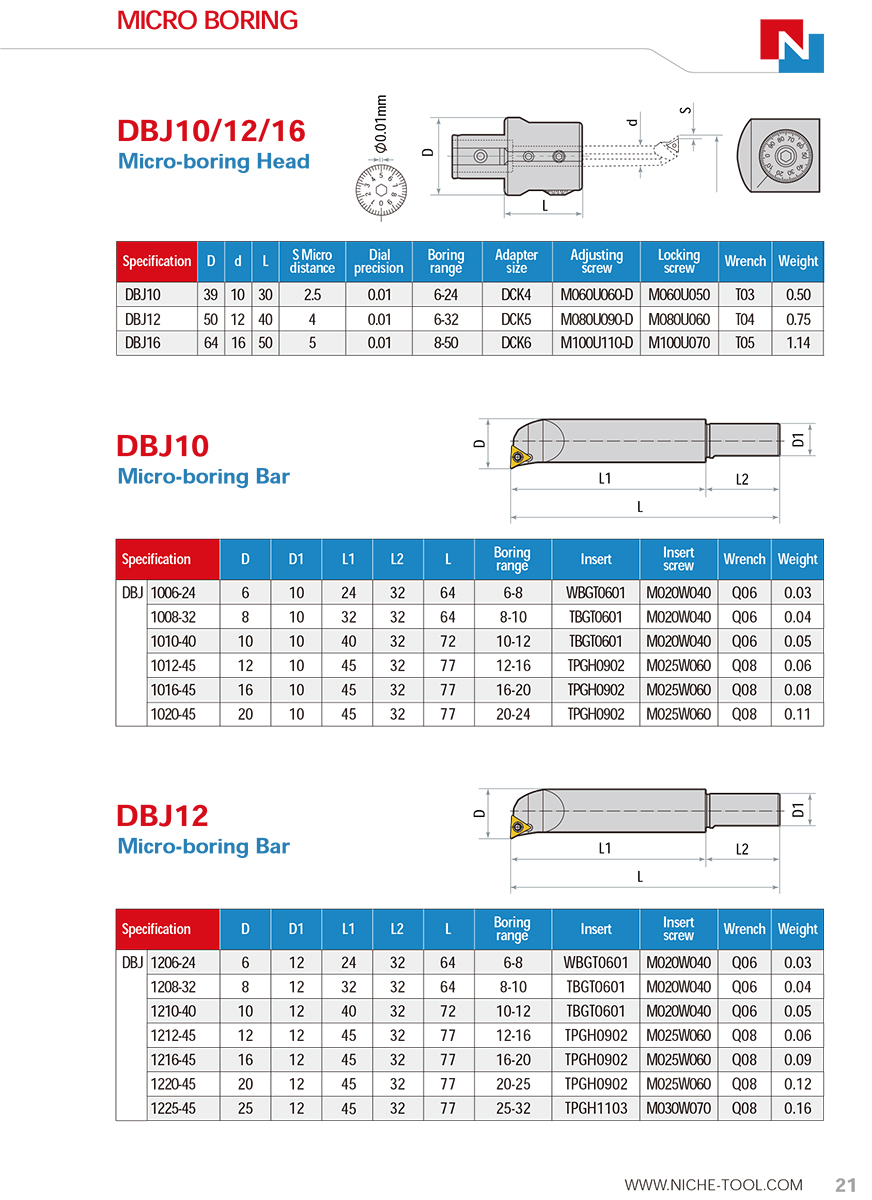

DBJ10 Micro Boring Bar
 Specification

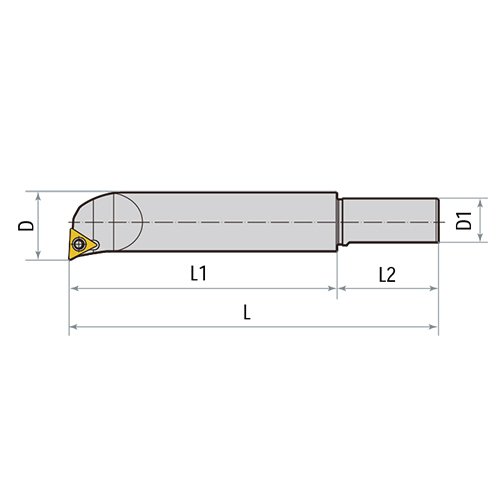

 D D1 L1 L2 L Boring
range		 Insert Insert
Screw		 Wrench  Weight
DBJ 1006-24 6 10 24 32 64 6-8 WBGT0601 M020W040 Q06 0.03
1008-32 8 10 32 32 64 8-10 TBGT0601 M020W040 Q06 0.04
1010-40 10 10 40 32 72 10-12 TBGT0601 M020W040 Q06 0.05
1012-45 12 10 45 32 77 12-16 TBGT0902 M025W060 Q08 0.06
1016-45 16 10 45 32 77 16-20 TBGT0902 M025W060 Q08 0.08
1020-45 20 10 45 32 77 20-24 TBGT0902 M025W060 Q08 0.11

DBJ12 Micro Boring Bar
 Specification
 D D1 L1 L2 L Boring
range		 Insert Insert
Screw		 Wrench  Weight
DBJ 1206-24 6 12 24 32 64 6-8 WBGT0601 M020W040 Q06 0.03
1208-32 8 12 32 32 64 8-10 TBGT0601 M020W040 Q06 0.04
1210-40 10 12 40 32 72 10-12 TBGT0601 M020W040 Q06 0.05
1212-45 12 12 45 32 77 12-16 TPGH0902 M025W060 Q08 0.06
1216-45 16 12 45 32 77 16-20 TPGH0902 M025W060 Q08 0.09
1220-45 20 12 45 32 77 20-25 TPGH0902 M025W060 Q08 0.12
1225-45 25 12 45 32 77 25-32 TPGH1103 M030W070 Q08 0.16

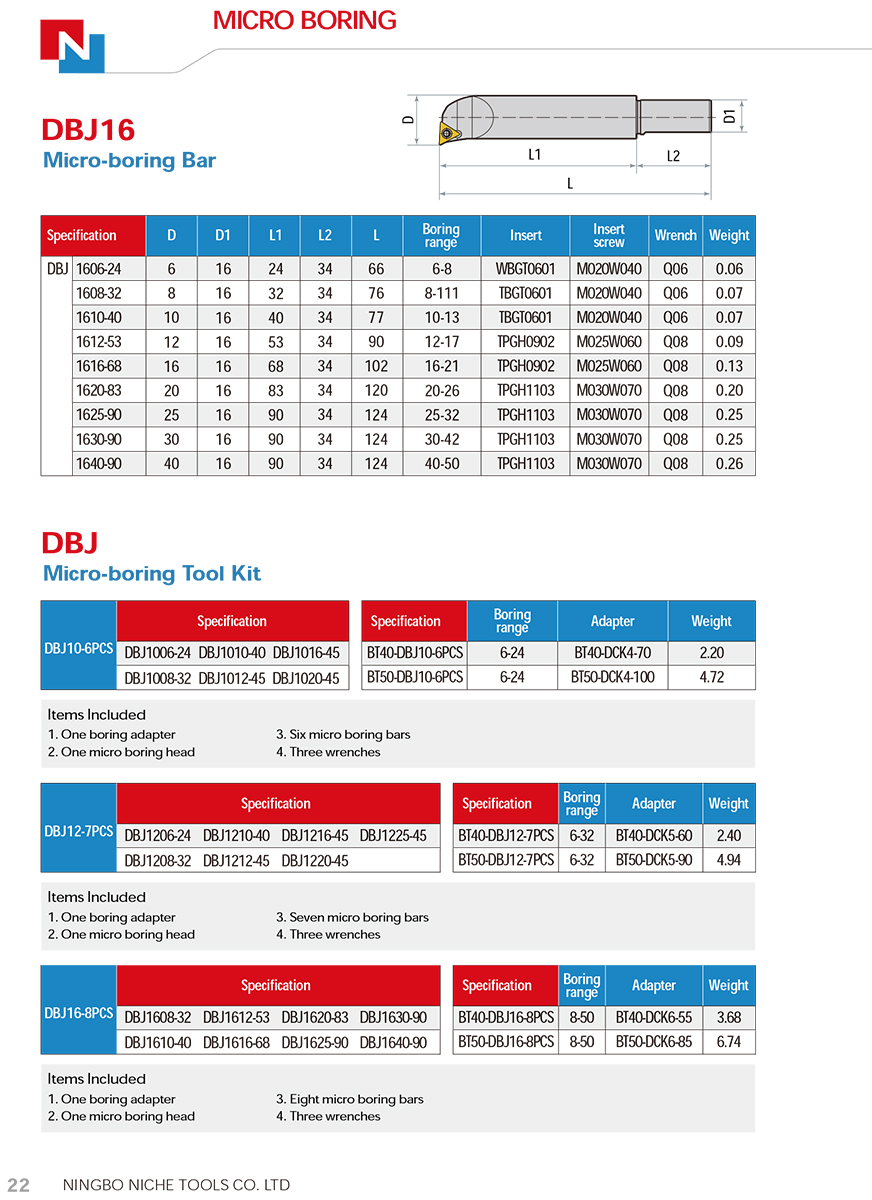

DBJ16 Micro Boring Bar
 Specification
 D D1 L1 L2 L Boring
range		 Insert Insert
Screw		 Wrench  Weight
DBJ 1606-24 6 16 24 34 66 6-8 WBGT0601 M020W040 Q06 0.06
1608-32 8 16 32 34 76 8-111 TBGT0601 M020W040 Q06 0.07
1610-40 10 16 40 34 77 10-13 TBGT0601 M020W040 Q06 0.07
1612-53 12 16 53 34 90 12-17 TBGH0902 M025W060 Q08 0.09
1616-68 16 16 68 34 102 16-21 TBGH0902 M025W060 Q08 0.13
1620-83 20 16 83 34 120 20-26 TBGT1103 M030W070 Q08 0.20
1625-90 25 16 90 34 124 25-32 TBGT1103 M030W070 Q08 0.25
1630-90 30 16 90 34 124 30-42 TBGT1103 M030W070 Q08 0.25
1640-90 40 16 90 34 124 40-50 TBGT1103 M030W070 Q08 0.26
