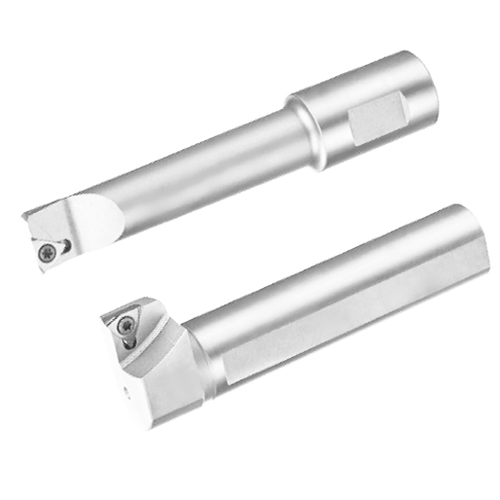

DBJ20 Micro Boring Bar
DBJ20 Micro Boring Bar DBJ20 Micro Boring Bar DBJ20 Micro Boring Bar DBJ20 Micro Boring Bar DBJ20 Micro Boring Bar DBJ20 Micro Boring Bar
  • DBJ20 Micro Boring Bar
  • DBJ20 Micro Boring Bar

DBJ20 Micro Boring Bar

Item No.: DBJ20 Micro Boring Bar
* CBH boring head loaded opposite direction can process boring machining.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
Add to Inquiry
Description
Description
MICRO BORING TOOLS

DBJ20 Micro Boring Bar

Features:
* CBH boring head loaded opposite direction can process boring machining.
* Each boring head has three different size cartridges for different boring range.
* Formachining blind hole with insert angle 3°can avoid the impact to the end surface.
* Cartridge could be mounted in opposite direction for back boring.
* Higher rigidity and better working performance are provided by close connection between cartridge and boring head.
* All DCK-CBH micro boring tools have internal cooling design which improve surface roughness and inserts tool life.

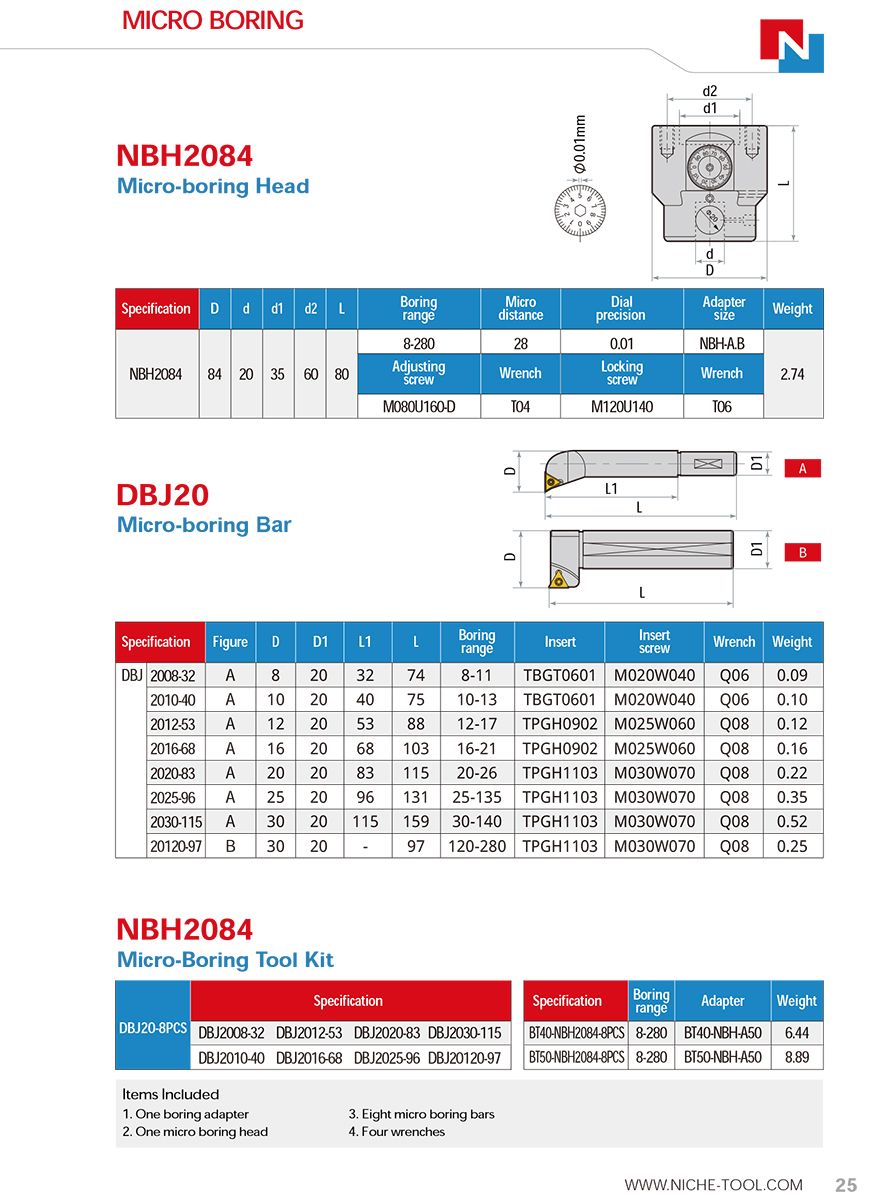

DBJ20 Micro Boring Bar

 Specification

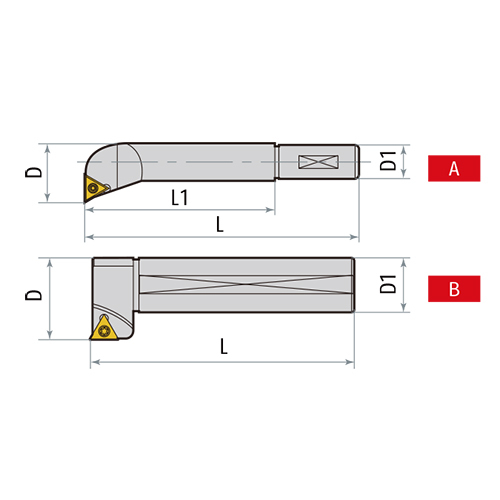

 Figure D D1 L1 L Boring
range		 Insert Insert
screw		 Wrench Weight
DBJ 2008-32 A 8 20 32 74 8-11 TPGT0601 M020W040 Q06 0.09
2010-40 A 10 20 40 75 10-13 TPGT0601 M020W040
 Q06 0.10
2012-53 A 12 20 53 88 12-17 TPGH0902 M025W060
 Q08 0.12
2016-68 A 16 20 68 103 16-21 TPGH0902 M025W060
 Q08 0.16
2020-83 A 20 20 83 115 20-26 TPGH1103 M030W070
 Q08 0.22
2025-96 A 25 20 96 131 25-135 TPGH1103 M030W070 Q08 0.35
2030-115 A 30 20 115 159 30-140 TPGH1103 M030W070 Q08 0.52
20120-97 B 30 20 - 97 120-280 TPGH1103 M030W070 Q08 0.25
