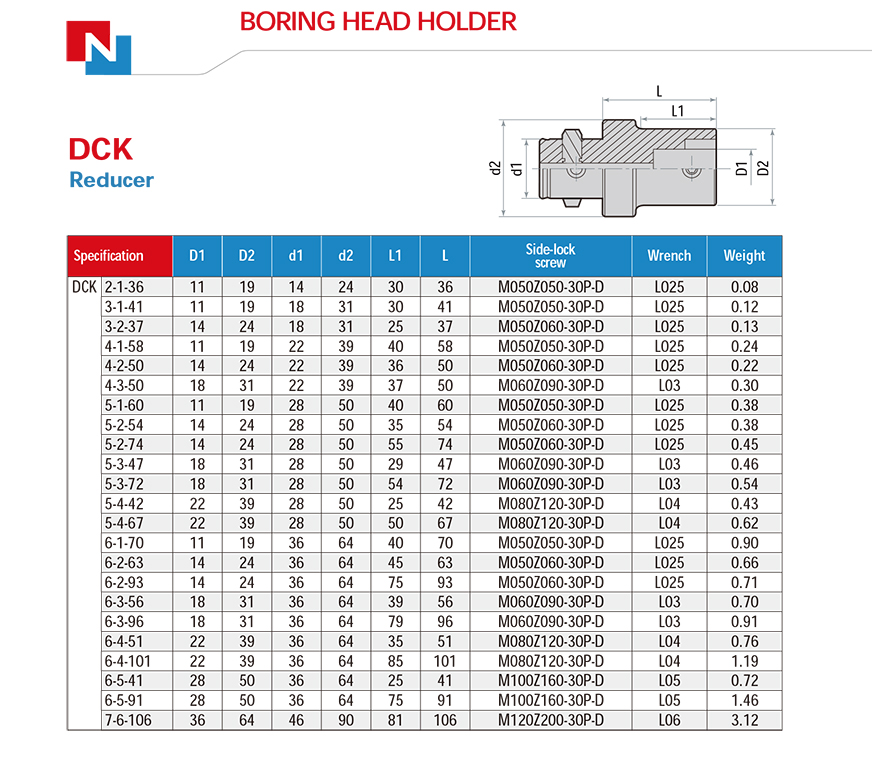

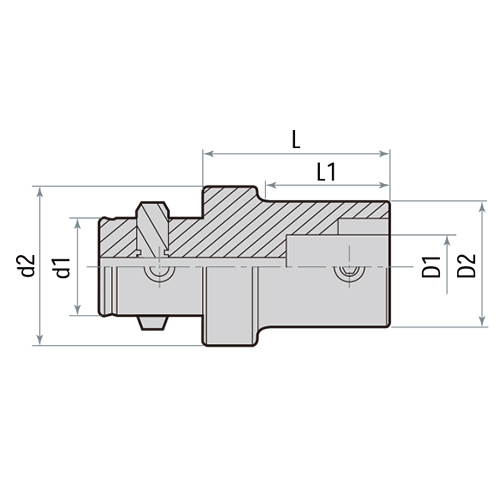

| Specification | D1 | D2 | d1 | d2 | L1 | L | Side-lock screw |
Wrench | Weight | |
| DCK |
2-1-36 | 11 | 19 | 14 | 24 | 30 | 36 | M050Z050-30P-D | L025 | 0.08 |
| 3-1-41 | 11 | 19 | 18 | 31 | 30 | 41 | M050Z050-30P-D | L025 | 0.12 | |
| 3-2-37 | 14 | 24 | 18 | 31 | 25 | 37 | M050Z060-30P-D | L025 | 0.13 | |
| 4-1-58 | 11 | 19 | 22 | 39 | 40 | 58 | M050Z050-30P-D | L025 | 0.24 | |
| 4-2-50 | 14 | 24 | 22 | 39 | 36 | 50 | M050Z060-30P-D |
L025 | 0.22 | |
| 4-3-50 | 18 | 31 | 22 | 39 | 37 | 50 | M060Z090-30P-D |
L03 | 0.30 | |
| 5-1-60 | 11 | 19 | 28 | 50 | 40 | 60 | M050Z050-30P-D |
L025 | 0.38 | |
| 5-2-54 | 14 | 24 | 28 | 50 | 35 | 54 | M050Z060-30P-D |
L025 | 0.38 | |
| 5-2-74 | 14 | 24 | 28 | 50 | 55 | 74 | M050Z060-30P-D |
L025 | 0.45 | |
| 5-3-47 | 18 | 31 | 28 | 50 | 29 | 47 | M060Z090-30P-D |
L03 | 0.46 | |
| 5-3-72 | 18 | 31 | 28 | 50 | 54 | 72 | M060Z090-30P-D |
L03 | 0.54 | |
| 5-4-42 | 22 | 39 | 28 | 50 | 25 | 42 | M080Z120-30P-D |
L04 | 0.43 | |
| 5-4-67 | 22 | 39 | 28 | 50 | 50 | 67 | M080Z120-30P-D |
L04 | 0.62 | |
| 6-1-70 | 11 | 19 | 36 | 64 | 40 | 70 | M050Z050-30P-D |
L025 | 0.90 | |
| 6-2-63 | 14 | 24 | 36 | 64 | 45 | 63 | M050Z060-30P-D |
L025 | 0.66 | |
| 6-2-93 | 14 | 24 | 36 | 64 | 75 | 93 | M050Z050-30P-D |
L025 | 0.71 | |
| 6-3-56 | 18 | 31 | 36 | 64 | 39 | 56 | M060Z090-30P-D |
L03 | 0.70 | |
| 6-3-96 | 18 | 31 | 36 | 64 | 79 | 96 | M060Z090-30P-D |
L03 | 0.91 | |
| 6-4-51 | 22 | 39 | 36 | 64 | 35 | 51 | M080Z120-30P-D |
L04 | 0.76 | |
| 6-4-101 | 22 | 39 | 36 | 64 | 85 | 101 | M080Z120-30P-D | L04 | 1.19 | |
| 6-5-41 | 28 | 50 | 36 | 64 | 25 | 41 | M100Z160-30P-D | L05 | 0.72 | |
| 6-5-91 | 28 | 50 | 36 | 64 | 75 | 91 | M100Z160-30P-D | L05 | 1.46 | |
| 7-6-106 | 36 | 64 | 46 | 90 | 81 | 106 | M120Z200-30P-D |
L06 | 3.12 | |
