SHOULDER MILLING TOOLS

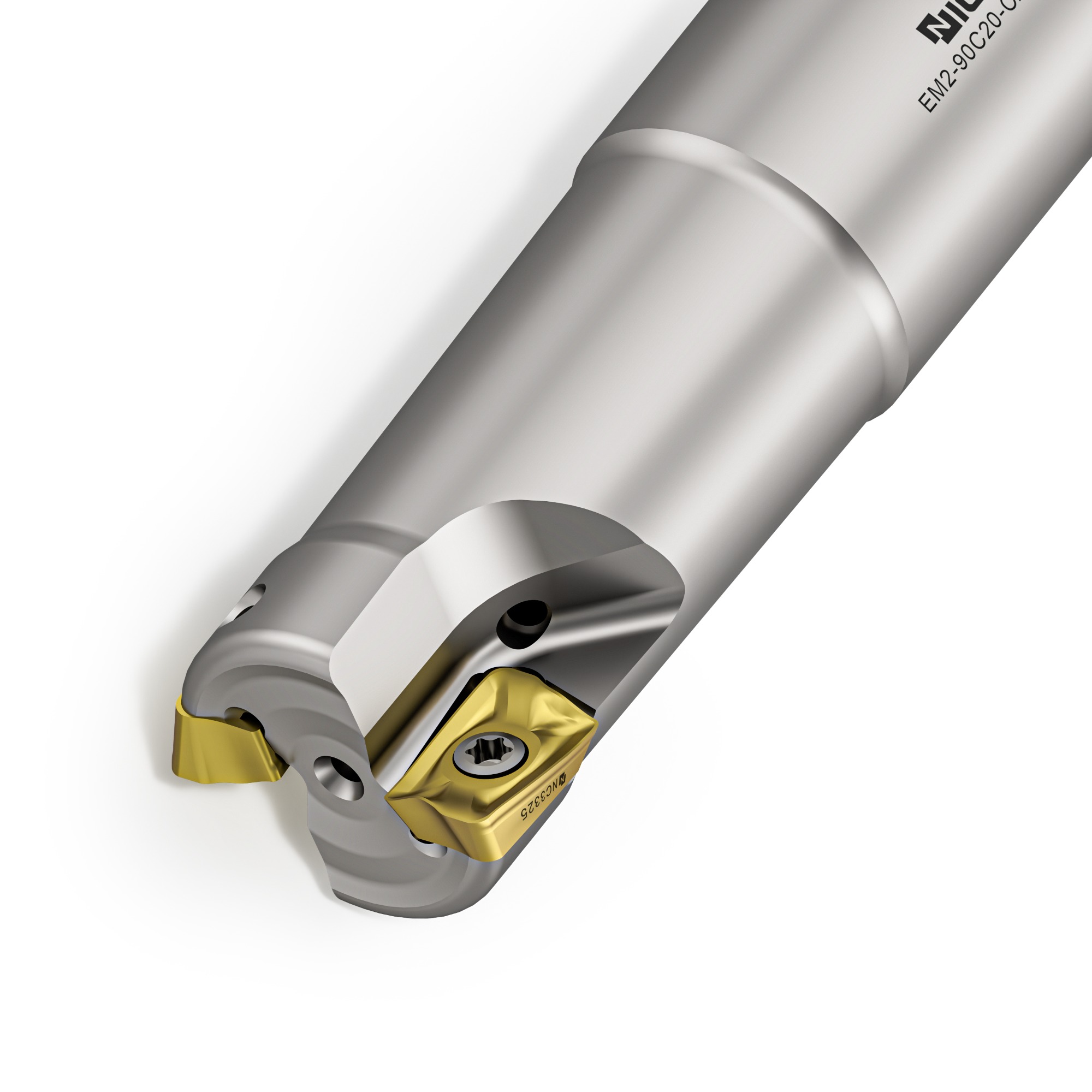

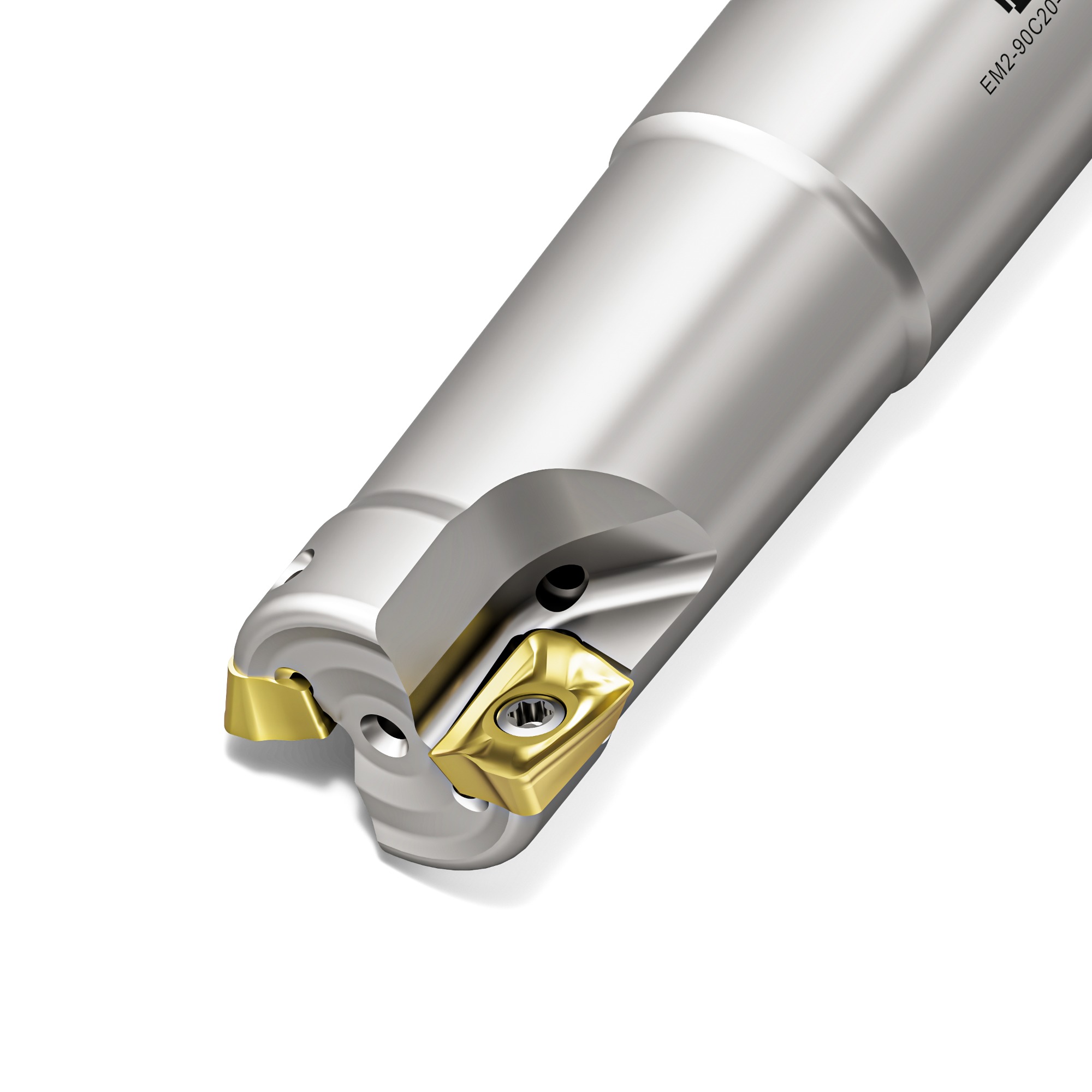

EM2-90C-R390 (END MILL)
Features:
* Diameter Range: Ø16mm-Ø32mm
* Square Shoulder application
* High rigdity

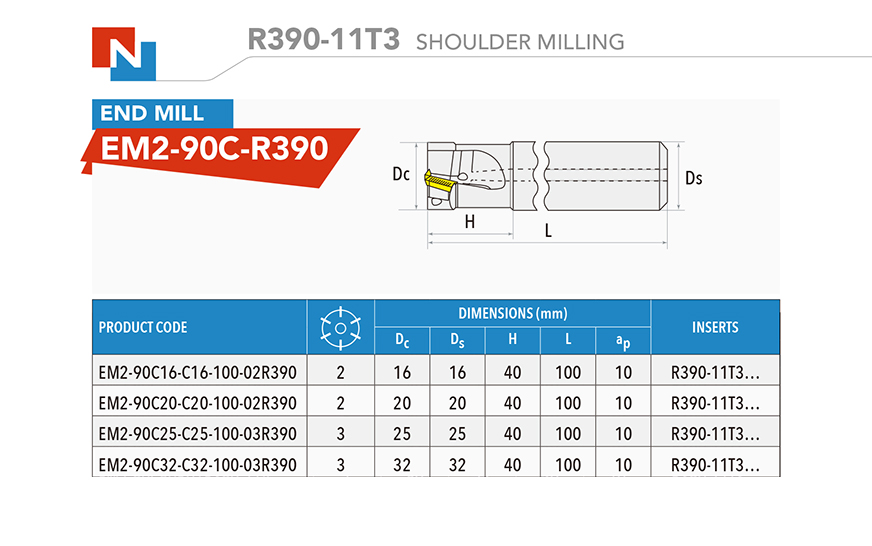

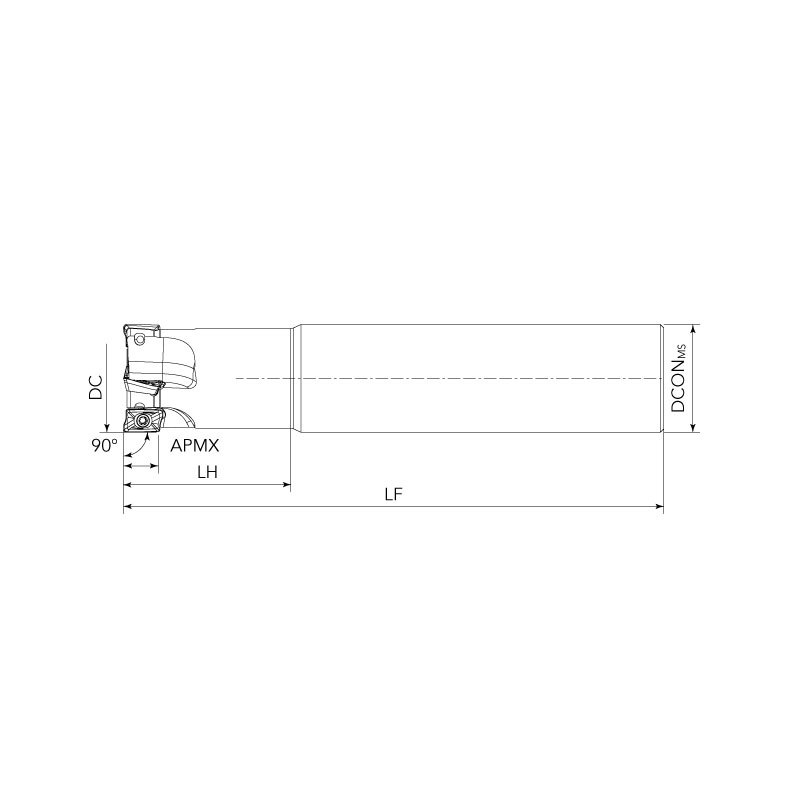

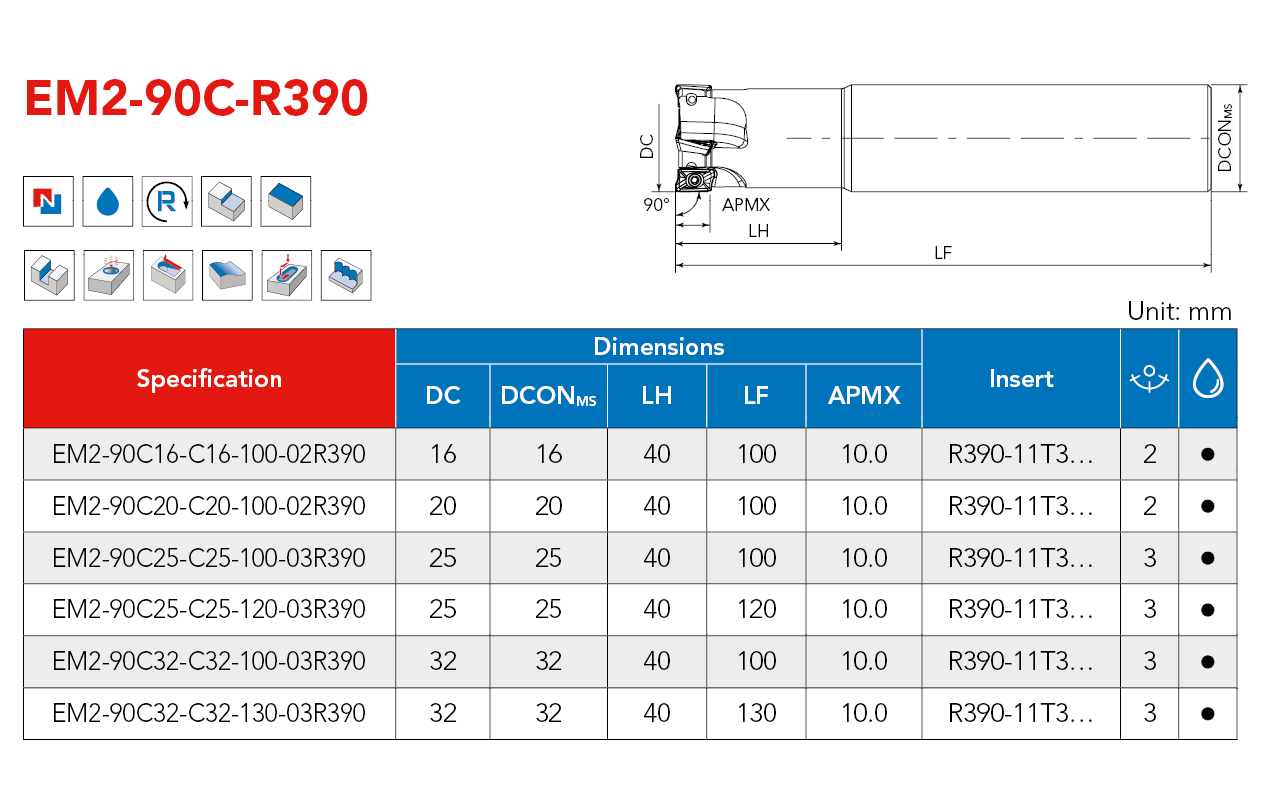

| PRODUCT CODE |
Dimensions (mm) |
INSERT |
FLUTE NO. |
| DC |
DCONMS |
LH |
LF |
APMX |
| EM2-90C16-C16-100-02R390 |
16 |
16 |
40 |
100 |
10.0 |
R390-11T3… |
2 |
| EM2-90C20-C20-100-02R390 |
20 |
20 |
40 |
100 |
10.0 |
R390-11T3… |
2 |
| EM2-90C25-C25-100-03R390 |
25 |
25 |
40 |
100 |
10.0 |
R390-11T3… |
3 |
| EM2-90C25-C25-120-03R390 |
25 |
25 |
40 |
120 |
10.0 |
R390-11T3… |
3 |
| EM2-90C32-C32-100-03R390 |
32 |
32 |
40 |
100 |
10.0 |
R390-11T3… |
3 |
| EM2-90C32-C32-130-03R390 |
32 |
32 |
40 |
130 |
10.0 |
R390-11T3… |
3 |

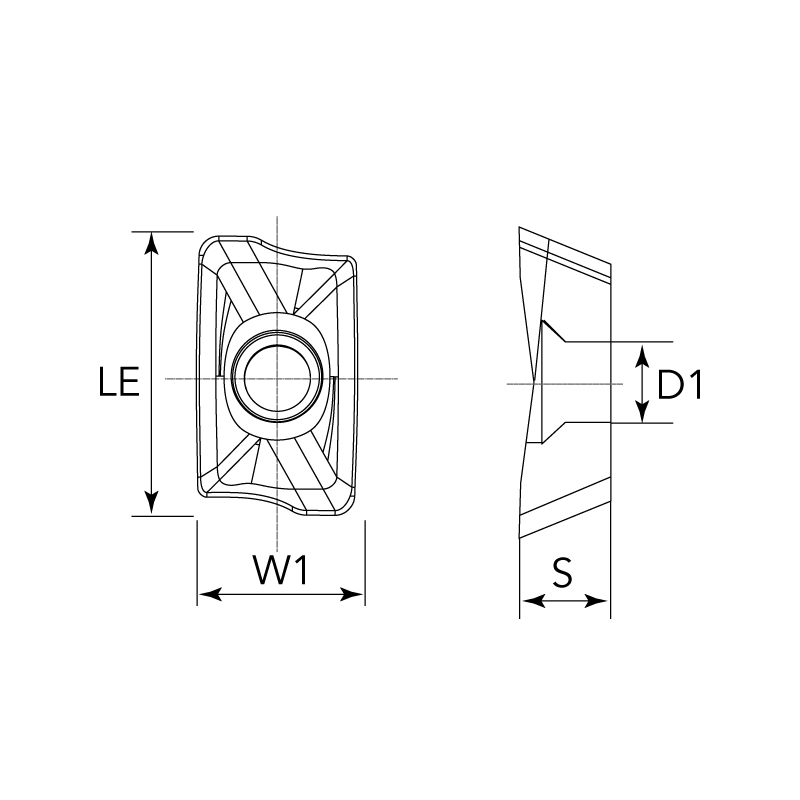

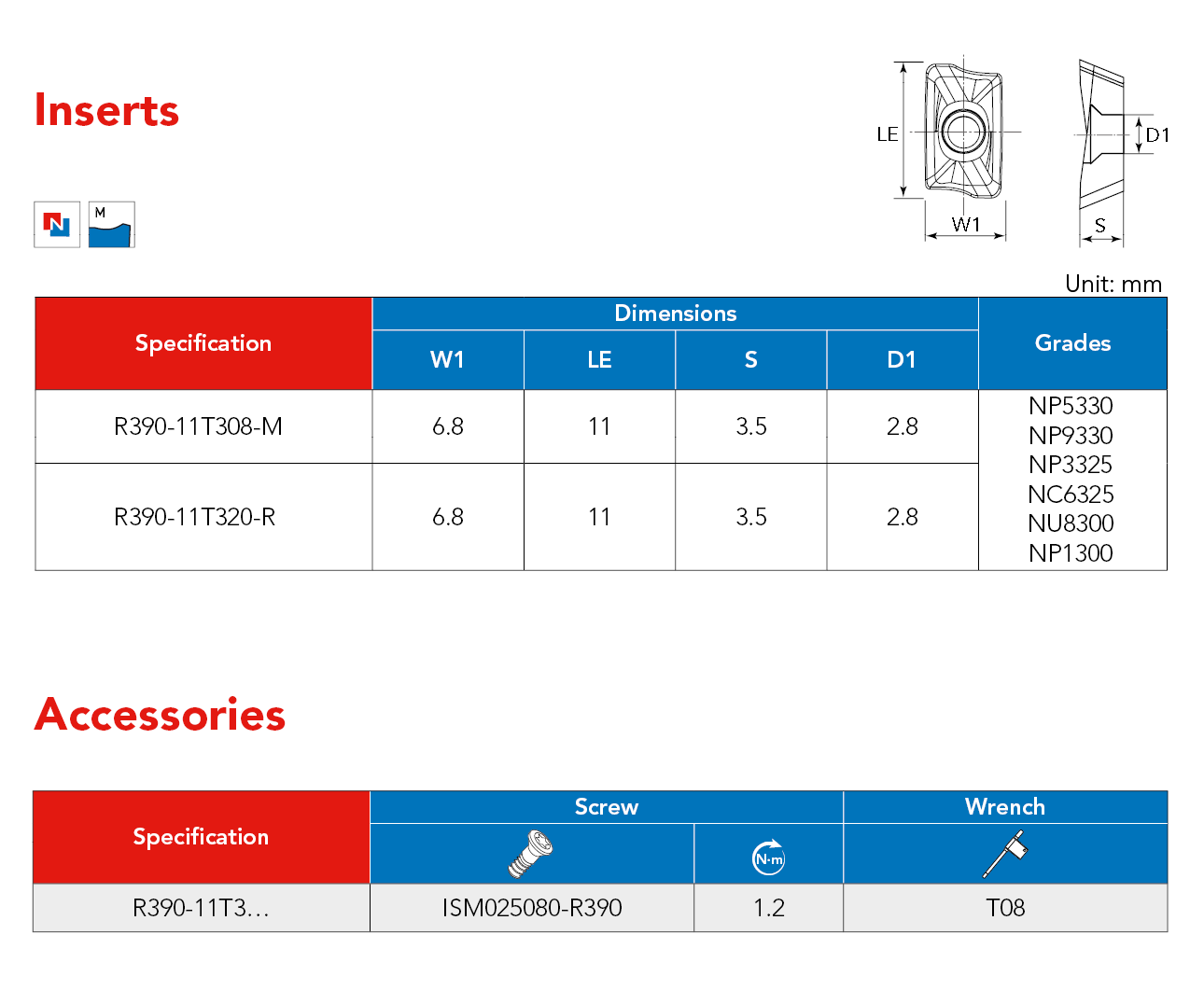

INSERTS
