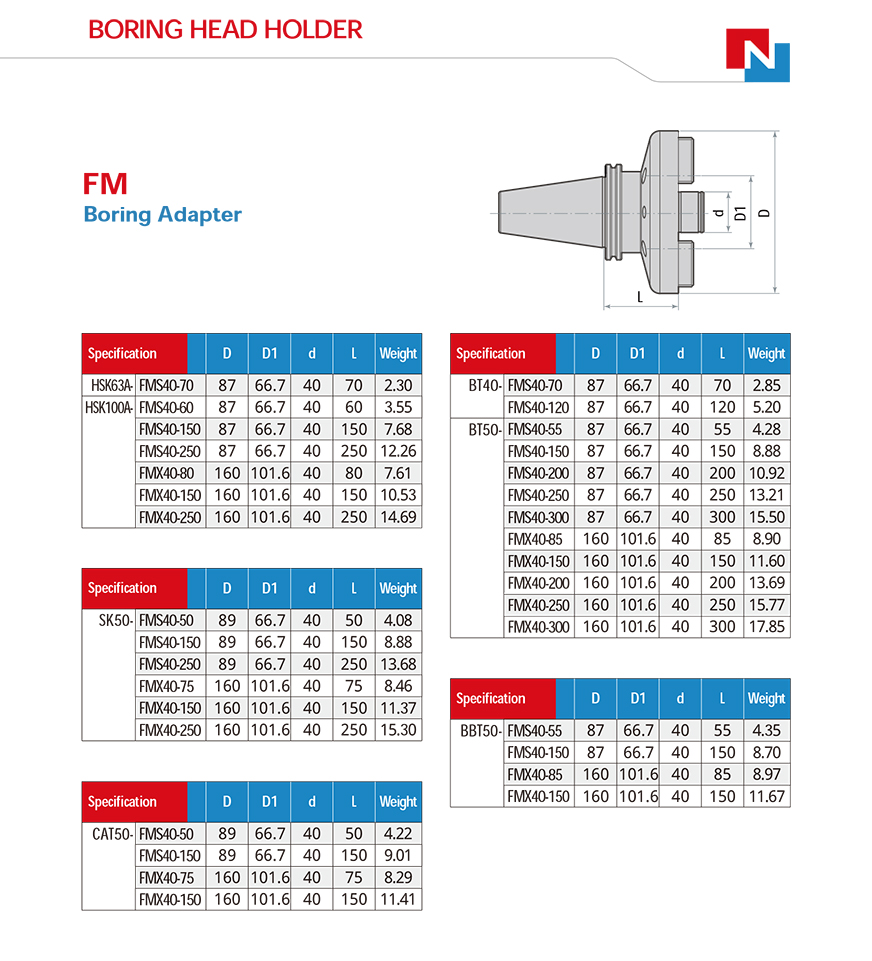

Specification
|

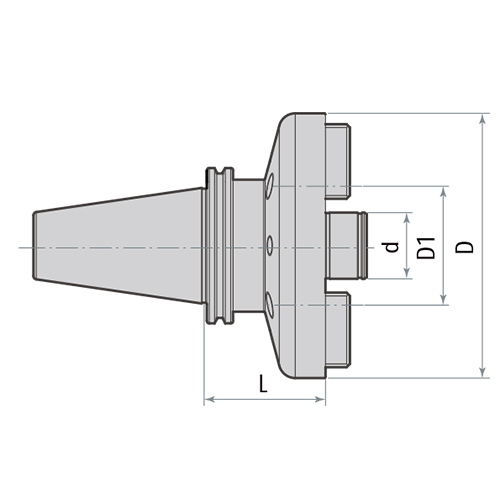

D | D1 | d | L | Weight | |
| HSK63A- | FMS40-70 | 87 | 66.7 | 40 | 70 | 2.30 |
| HSK100A- |
FMS40-60 | 87 | 66.7 | 40 | 60 | 3.55 |
| FMS40-150 |
87 | 66.7 | 40 | 150 | 7.68 | |
| FMS40-250 |
87 | 66.7 | 40 | 250 | 12.26 | |
| FMX40-80 |
160 | 101.6 | 40 | 80 | 7.61 | |
| FMX40-150 |
160 | 101.6 | 40 | 150 | 10.53 | |
| FMX40-250 |
160 | 101.6 | 40 | 250 | 14.69 | |
| SK50- |
FMS40-50 |
89 | 66.7 | 40 | 50 | 4.08 |
| FMS40-150 |
89 | 66.7 | 40 | 150 | 8.88 | |
| FMS40-250 |
89 | 66.7 | 40 | 250 | 13.68 | |
| FMX40-75 |
160 | 101.6 | 40 | 75 | 8.46 | |
| FMX40-150 |
160 | 101.6 | 40 | 150 | 11.37 | |
| FMX40-250 |
160 | 101.6 | 40 | 250 | 15.30 | |
| CAT50- |
FMS40-50 |
89 | 66.7 | 40 | 50 | 4.22 |
| FMS40-150 |
89 | 66.7 | 40 | 150 | 9.01 | |
| FMX40-75 |
160 | 101.6 | 40 | 75 | 8.29 | |
| FMX40-150 |
160 | 101.6 | 40 | 150 | 11.41 | |
| BT40- |
FMS40-70 |
87 | 66.7 | 40 | 70 | 2.85 |
| FMS40-120 |
87 | 66.7 | 40 | 120 | 5.20 | |
| BT50- |
FMS40-55 |
87 | 66.7 | 40 | 55 | 4.28 |
| FMS40-150 |
87 | 66.7 | 40 | 150 | 8.88 | |
| FMS40-200 | 87 | 66.7 | 40 | 200 | 10.92 | |
| FMS40-250 | 87 | 66.7 | 40 | 250 | 13.21 | |
| FMS40-300 | 87 | 66.7 | 40 | 300 | 15.50 | |
| FMX40-85 | 160 | 101.6 | 40 | 85 | 8.90 | |
| FMX40-150 | 160 | 101.6 | 40 | 150 | 11.60 | |
| FMX40-200 | 160 | 101.6 | 40 | 200 | 13.69 | |
| FMX40-250 | 160 | 101.6 | 40 | 250 | 15.77 | |
| FMX40-300 | 160 | 101.6 | 40 | 300 | 17.85 | |
| BBT50- |
FMS40-55 | 87 | 66.7 | 40 | 55 | 4.35 |
| FMS40-150 | 87 | 66.7 | 40 | 150 | 8.70 | |
| FMX40-85 | 160 | 101.6 | 40 | 85 | 8.97 | |
| FMX40-150 | 160 | 101.6 | 40 | 150 | 11.67 | |
