SHOULDER MILLING TOOLS

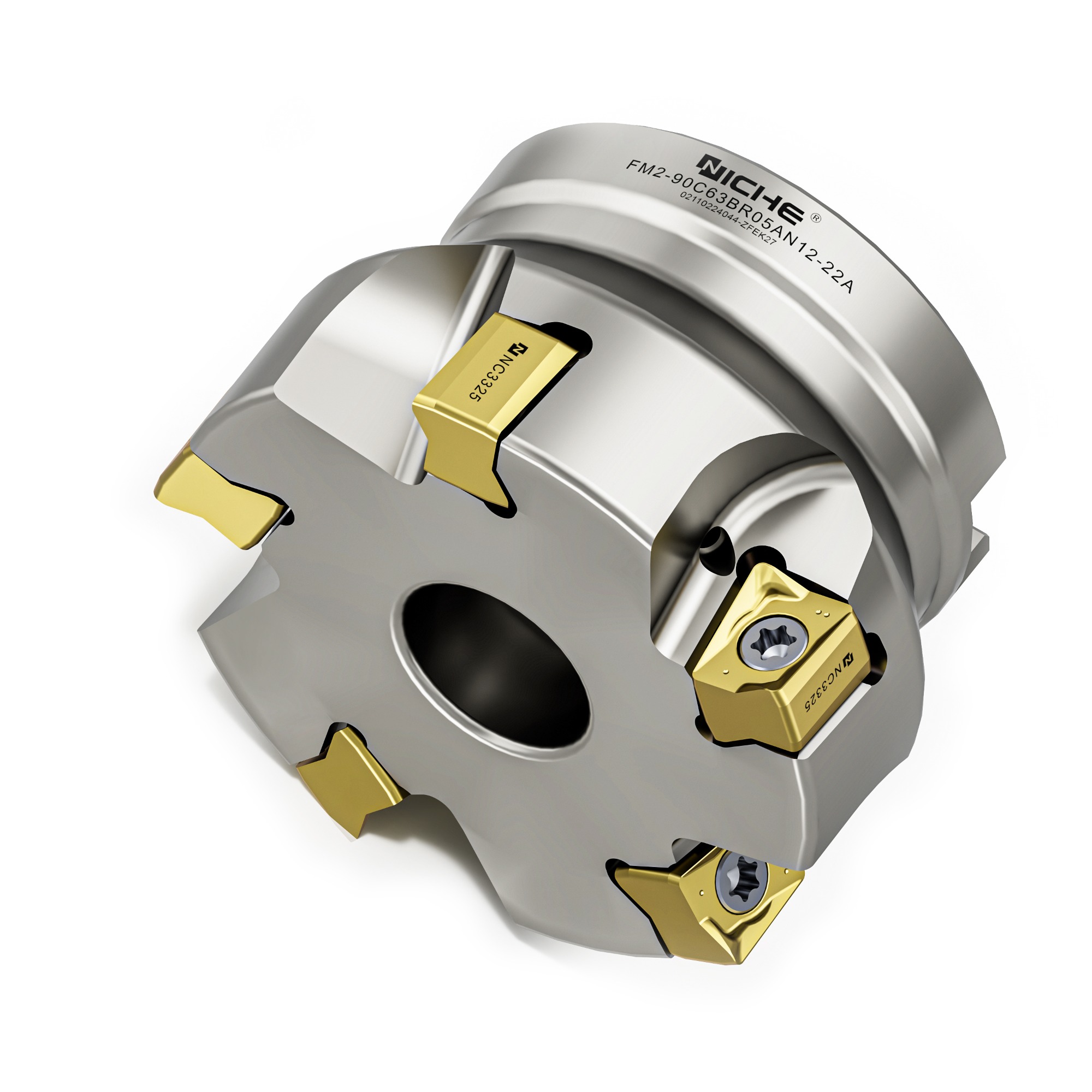

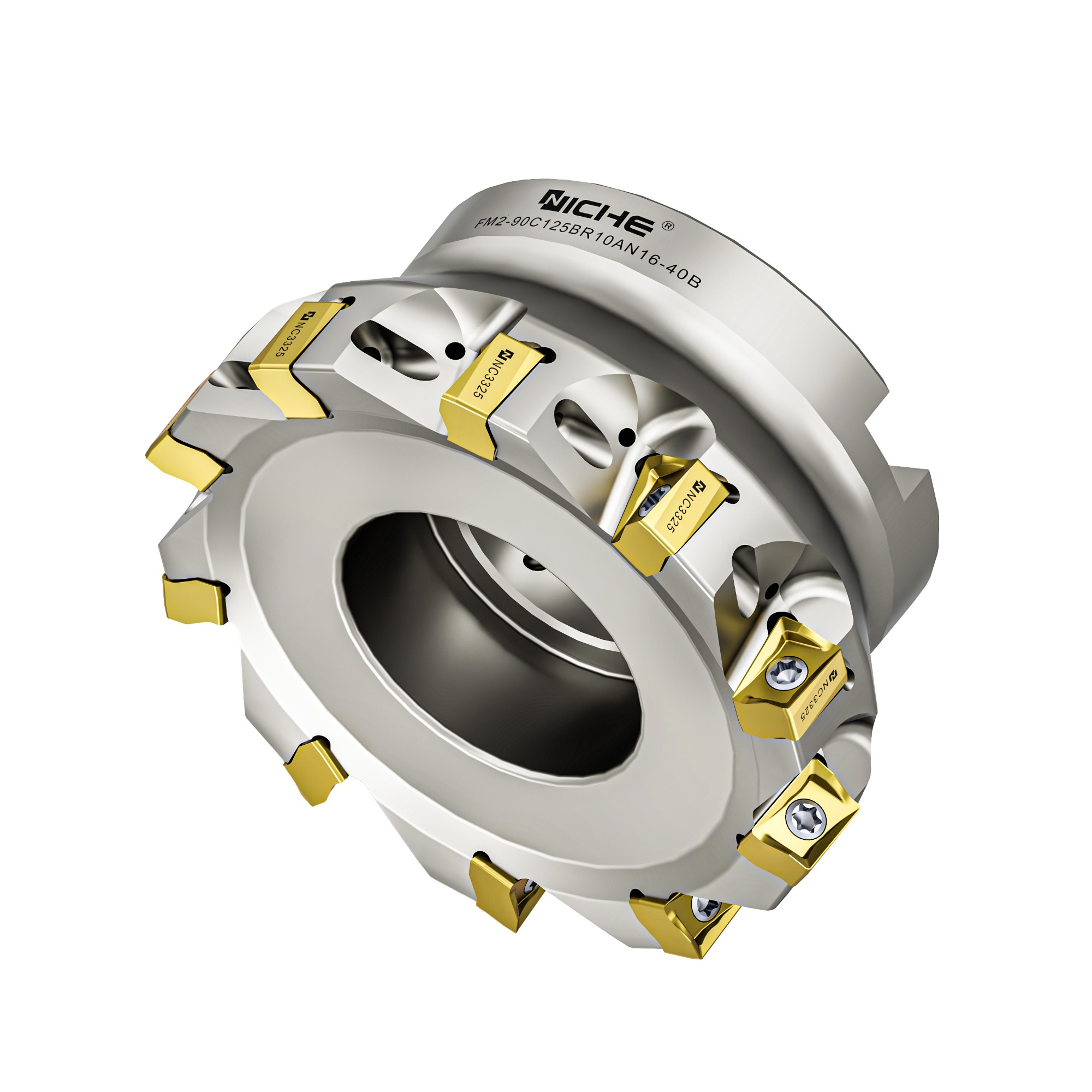

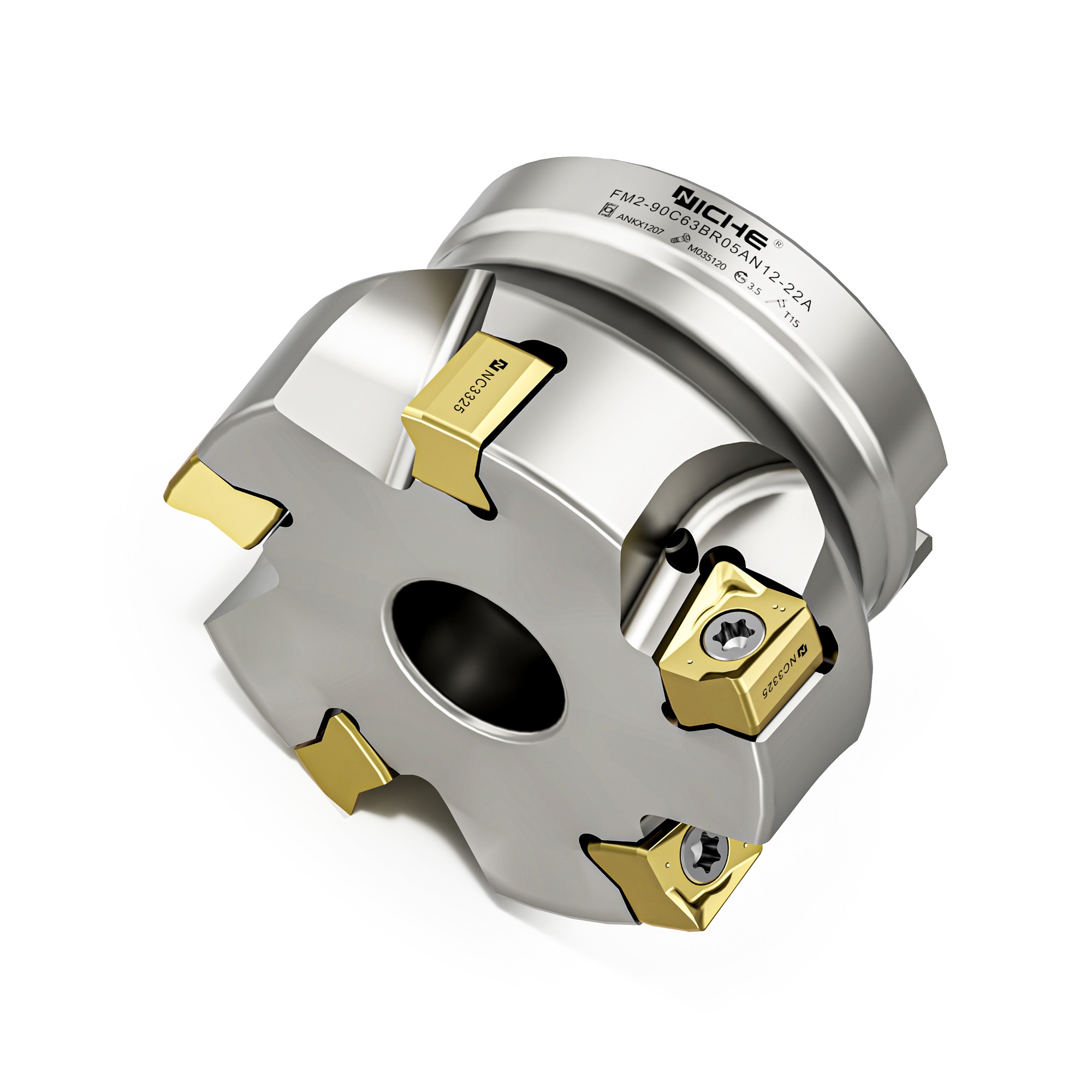

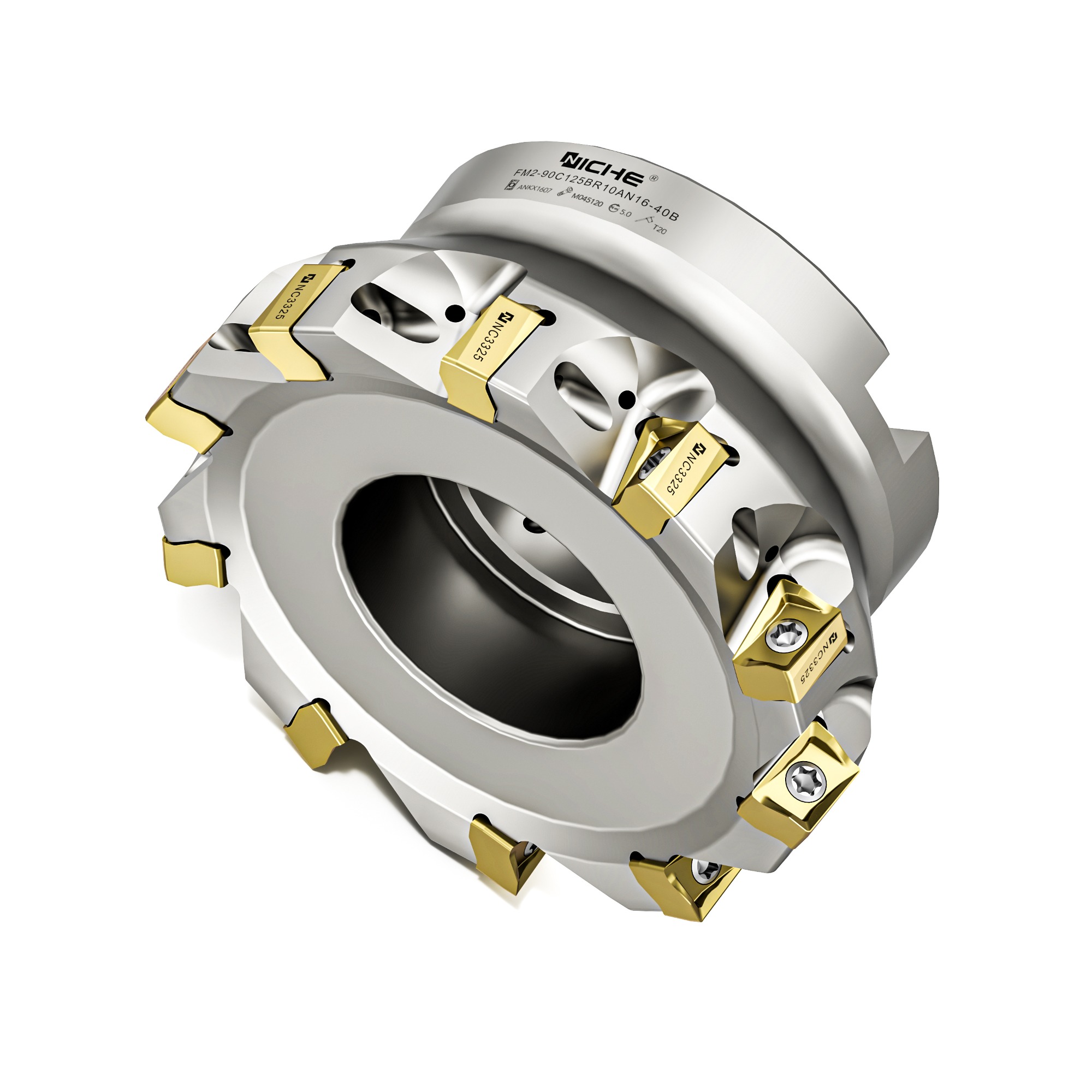

FM2-90C-AN09/12/16 (FACE MILL)
Features:
* Diameter Range: Ø40mm-Ø125mm
* Square Shoulder application
* Double sided negative insert with positive cutting
* High material removal rate

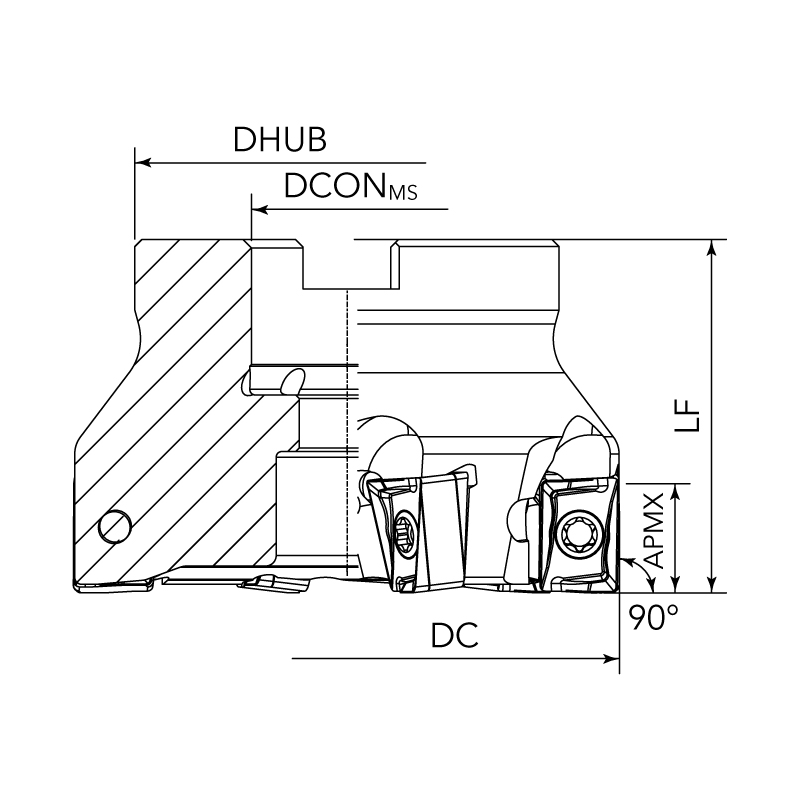

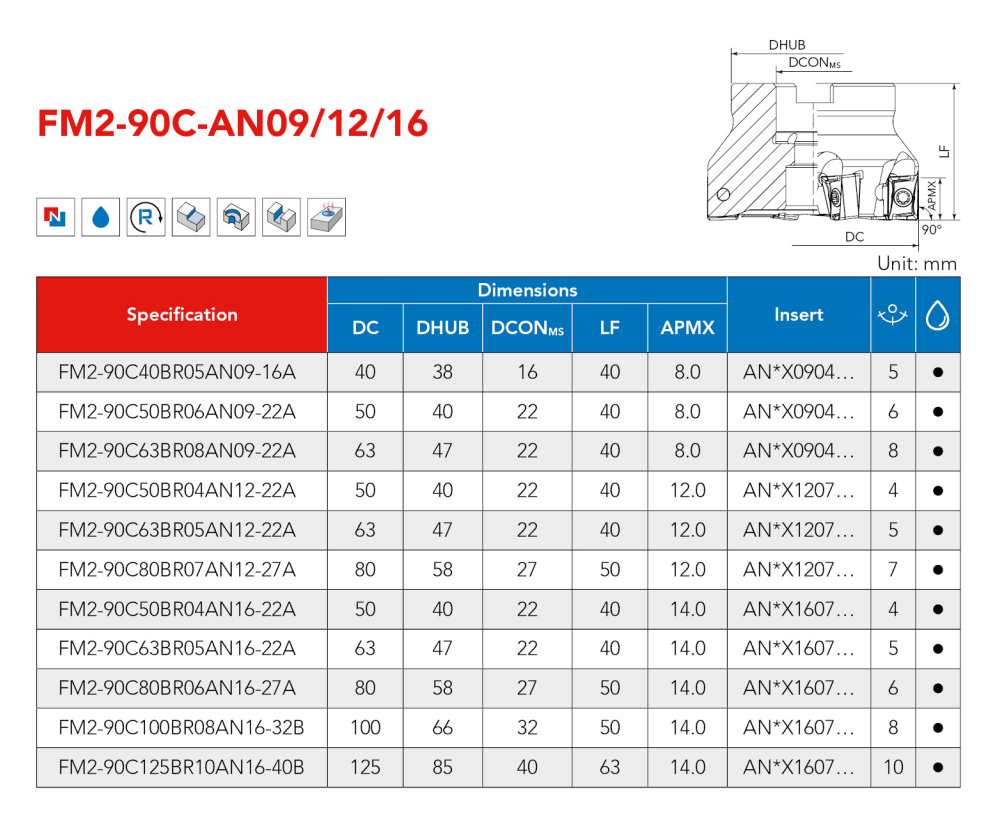

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DHUB |
DCONMS |
LF |
APMX |
| FM2-90C40BR05AN09-16A |
40 |
38 |
16 |
40 |
8.0 |
AN*X0904… |
5 |
| FM2-90C50BR06AN09-22A |
50 |
40 |
22 |
40 |
8.0 |
AN*X0904… |
6 |
| FM2-90C63BR08AN09-22A |
63 |
47 |
22 |
40 |
8.0 |
AN*X0904… |
8 |
| FM2-90C50BR04AN12-22A |
50 |
40 |
22 |
40 |
12.0 |
AN*X1207… |
4 |
| FM2-90C63BR05AN12-22A |
63 |
47 |
22 |
40 |
12.0 |
AN*X1207… |
5 |
| FM2-90C80BR07AN12-27A |
80 |
58 |
27 |
50 |
12.0 |
AN*X1207… |
7 |
| FM2-90C50BR04AN16-22A |
50 |
40 |
22 |
40 |
14.0 |
AN*X1607… |
4 |
| FM2-90C63BR05AN16-22A |
63 |
47 |
22 |
40 |
14.0 |
AN*X1607… |
5 |
| FM2-90C80BR06AN16-27A |
80 |
58 |
27 |
50 |
14.0 |
AN*X1607… |
6 |
| FM2-90C100BR08AN16-32B |
100 |
66 |
32 |
50 |
14.0 |
AN*X1607… |
8 |
| FM2-90C125BR10AN16-40B |
125 |
85 |
40 |
63 |
14.0 |
AN*X1607… |
10 |

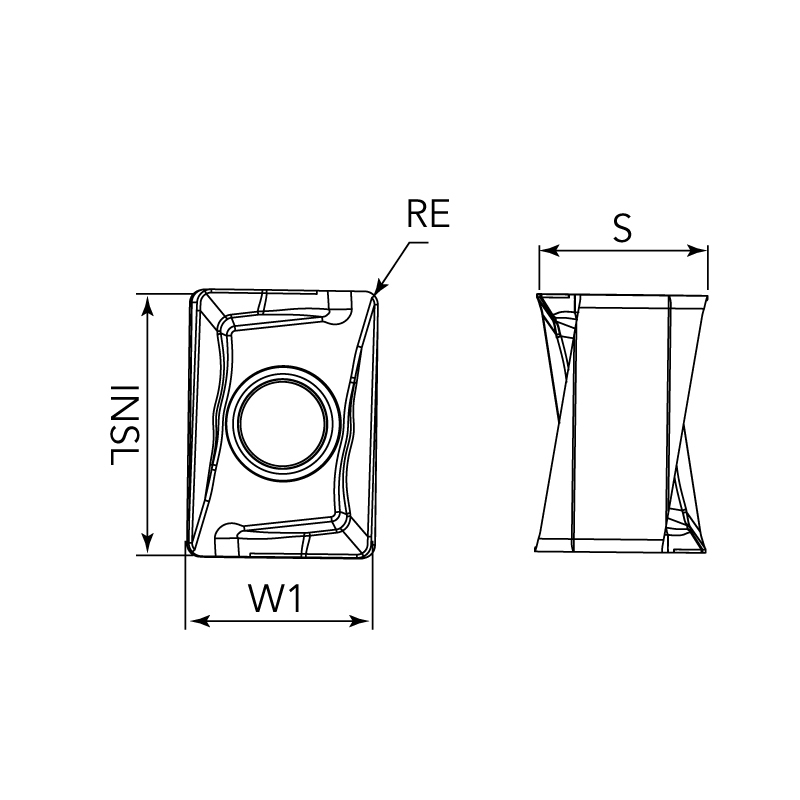

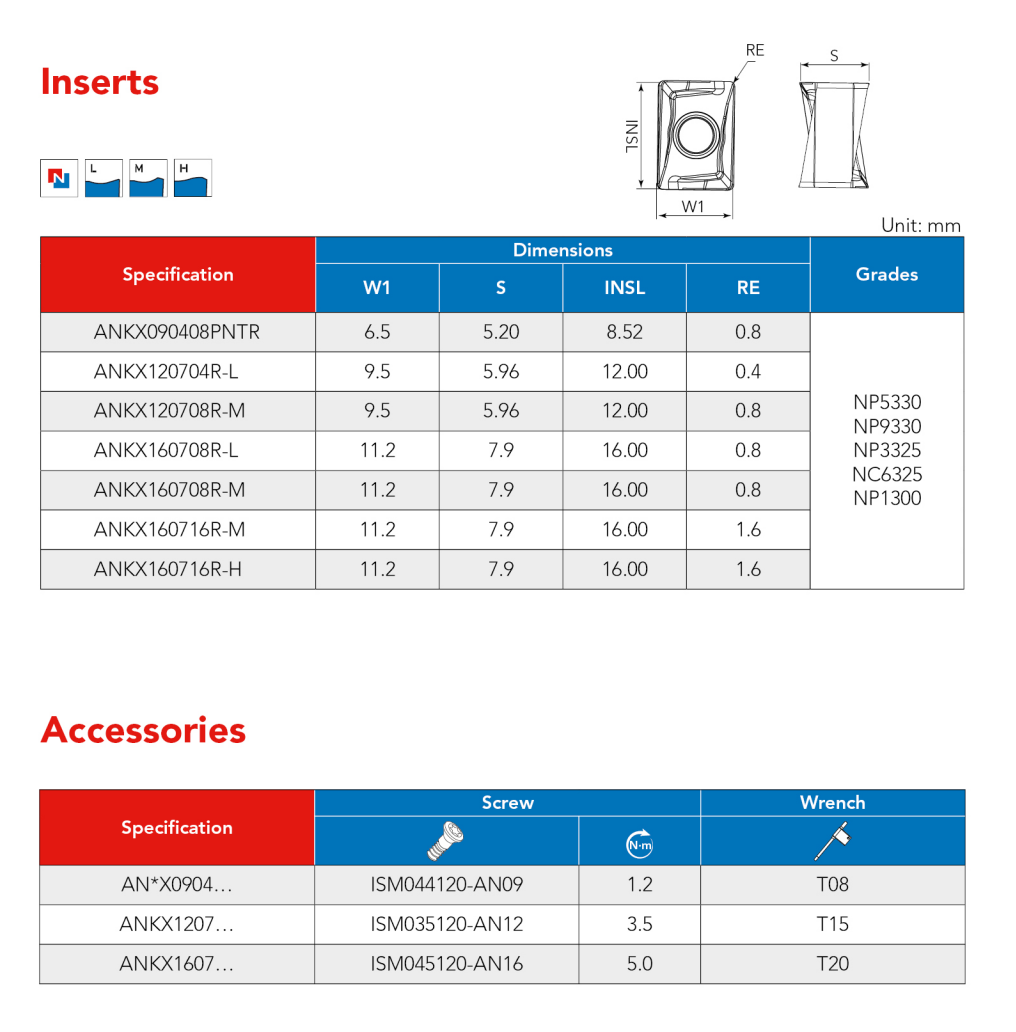

INSERTS
