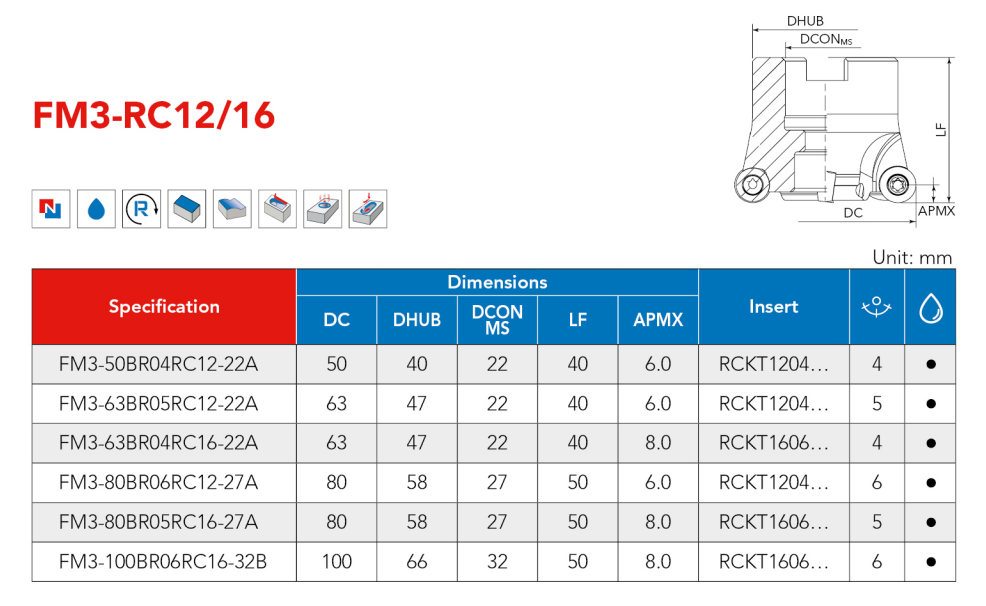

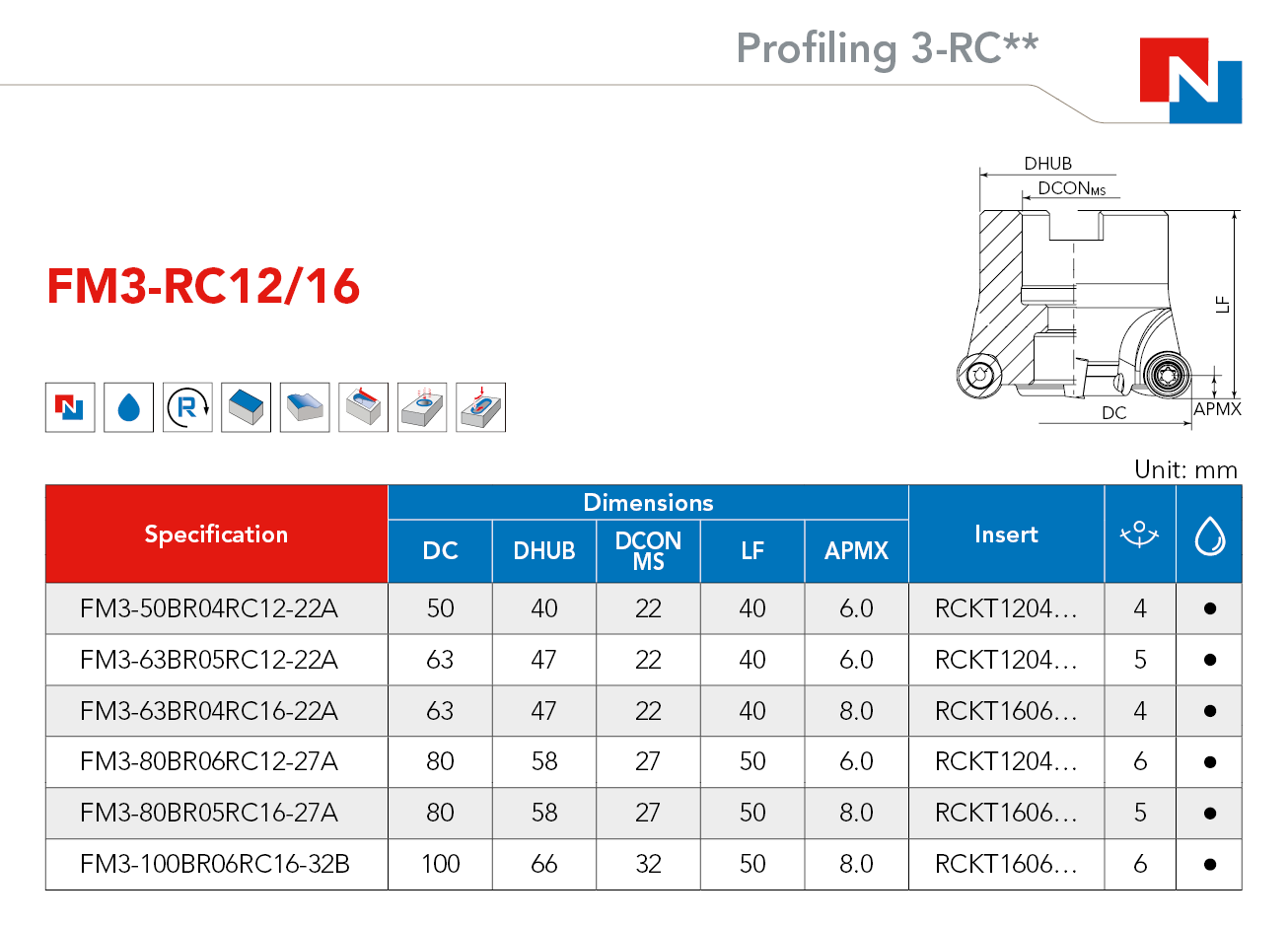

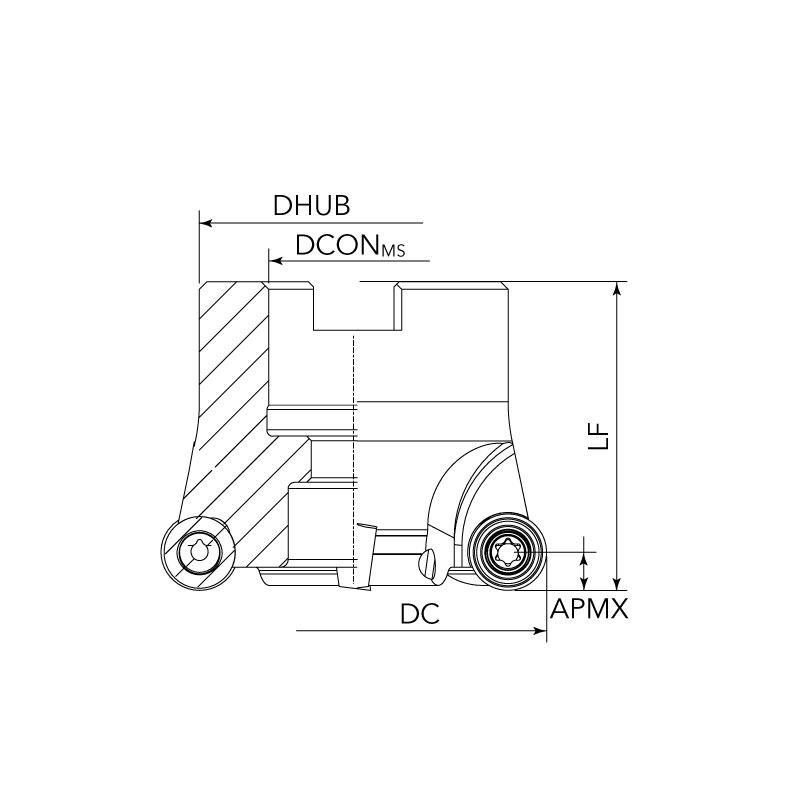

| PRODUCT CODE | Dimensions (mm) | INSERTS | FLUTE NO. | ||||

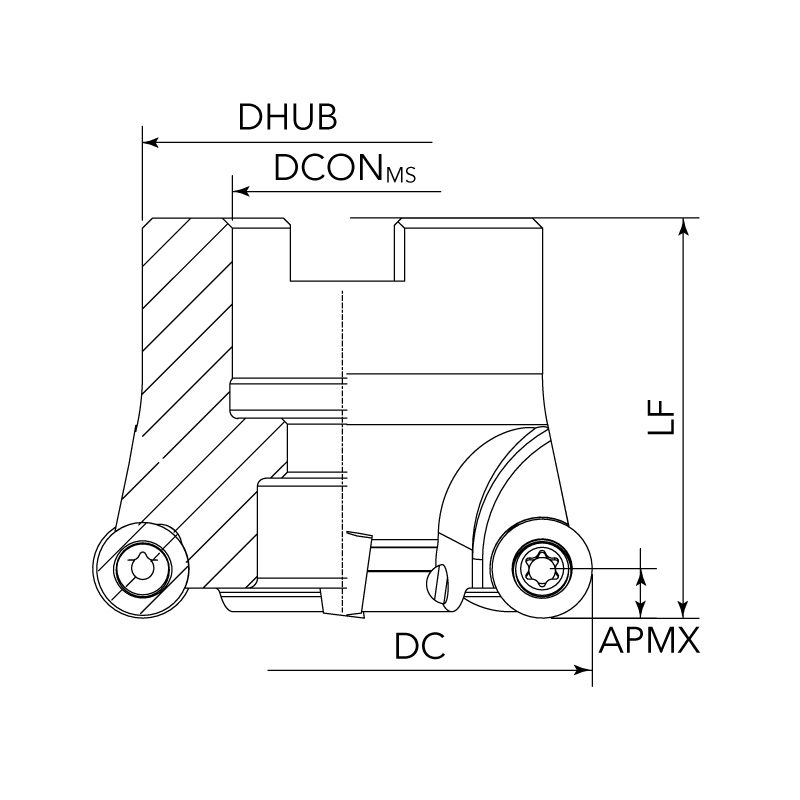

| DC | DHUB | DCONMS | LF | APMX | |||
| FM3-50BR04RC12-22A | 50 | 40 | 22 | 40 | 6.0 | RCKT1204… | 4 |
| FM3-63BR05RC12-22A | 63 | 47 | 22 | 40 | 6.0 | RCKT1204… | 5 |
| FM3-63BR04RC16-22A | 63 | 47 | 22 | 40 | 6.0 | RCKT1606… | 4 |
| FM3-80BR06RC12-27A | 80 | 58 | 27 | 50 | 6.0 | RCKT1204… | 6 |
| FM3-80BR05RC16-27A | 80 | 58 | 27 | 50 | 6.0 | RCKT1606… | 5 |
| FM3-100BR06RC16-32B | 100 | 66 | 32 | 50 | 6.0 | RCKT1606… | 6 |
