PROFILE MILLING TOOLS

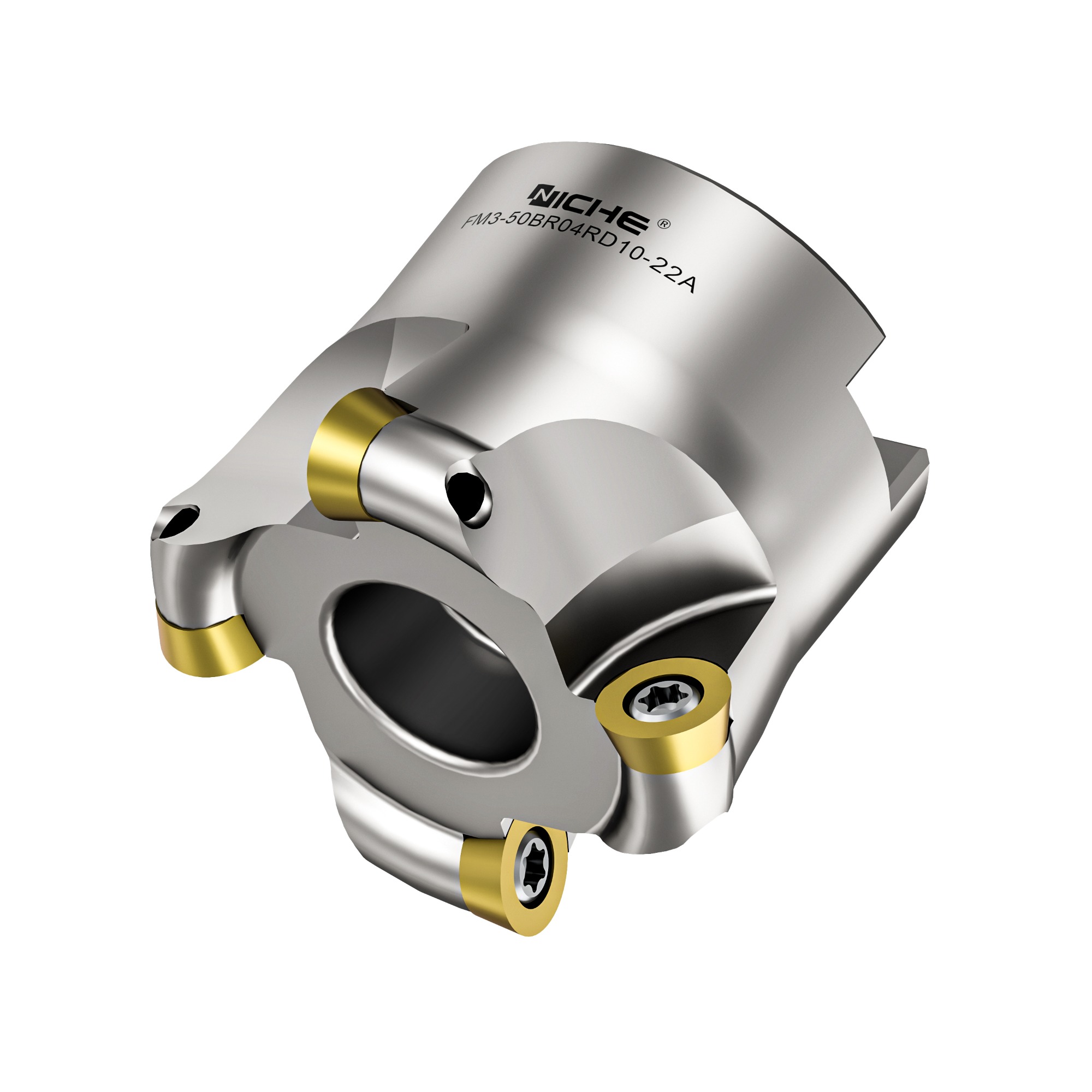

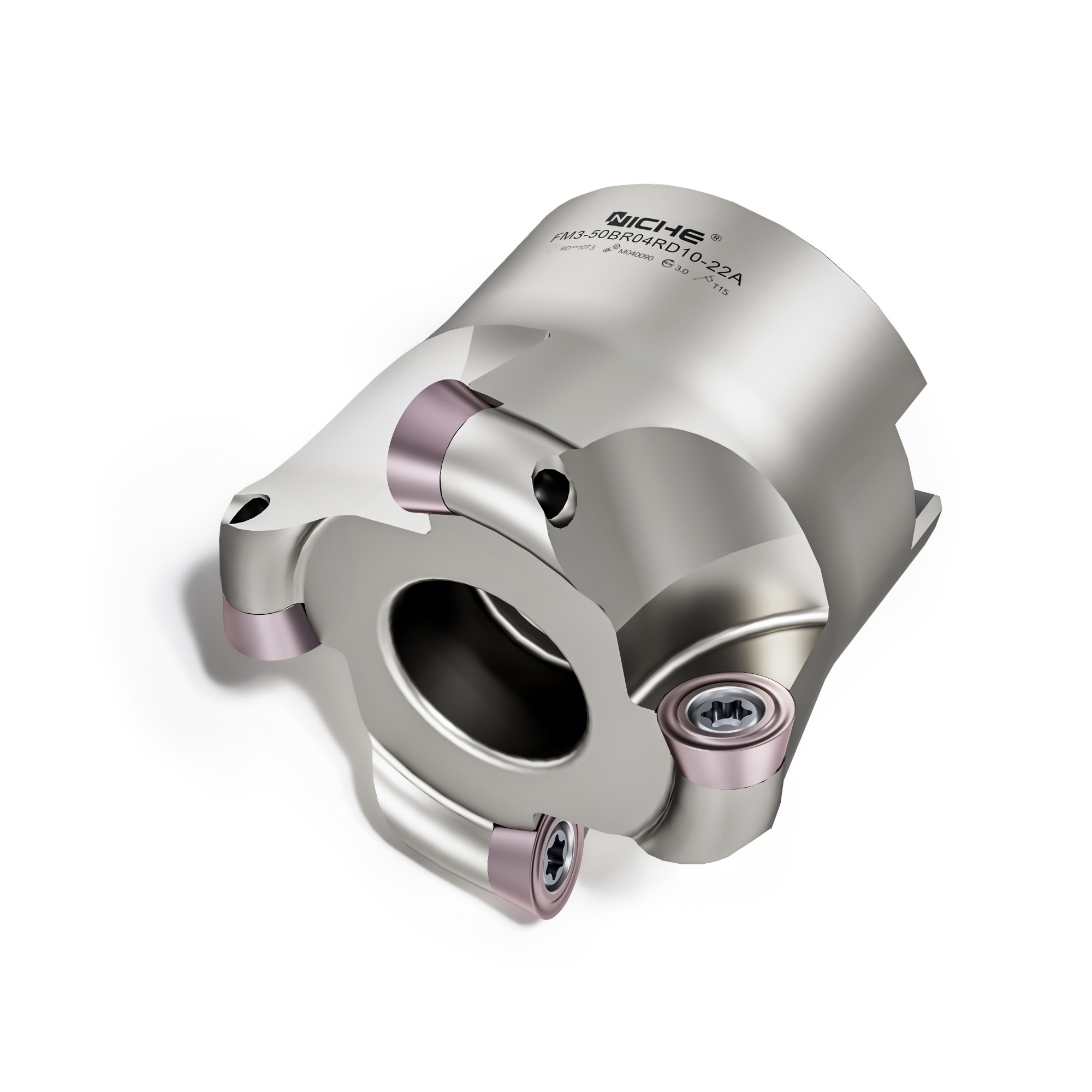

FM3-90-RD10/12/16 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø125mm
* Profile Milling application
* High rigdity

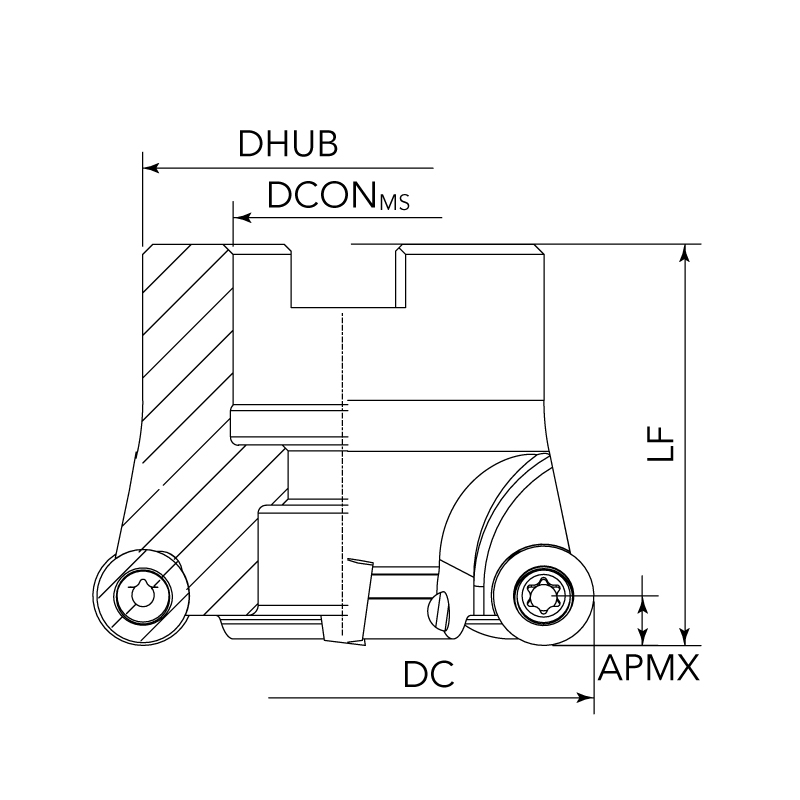

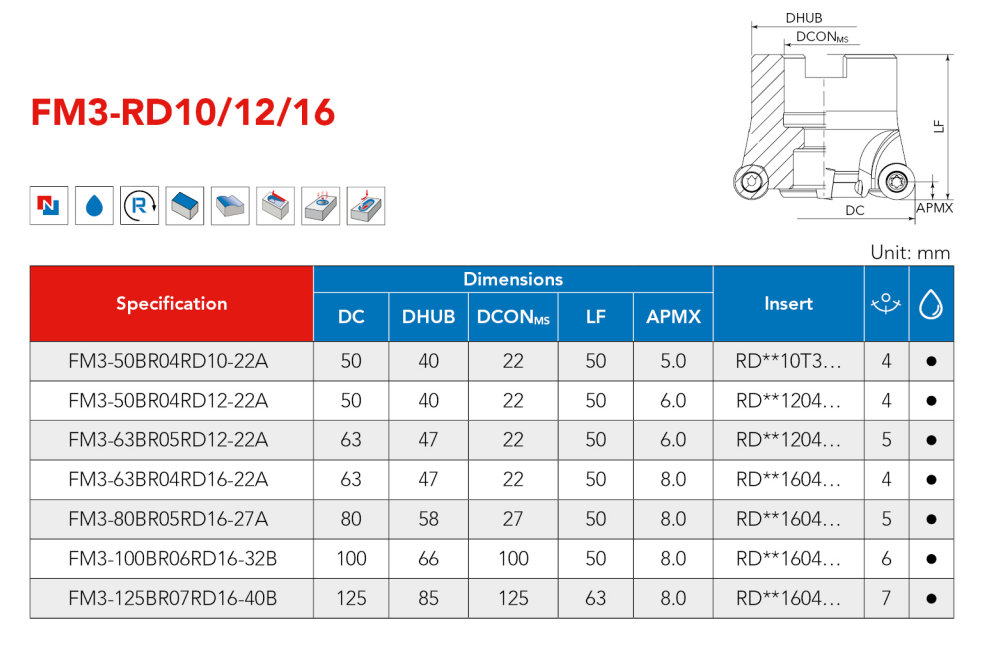

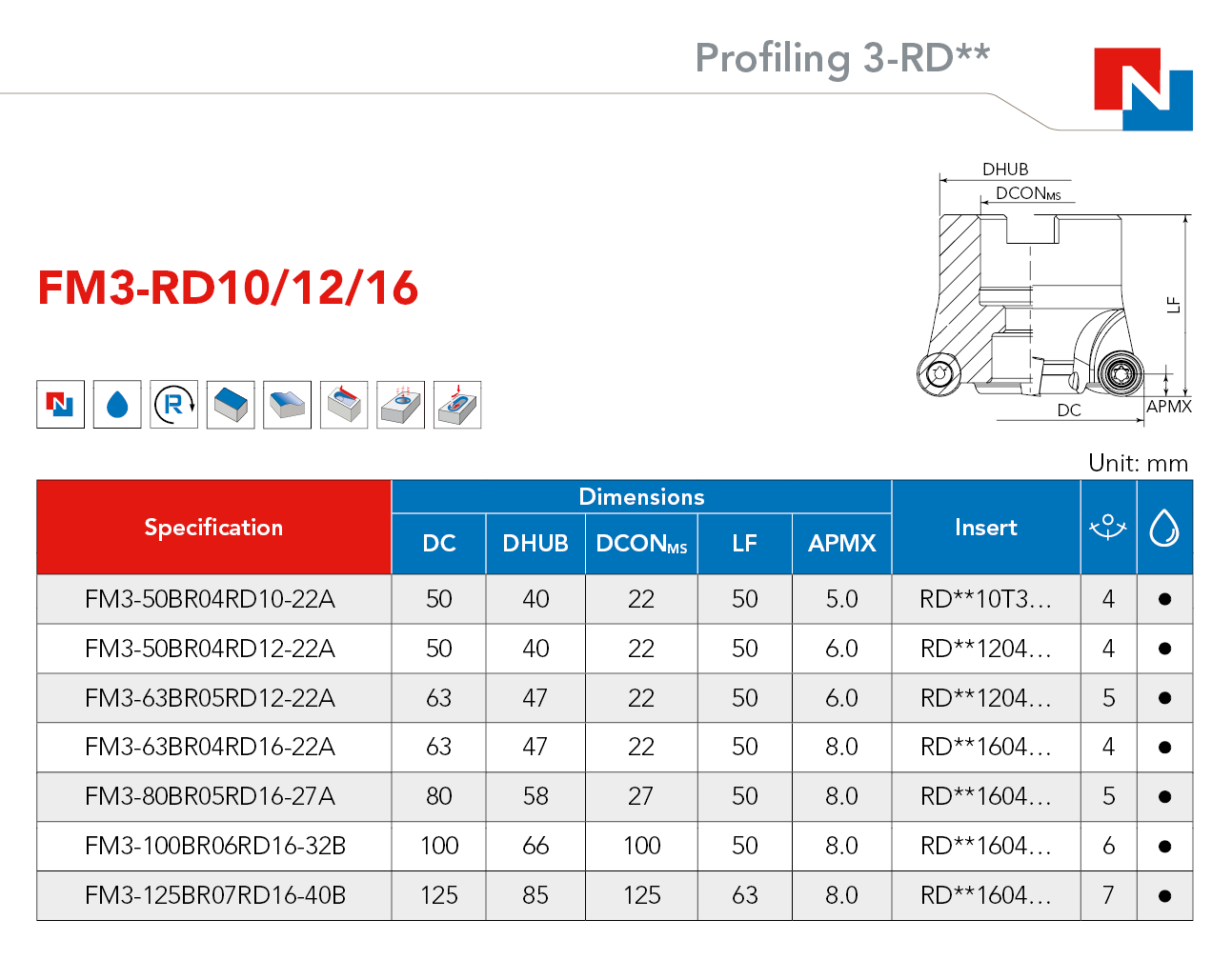

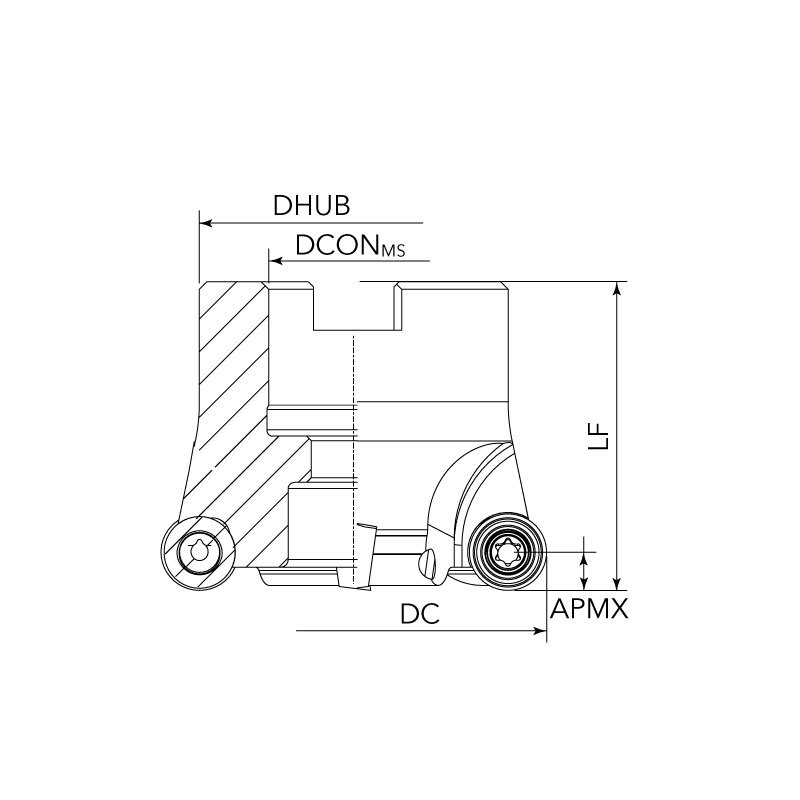

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DHUB |
DCONMS |
LF |
APMX |
| FM3-50BR04RD10-22A |
50 |
40 |
22 |
50 |
5.0 |
RD**10T3… |
4 |
| FM3-50BR04RD12-22A |
50 |
40 |
22 |
50 |
6.0 |
RD**1204… |
4 |
| FM3-63BR05RD12-22A |
63 |
47 |
22 |
50 |
6.0 |
RD**1204… |
5 |
| FM3-63BR04RD16-22A |
63 |
47 |
22 |
50 |
8.0 |
RD**1604… |
4 |
| FM3-80BR05RD16-27A |
80 |
58 |
27 |
50 |
8.0 |
RD**1604… |
5 |
| FM3-100BR06RD16-32B |
100 |
66 |
100 |
50 |
8.0 |
RD**1604… |
6 |
| FM3-125BR07RD16-40B |
125 |
85 |
125 |
63 |
8.0 |
RD**1604… |
7 |

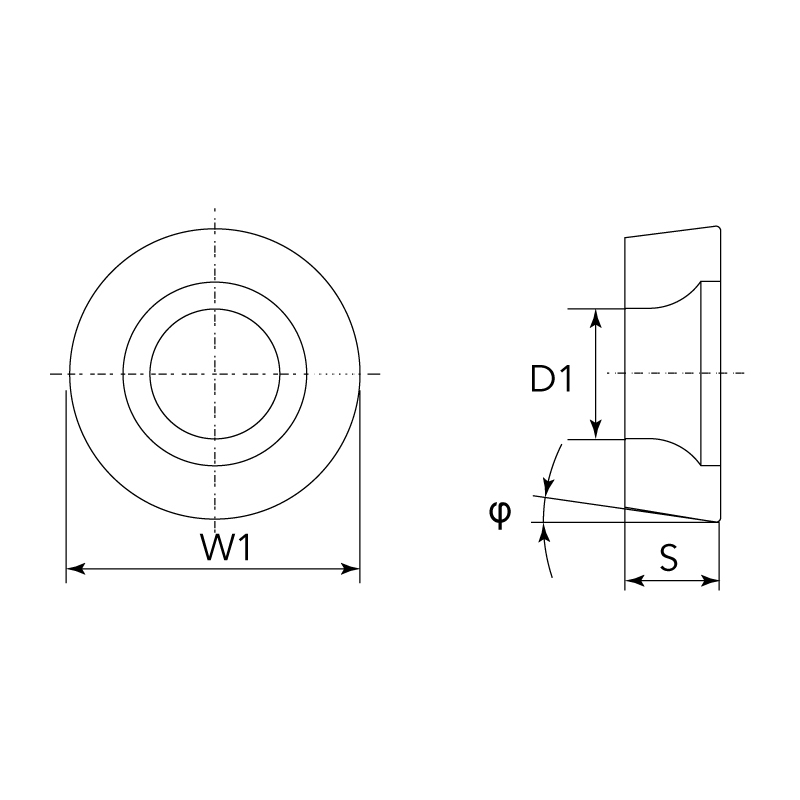

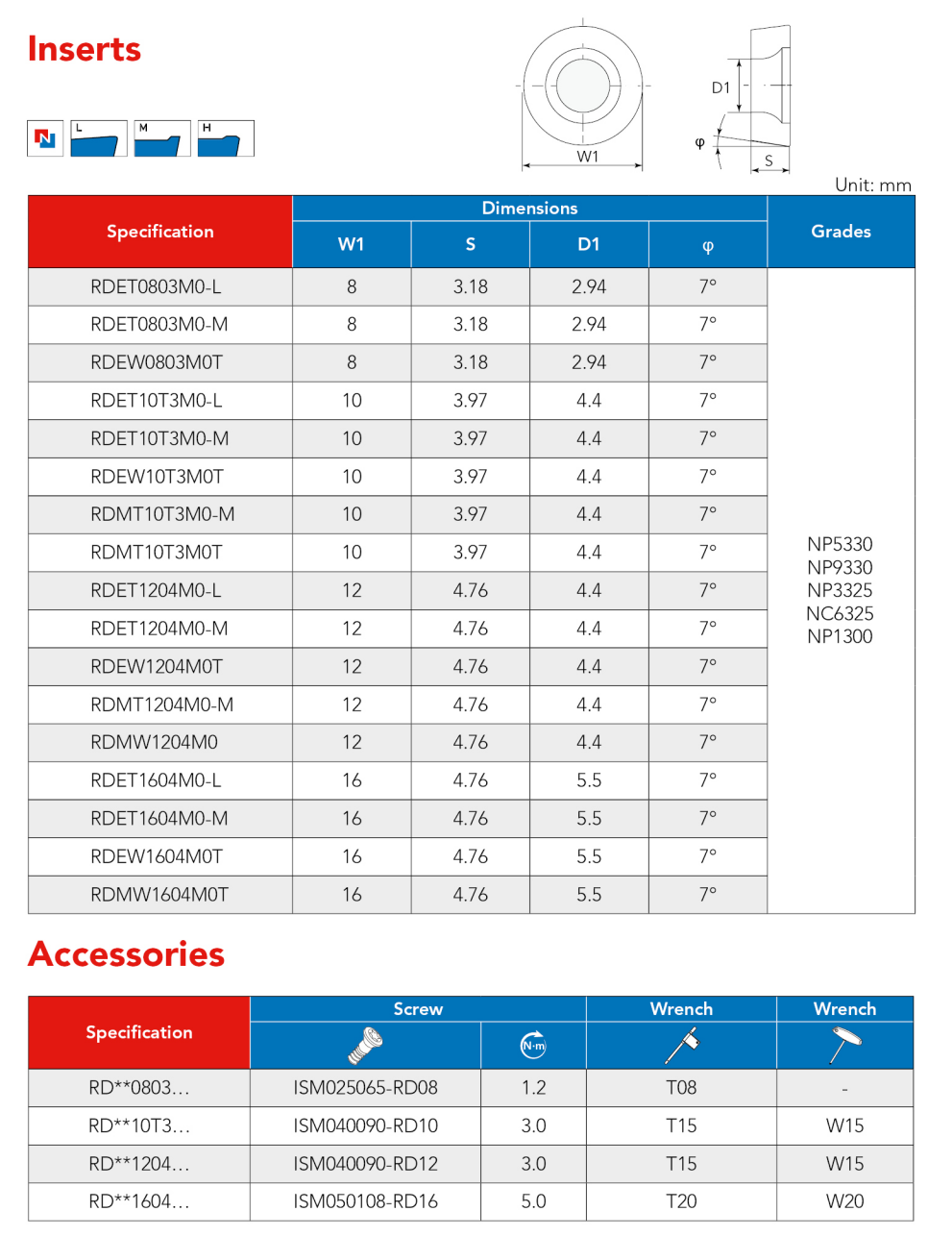

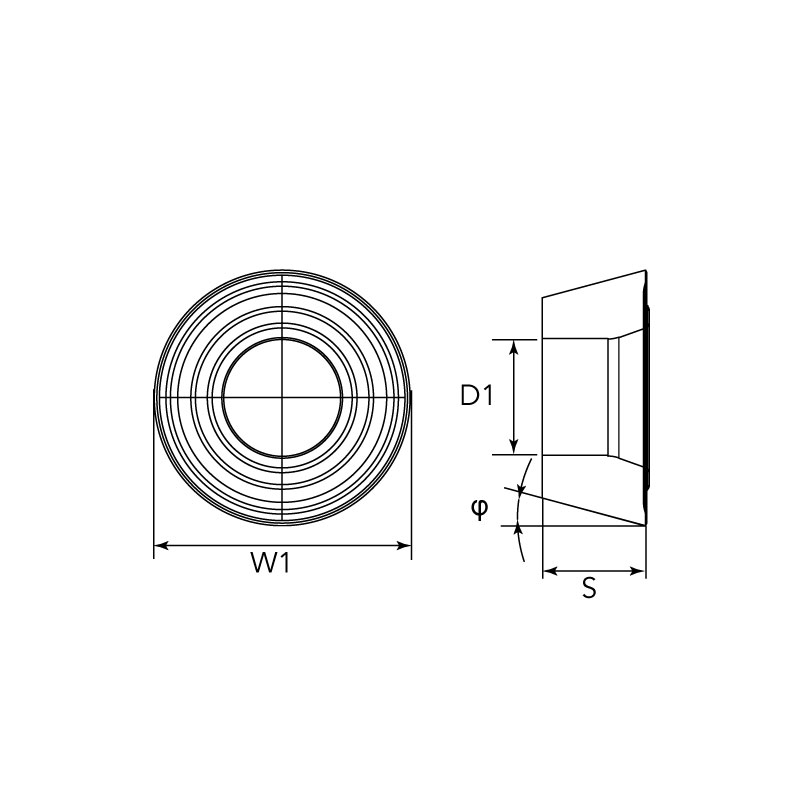

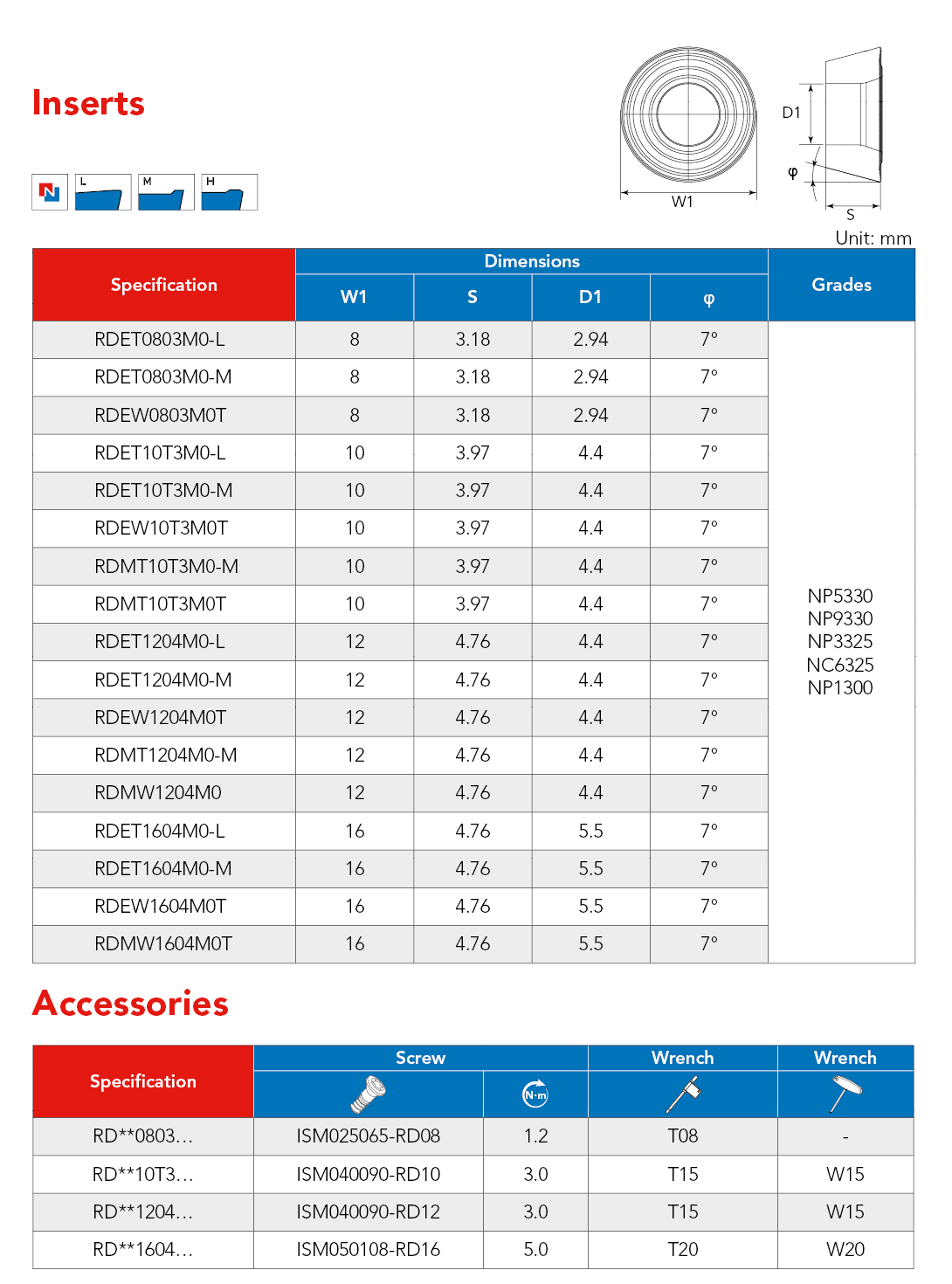

INSERTS
