FACE MILLING TOOLS

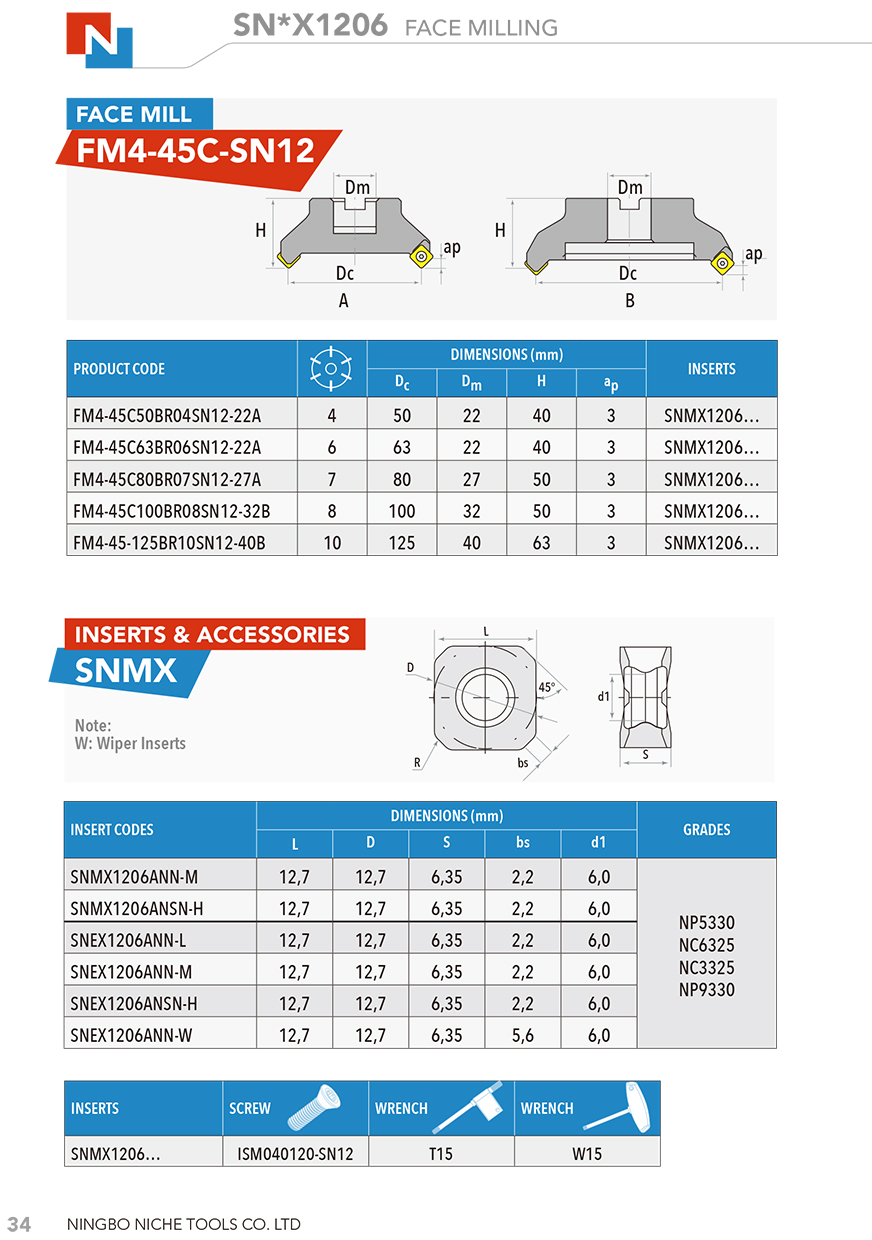

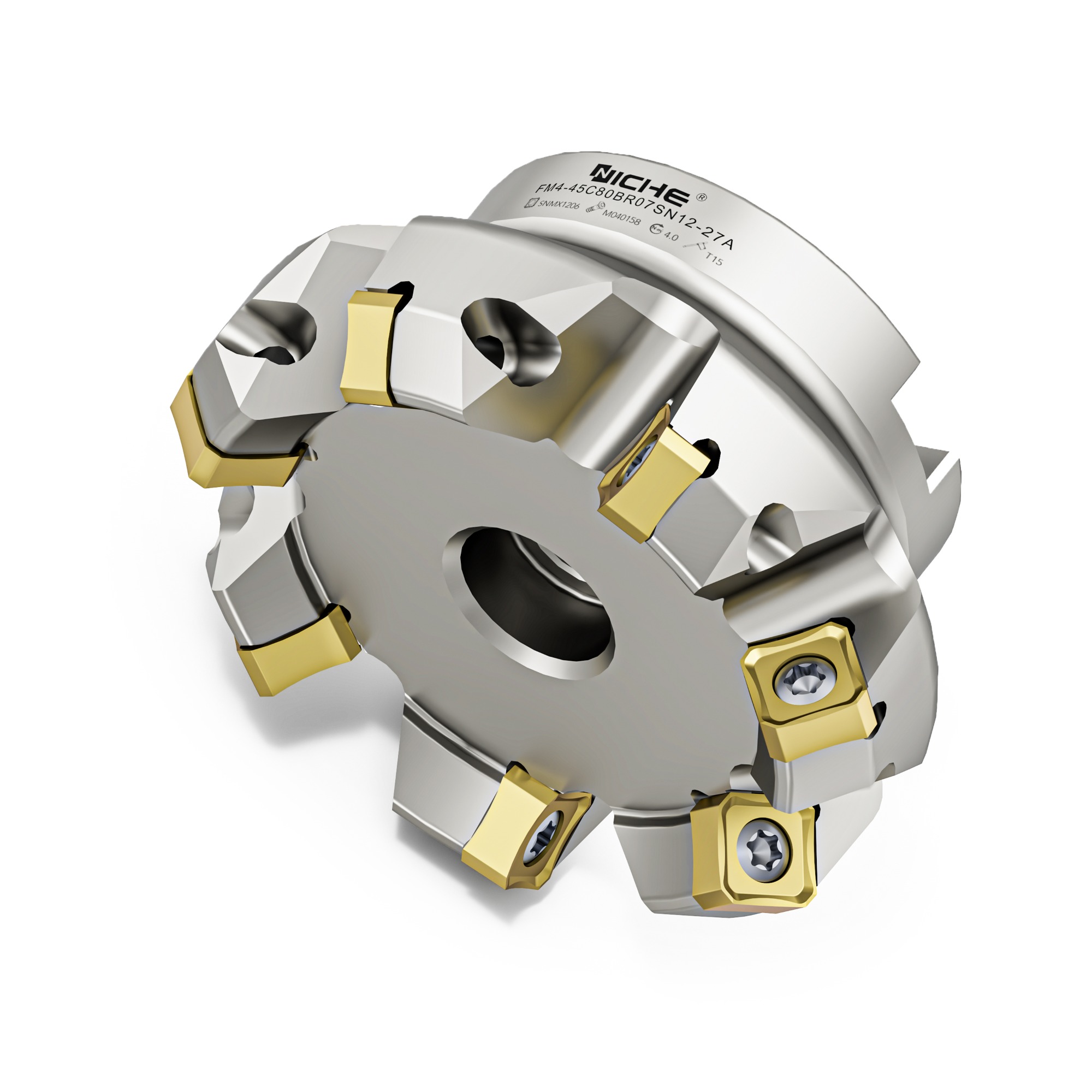

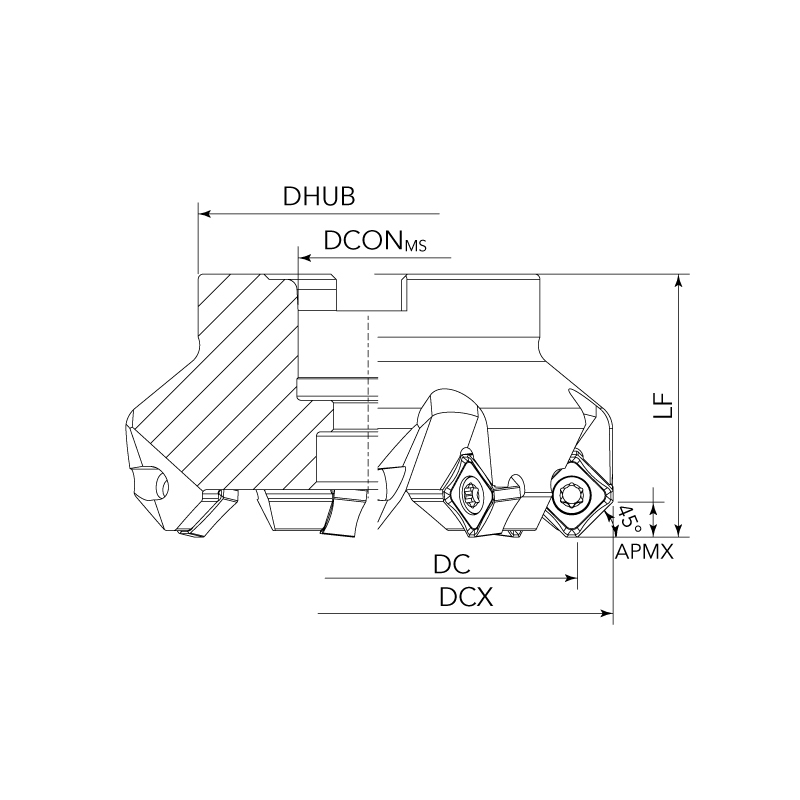

FM4-45C-SN12 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø125mm
* Face Milling application
* Double sided negative insert with positive cutting
* High material removal rate

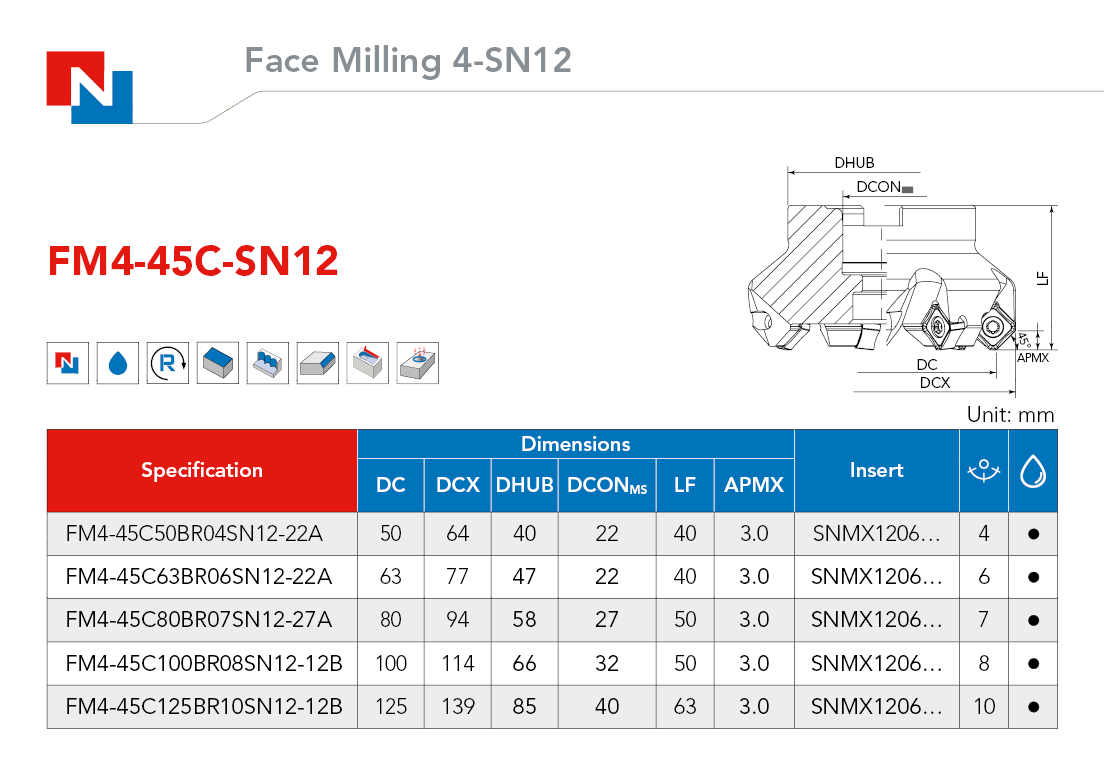

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DHUB |
DCONMS |
LF |
APMX |
| FM4-45C50BR04SN12-22A |
50 |
64 |
40 |
22 |
40 |
3.0 |
SNMX1206… |
4 |
| FM4-45C63BR06SN12-22A |
63 |
77 |
47 |
22 |
40 |
3.0 |
SNMX1206… |
6 |
| FM4-45C80BR07SN12-27A |
80 |
94 |
58 |
27 |
50 |
3.0 |
SNMX1206… |
7 |
| FM4-45C100BR08SN12-12B |
100 |
114 |
66 |
32 |
50 |
3.0 |
SNMX1206… |
8 |
| FM4-45C125BR10SN12-12B |
125 |
139 |
85 |
40 |
63 |
3.0 |
SNMX1206… |
10 |

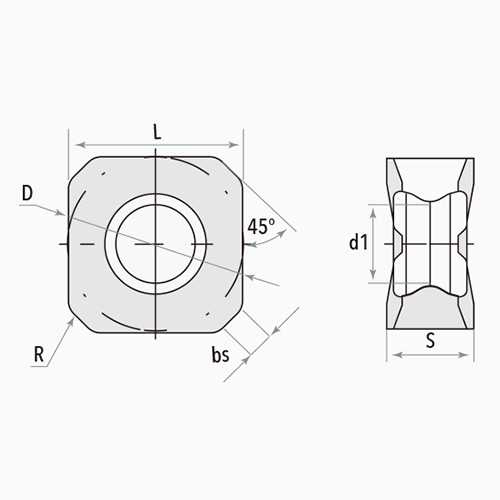

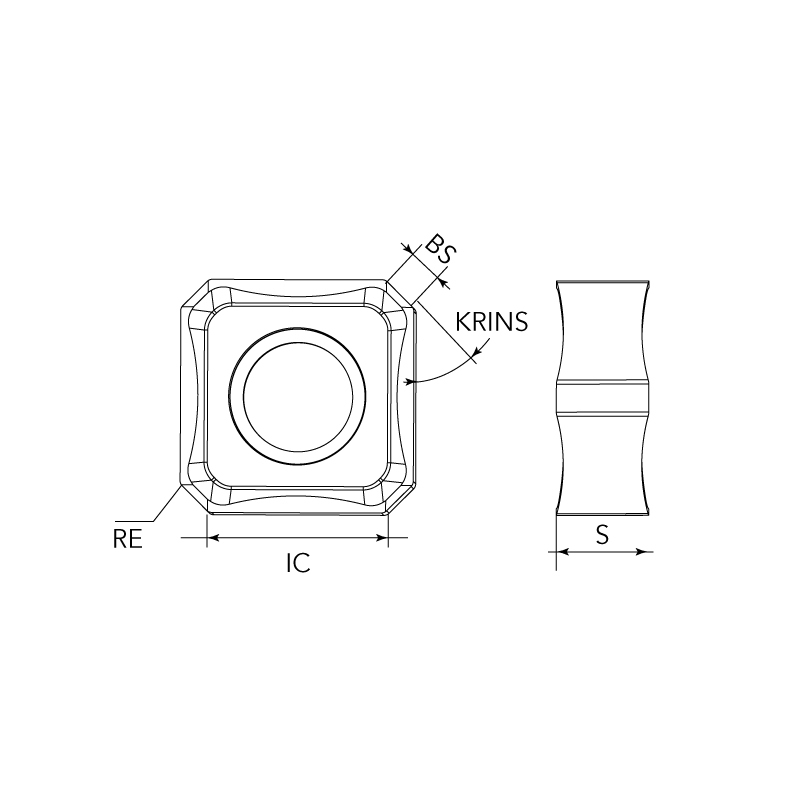

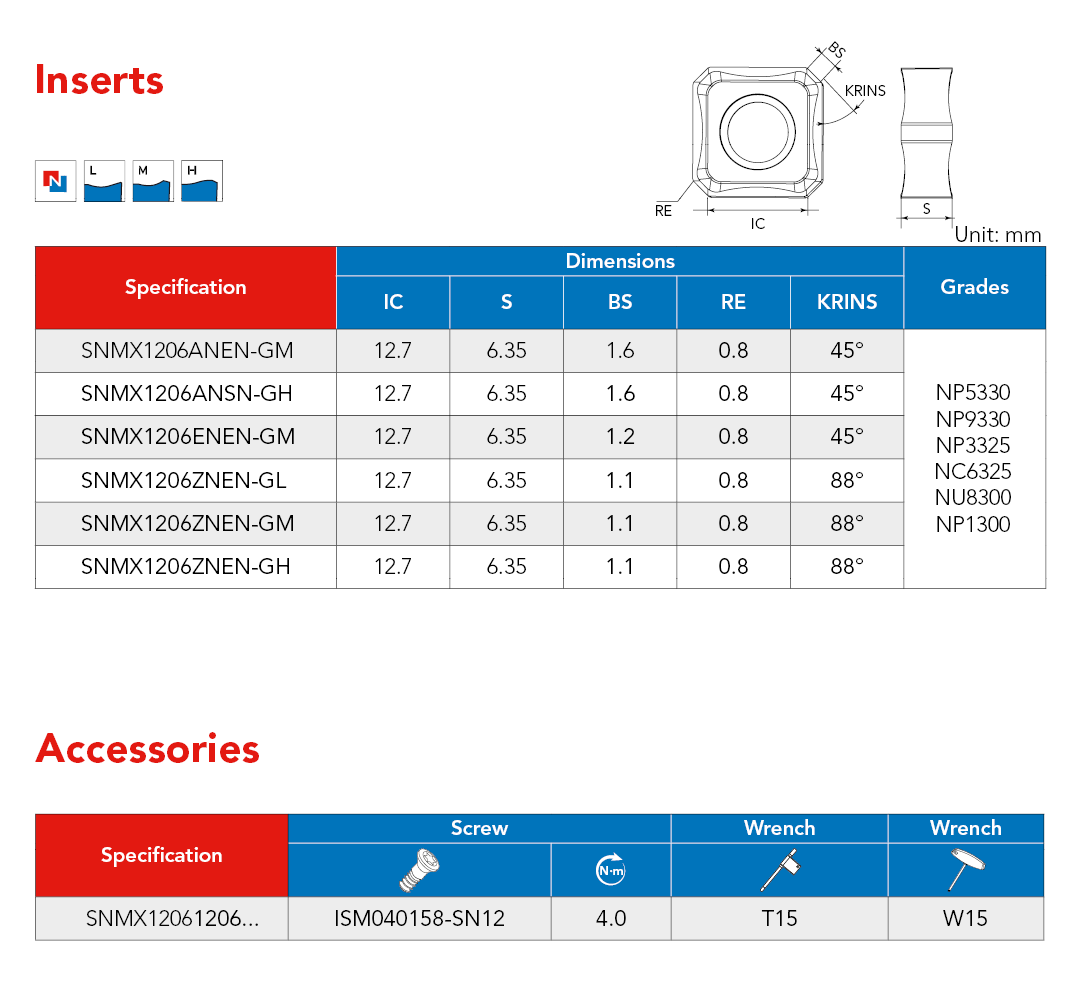

INSERTS
