HSK-DCK Boring Adapter
HSK-DCK Boring Adapter HSK-DCK Boring Adapter HSK-DCK Boring Adapter HSK-DCK Boring Adapter HSK-DCK Boring Adapter HSK-DCK Boring Adapter
  • HSK-DCK Boring Adapter
  • HSK-DCK Boring Adapter

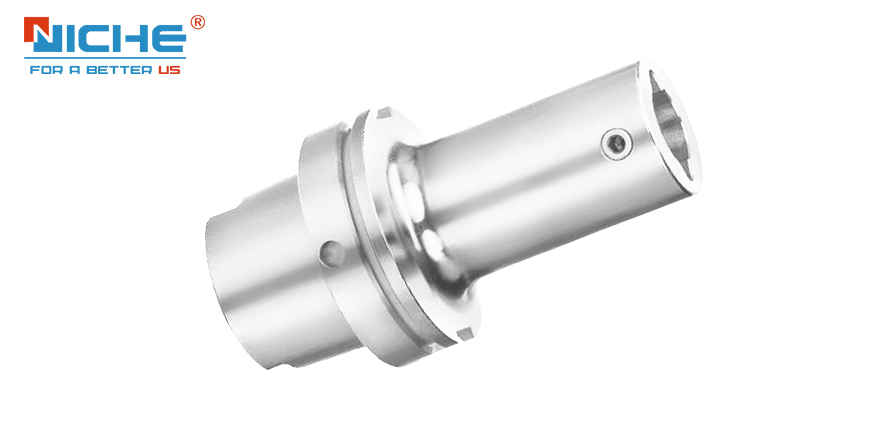

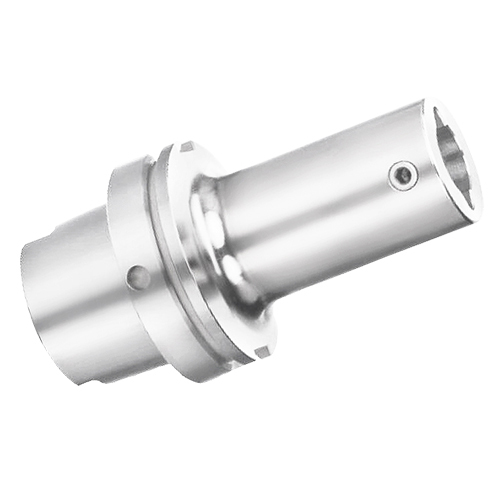

HSK-DCK Boring Adapter

Item No.: HSK-DCK Boring Adapter
* The whole bar with through holes,be useful for coolant and anti-shanking.
* Be compatible with all＂CK＂series.
Add to Inquiry
Description
Description
BORING HEAD HOLDER

HSK-DCK Boring Adapter

Feature
* The whole bar with through holes,be useful for coolant and anti-shanking.
* Be compatible with all＂CK＂series.
* Side lock screw is at right angles to key slot, to make sure that the replacing holders in CNCmachine are always in phase.
* Please apply lubricating oil to the screw to avoid stuck.

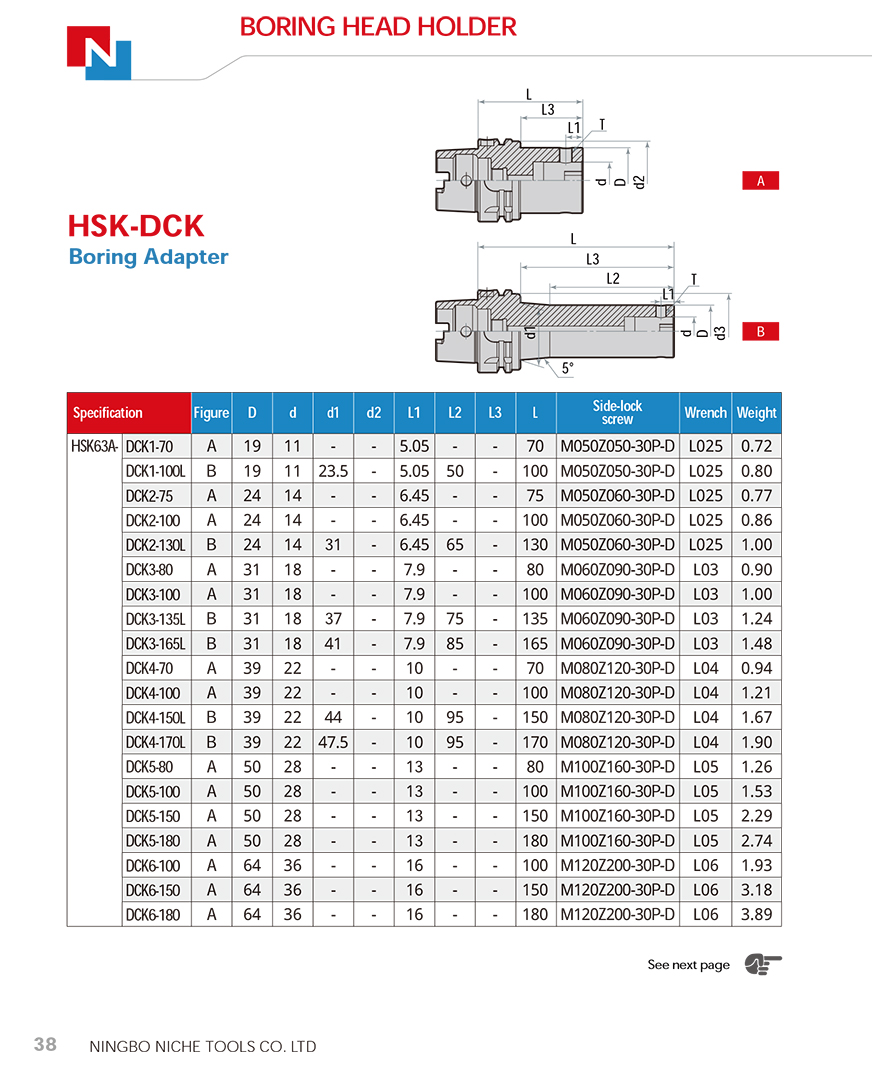

HSK-DCK Boring Adapter boring head holder

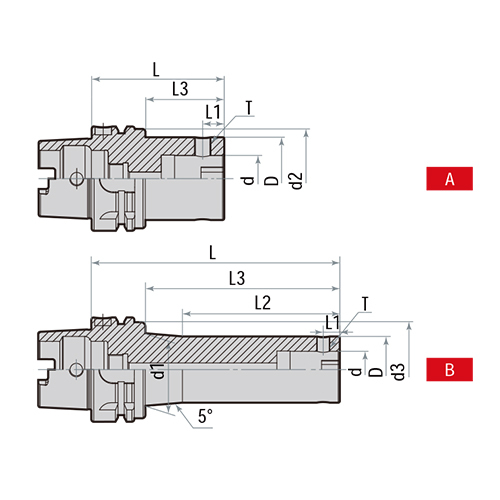

  Specification Figure D d d1 d2 L1 L2 L3 L Side-lock
screw		 Wrench Weight











HSK63A-








 DCK1-70 A 19 11 - - 4.95 - - 70 M050Z050-30P-D L25 0.72
DCK1-100L B 19 11 23.5 - 4.95 50 - 100 M050Z050-30P-D L25 0.80
DCK2-75 A 24 14 - - 6.45 - - 75 M050Z060-30P-D L25 0.77
DCK2-100 A 24 14 - - 6.45 - - 100 M050Z060-30P-D L25 0.86
DCK2-130L B 24 14 31 - 6.45 65 - 130 M050Z060-30P-D L25 1.00
DCK3-80 A 31 18 - - 7.9 - - 80 M060Z090-30P-D L03 0.90
DCK3-100 A 31 18 - - 7.9 - - 100 M060Z090-30P-D L03 1.00
DCK3-135L B 31 18 37 - 7.9 75 - 135 M060Z090-30P-D L03 1.24
DCK3-165L B 31 18 41 - 7.9 85 - 165 M060Z090-30P-D L03 1.48
DCK4-70 A 39 22 - - 10 - - 70 M080Z120-30P-D L04 0.94
DCK4-100 A 39 22 - - 10 - - 100 M080Z120-30P-D L04 1.21
DCK4-150L B 39 22 44 - 10 95 - 150 M080Z120-30P-D L04 1.67
DCK4-170L B 39 22 47.5 - 10 95 - 170 M080Z120-30P-D L04 1.90
DCK5-80 A 50 28 - - 13 - - 80 M100Z160-30P-D L05 1.26
DCK5-100 A 50 28 - - 13 - - 100 M100Z160-30P-D L05 1.53
DCK5-150 A 50 28 - - 13 - - 150 M100Z160-30P-D L05 2.29
DCK5-180 A 50 28 - - 13 - - 180 M100Z160-30P-D L05 2.74
DCK6-100 A 64 36 - - 16 - - 100 M120Z200-30P-D L06 1.93
DCK6-150 A 64 36 - - 16 - - 150 M120Z200-30P-D L06 3.18
DCK6-180 A 64 36 - - 16 - - 180 M120Z200-30P-D L06 3.89











HSK100A-













 DCK1-80 A 19 11 - 65 5.05 - 43 80 M050Z050-30P-D L25 2.27
DCK1-115L B 19 11 24 65 5.05 50 78 115 M050Z050-30P-D L25 2.37
DCK1-155L B 19 11 27.5 65 5.05 60 108 145 M050Z050-30P-D L25 2.46
DCK2-80 A 24 14 - 65 6.45 - 43 80 M050Z060-30P-D L25 2.31
DCK2-105 A 24 14 - 65 6.45 - 68 105 M050Z060-30P-D L25 2.40
DCK2-135L B 24 14 30 65 6.45 65 98 135 M050Z060-30P-D L25 2.52
DCK2-165L B 24 14 33.5 65 6.45 75 128 165 M050Z060-30P-D L25 2.67
DCK3-85 A 31 18 - 65 7.9 - 46 85 M060Z090-30P-D L03 2.40
DCK3-110 A 31 18 - 65 7.9 - 71 110 M060Z090-30P-D L03 2.57
DCK3-140L B 31 18 35.5 - 7.9 75 101 140 M060Z090-30P-D L03 2.67
DCK3-170L B 31 18 41 - 7.9 85 - 170 M060Z090-30P-D L03 2.90
DCK4-100 A 39 22 - - 10 - - 100 M080Z120-30P-D L04 2.53
DCK4-160L B 39 22 47 - 10 85 - 160 M080Z120-30P-D L04 3.10
DCK4-205L B 39 22 50.5 - 10 110 - 205 M080Z120-30P-D L04 3.62
DCK5-90 A 50 28 - - 13 - - 90 M100Z160-30P-D L04 2.72
DCK5-165 A 50 28 - - 13 - - 165 M100Z160-30P-D L05 3.82
DCK5-210L B 50 28 61 - 13 120 - 210 M100Z160-30P-D L05 4.60
DCK5-270L B 50 28 69.5 - 13 130 - 270 M100Z160-30P-D L05 6.09
DCK6-85 A 64 36 - - 16 - - 85 M120Z200-30P-D L06 3.05
DCK6-155 A 64 36 - - 16 - - 155 M120Z200-30P-D L06 4.75
DCK6-215 A 64 36 - - 16 - - 215 M120Z200-30P-D L06 6.10
DCK6-250 A 64 36 - - 16 - - 250 M120Z200-30P-D L06 7.04
DCK6-300L B 64 36 80 - 16 180 - 300 M120Z200-30P-D L06 8.80
DCK7-125 A 90 46 - - 19.15 - - 125 M200Z290-30P-D L10 5.73
DCK7-200 A 90 46 - - 19.15 - - 200 M200Z290-30P-D L10 9.30
DCK7-275 A 90 46 - - 19.15 - - 275 M200Z290-30P-D L10 12.90

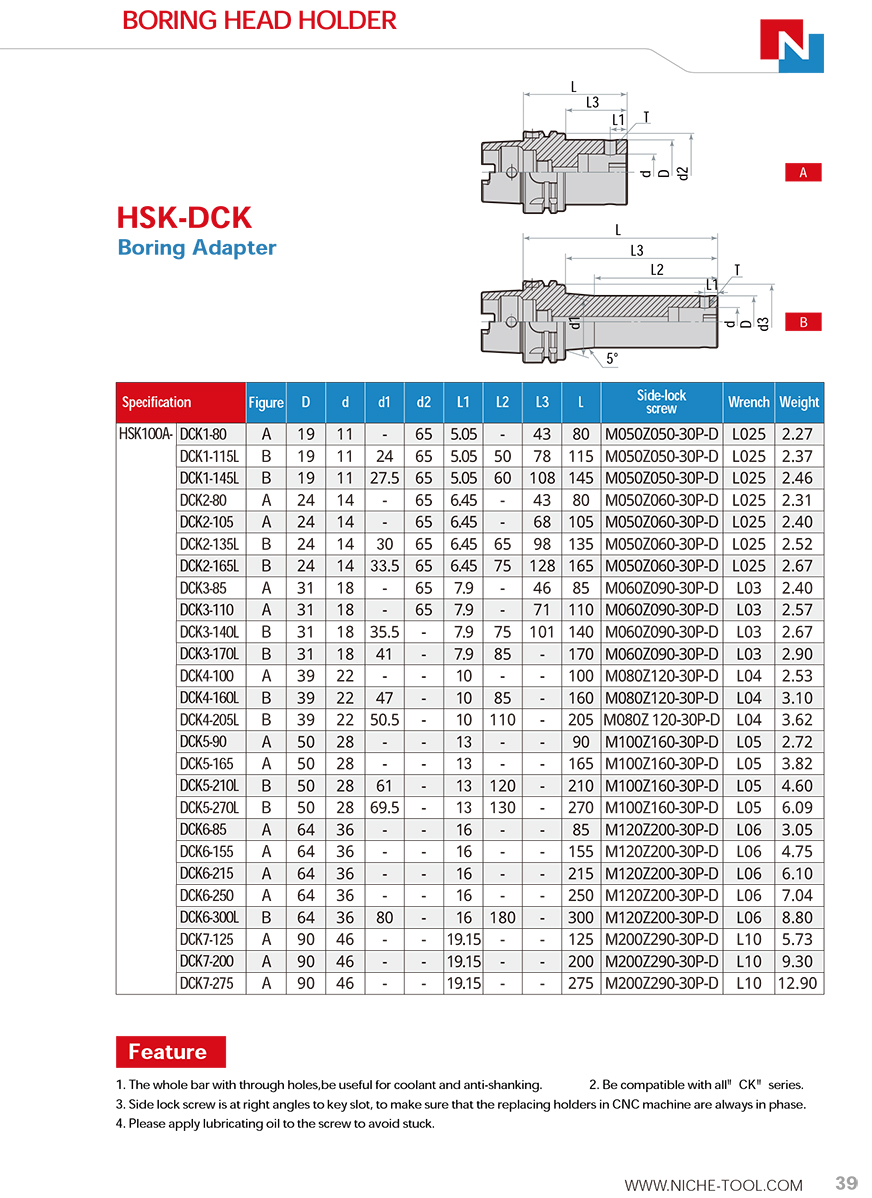

HSK-DCK Boring Adapter boring head holderHSK-DCK Boring Adapter boring head holder
