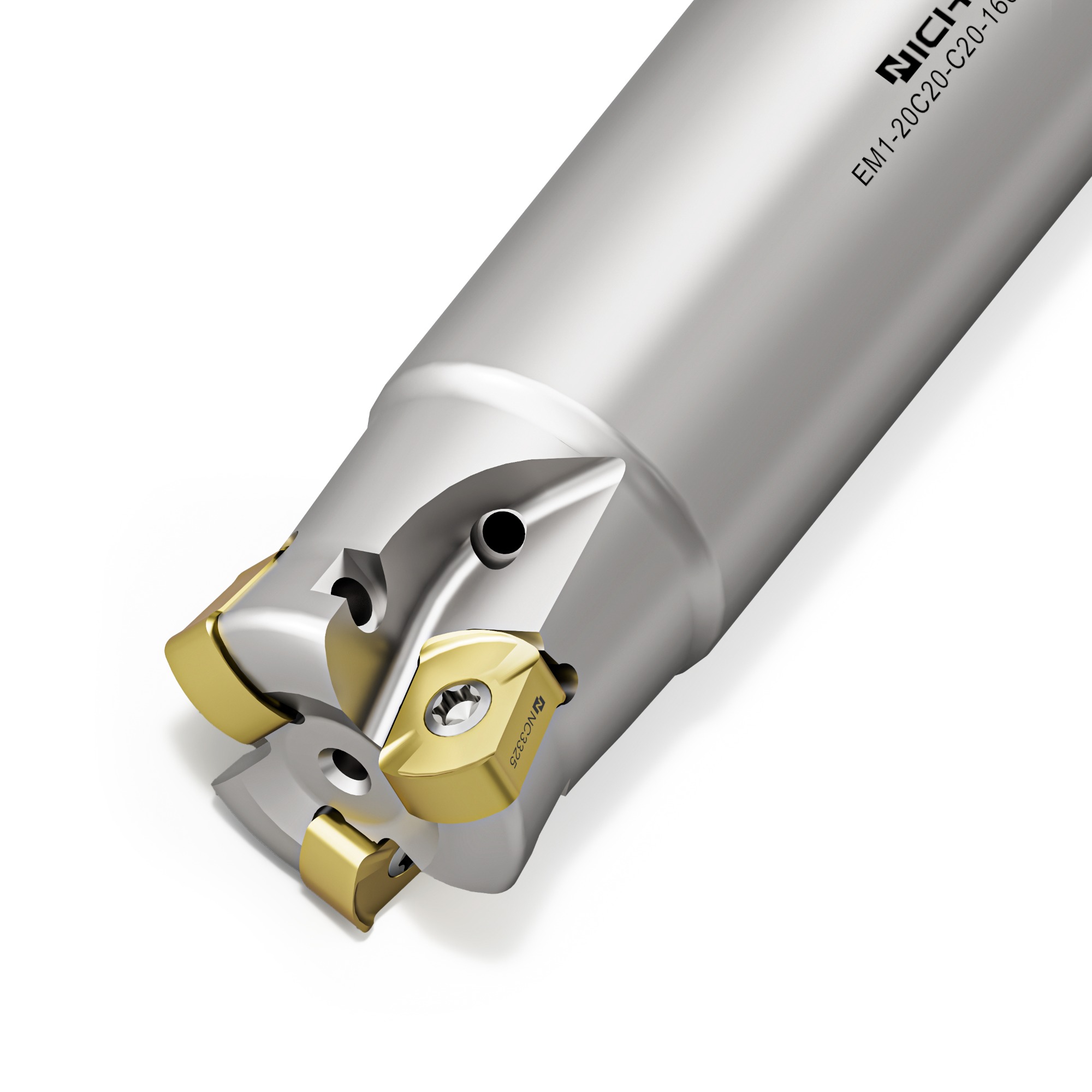

HIGH-FEED MILLING TOOLS EM1-20C-NL06/09 (END MILL) Features:
* Particularly suitable for high feed machining
* 4 corner inserts for cost effective machining
* Through coolant (air) system
* Minimum Diameter 16mm
* NLMP 06: Minimum diameter 16mm with 1mm of maximum D.O.C.
* NLMP 09: Minimum diameter 25mm with 1.5mm of maximum D.O.C.

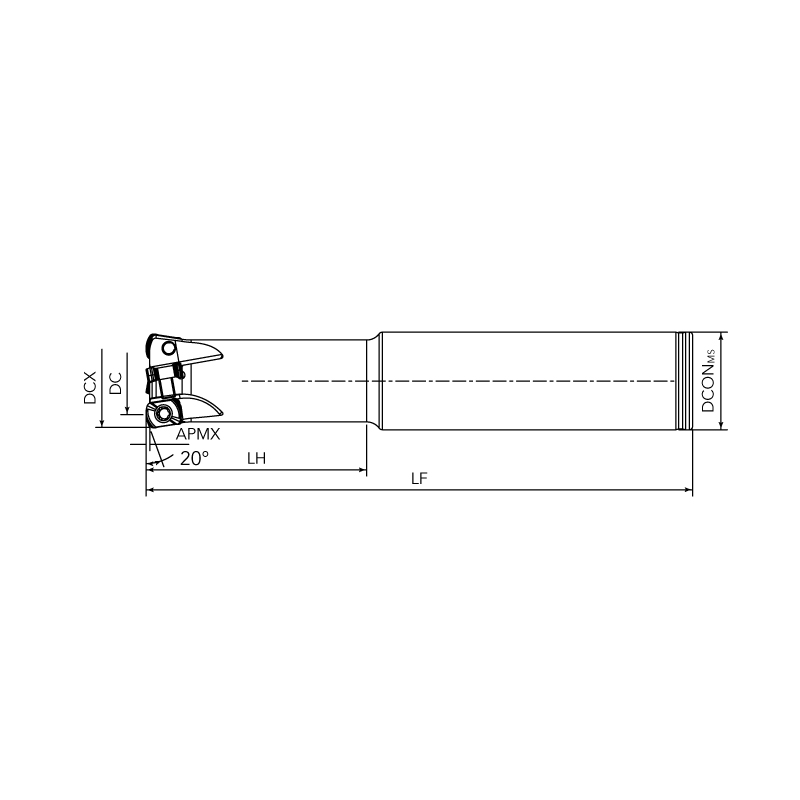

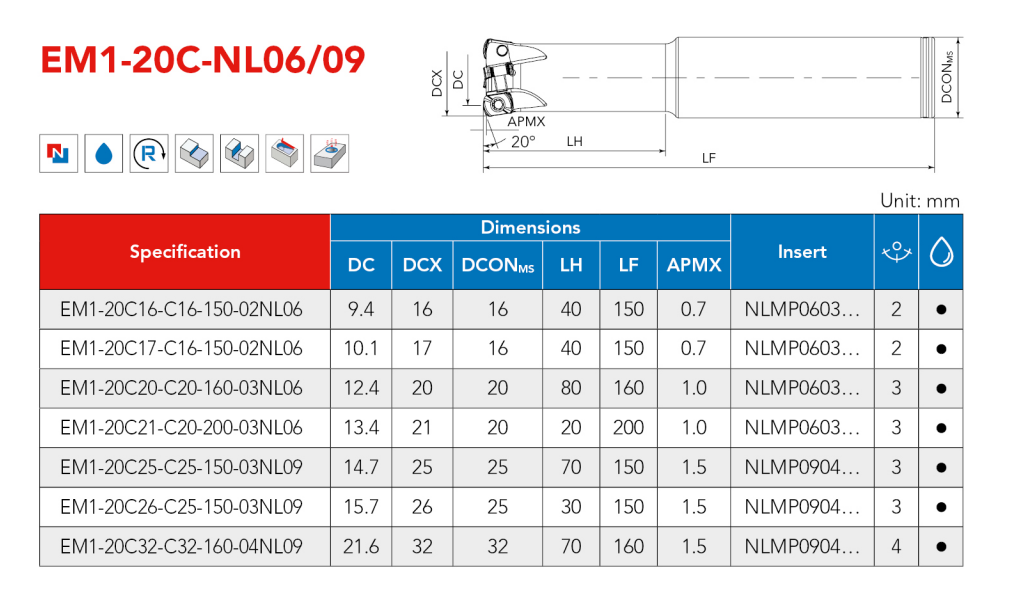

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DCONMS |
LH |
LF |
APMX |
| EM1-20C16-C16-150-02NL06 |
9.4 |
16 |
16 |
40 |
150 |
0.7 |
NLMP0603… |
2 |
| EM1-20C17-C16-150-02NL06 |
10.1 |
17 |
16 |
40 |
150 |
0.7 |
NLMP0603… |
2 |
| EM1-20C20-C20-160-03NL06 |
12.4 |
20 |
20 |
80 |
160 |
1.0 |
NLMP0603… |
3 |
| EM1-20C21-C20-200-03NL06 |
13.4 |
21 |
20 |
20 |
200 |
1.0 |
NLMP0603… |
3 |
| EM1-20C25-C25-150-03NL09 |
14.7 |
25 |
25 |
70 |
150 |
1.5 |
NLMP0904… |
3 |
| EM1-20C26-C25-150-03NL09 |
15.7 |
26 |
25 |
30 |
150 |
1.5 |
NLMP0904… |
3 |
| EM1-20C32-C32-160-04NL09 |
21.6 |
32 |
32 |
70 |
160 |
1.5 |
NLMP0904… |
4 |

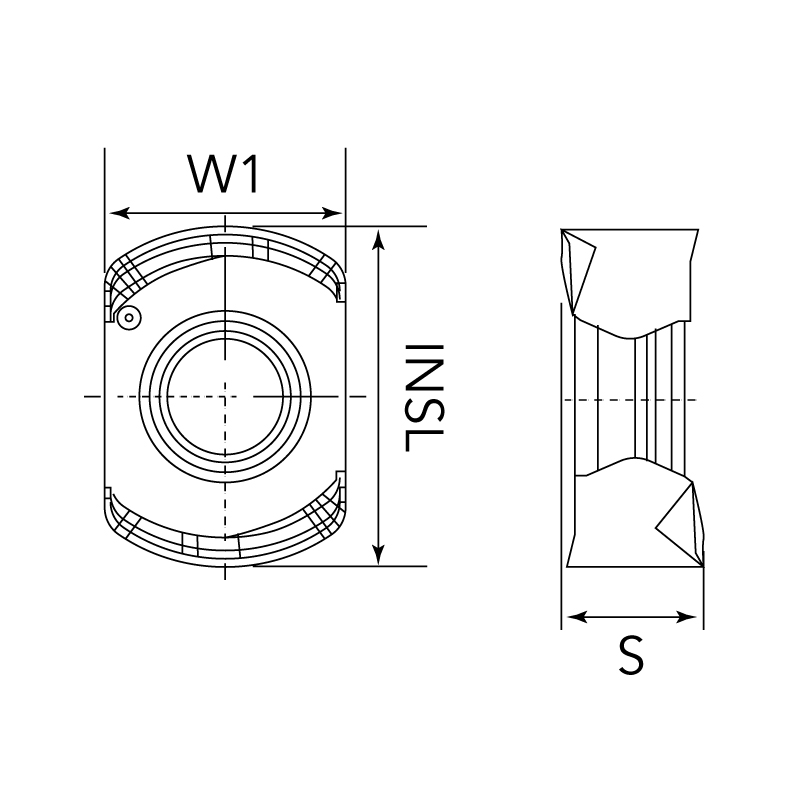

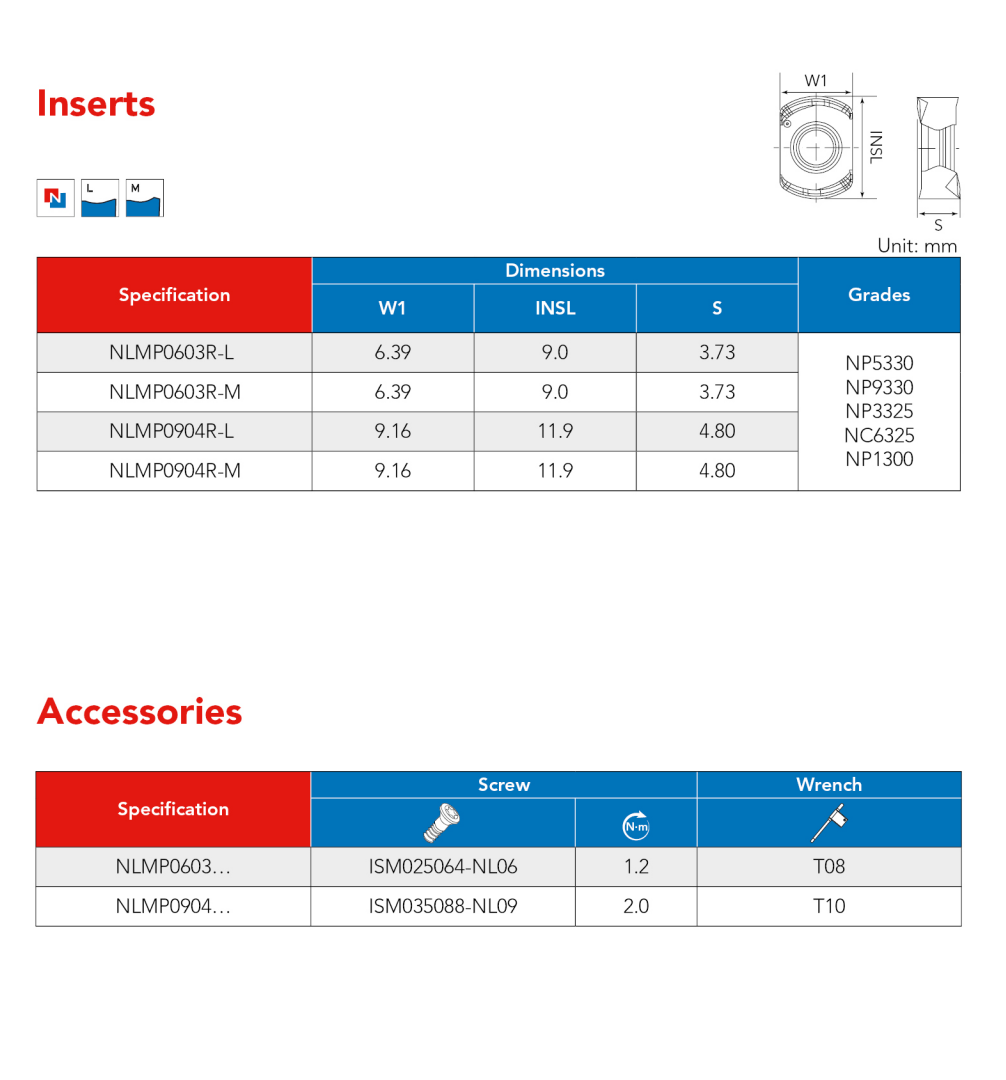

INSERTS
