FACE MILLING TOOLS

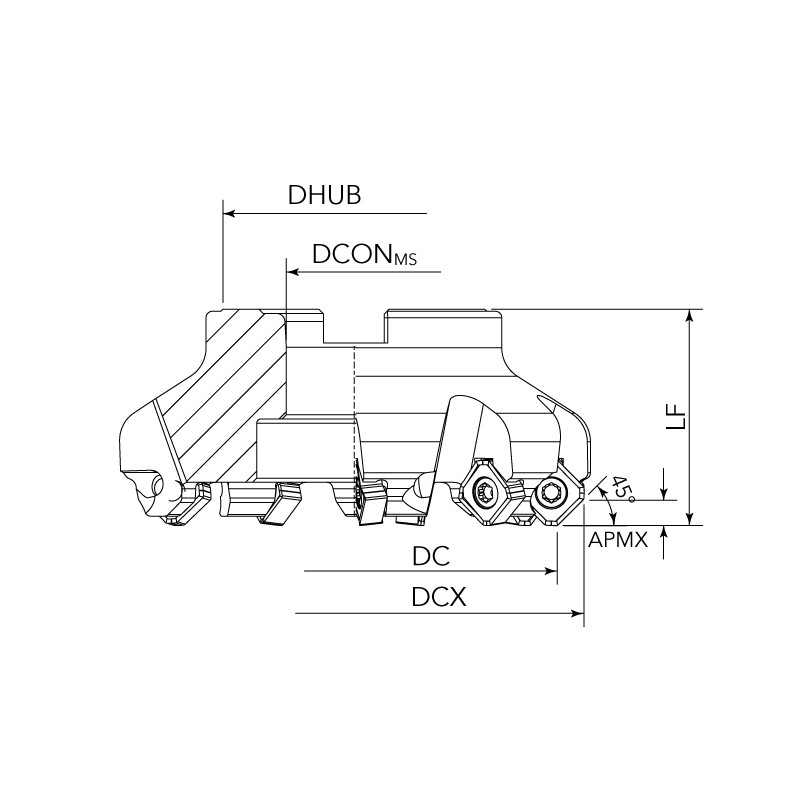

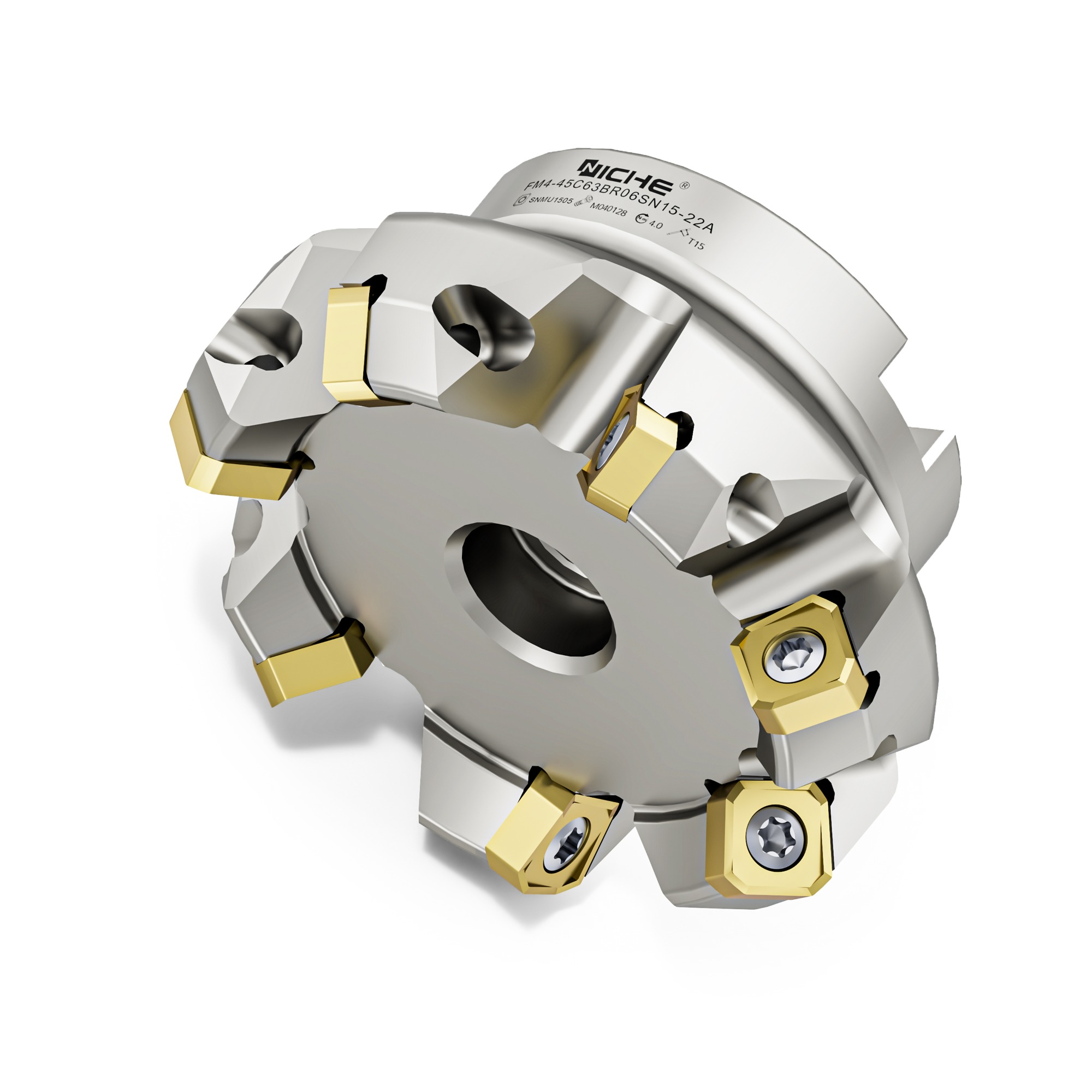

FM4-45C-SN15 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø125mm
* Face Milling application
* Double sided negative insert with positive cutting
* High material removal rate

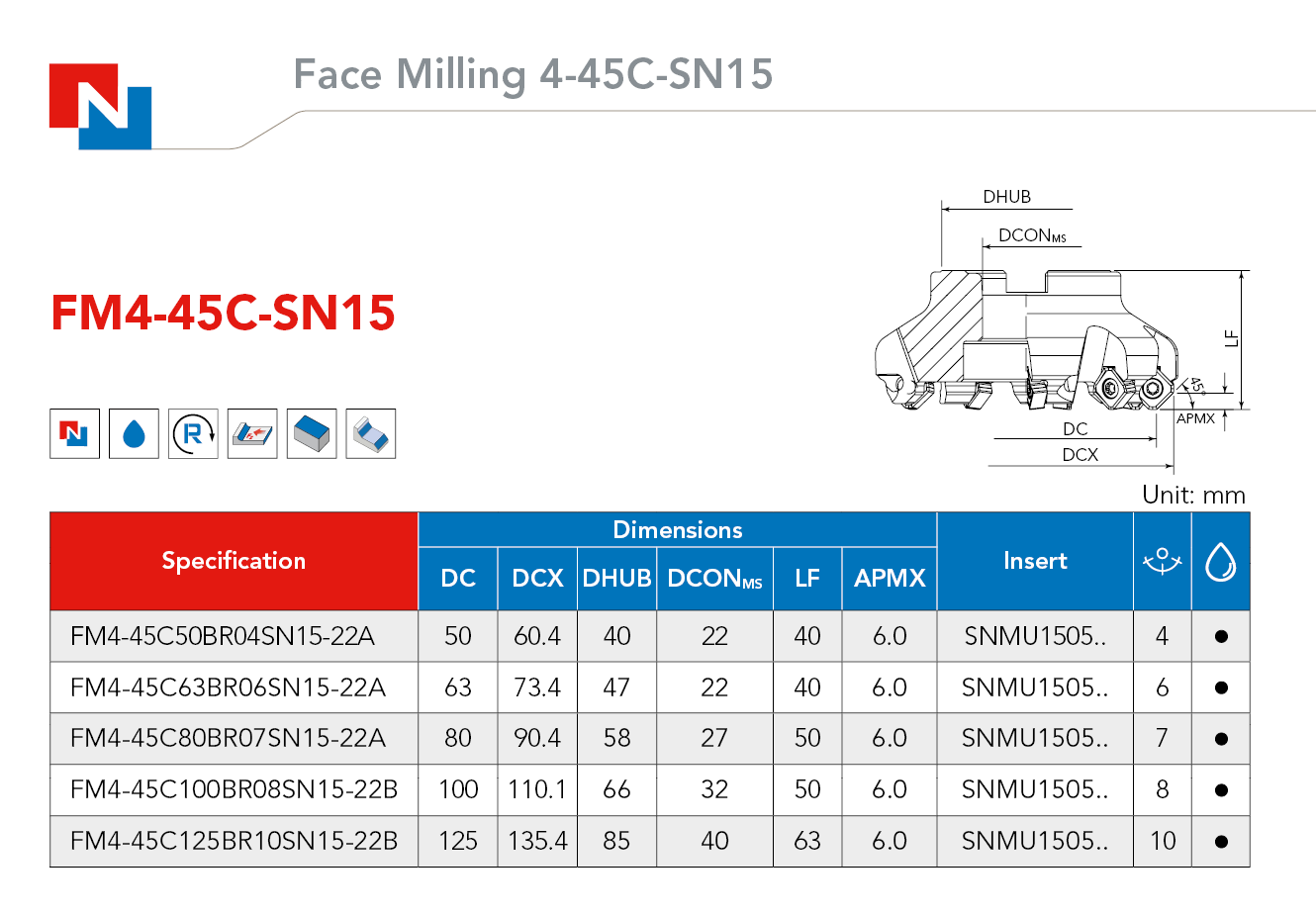

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DHUB |
DCONMS |
LF |
APMX |
| FM4-45C50BR04SN15-22A |
50 |
60.4 |
40 |
22 |
40 |
6.0 |
SNMU1505.. |
4 |
| FM4-45C63BR06SN15-22A |
63 |
73.4 |
47 |
22 |
40 |
6.0 |
SNMU1505.. |
6 |
| FM4-45C80BR07SN15-22A |
80 |
90.4 |
58 |
27 |
50 |
6.0 |
SNMU1505.. |
7 |
| FM4-45C100BR08SN15-22B |
100 |
110.1 |
66 |
32 |
50 |
6.0 |
SNMU1505.. |
8 |
| FM4-45C125BR10SN15-22B |
125 |
135.4 |
85 |
40 |
63 |
6.0 |
SNMU1505.. |
10 |

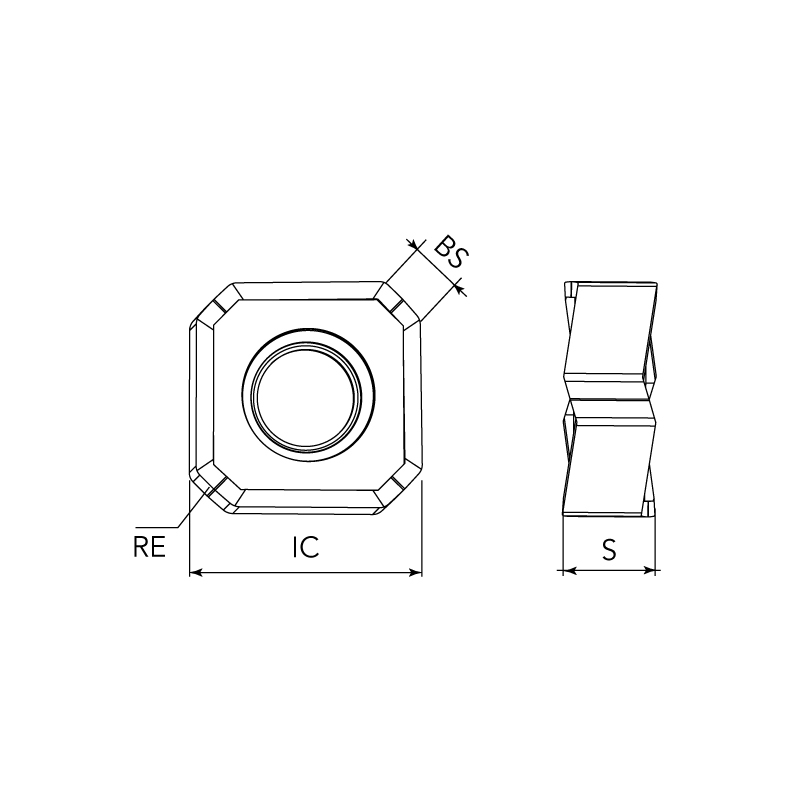

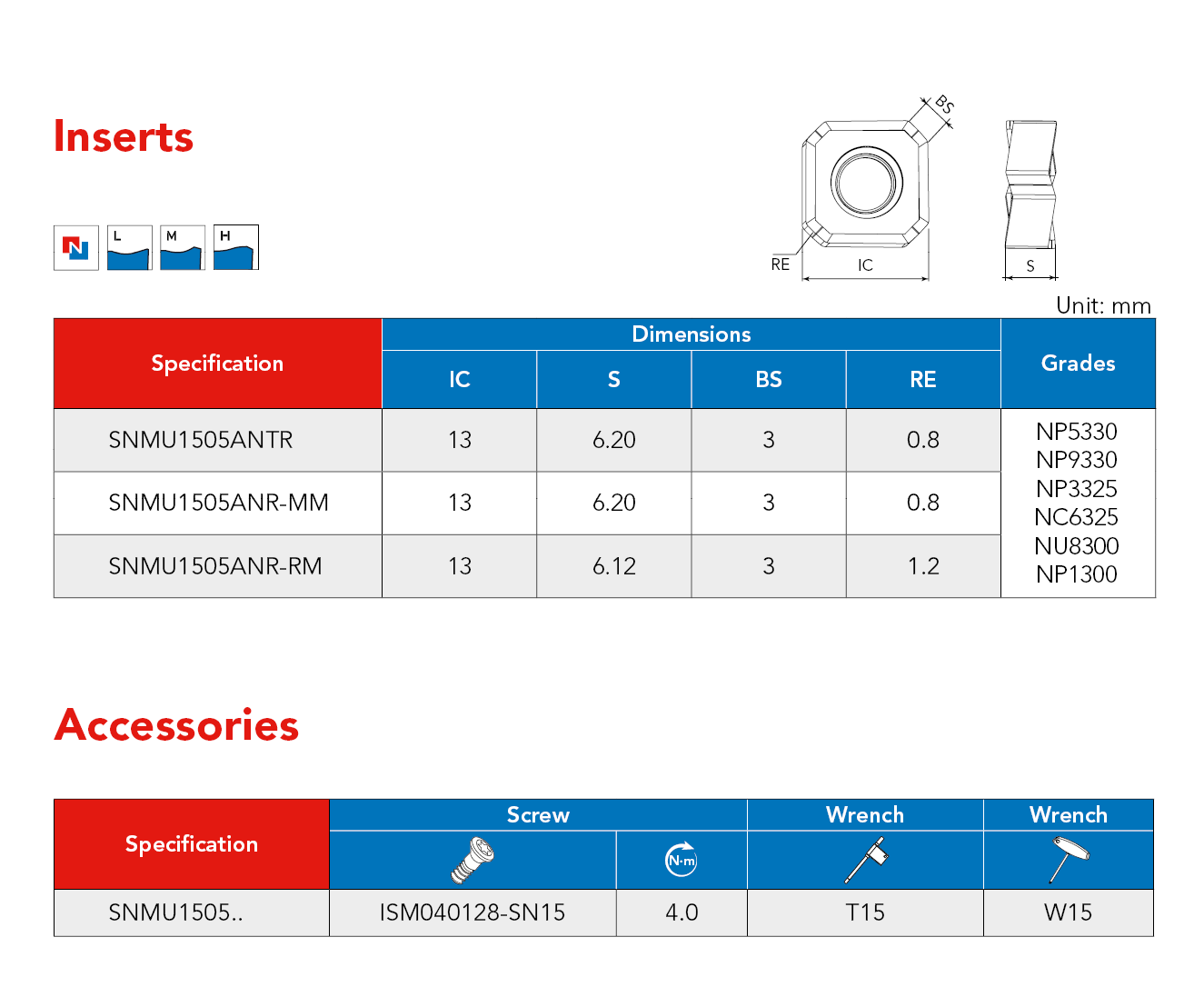

INSERTS
