FACE MILLING TOOLS

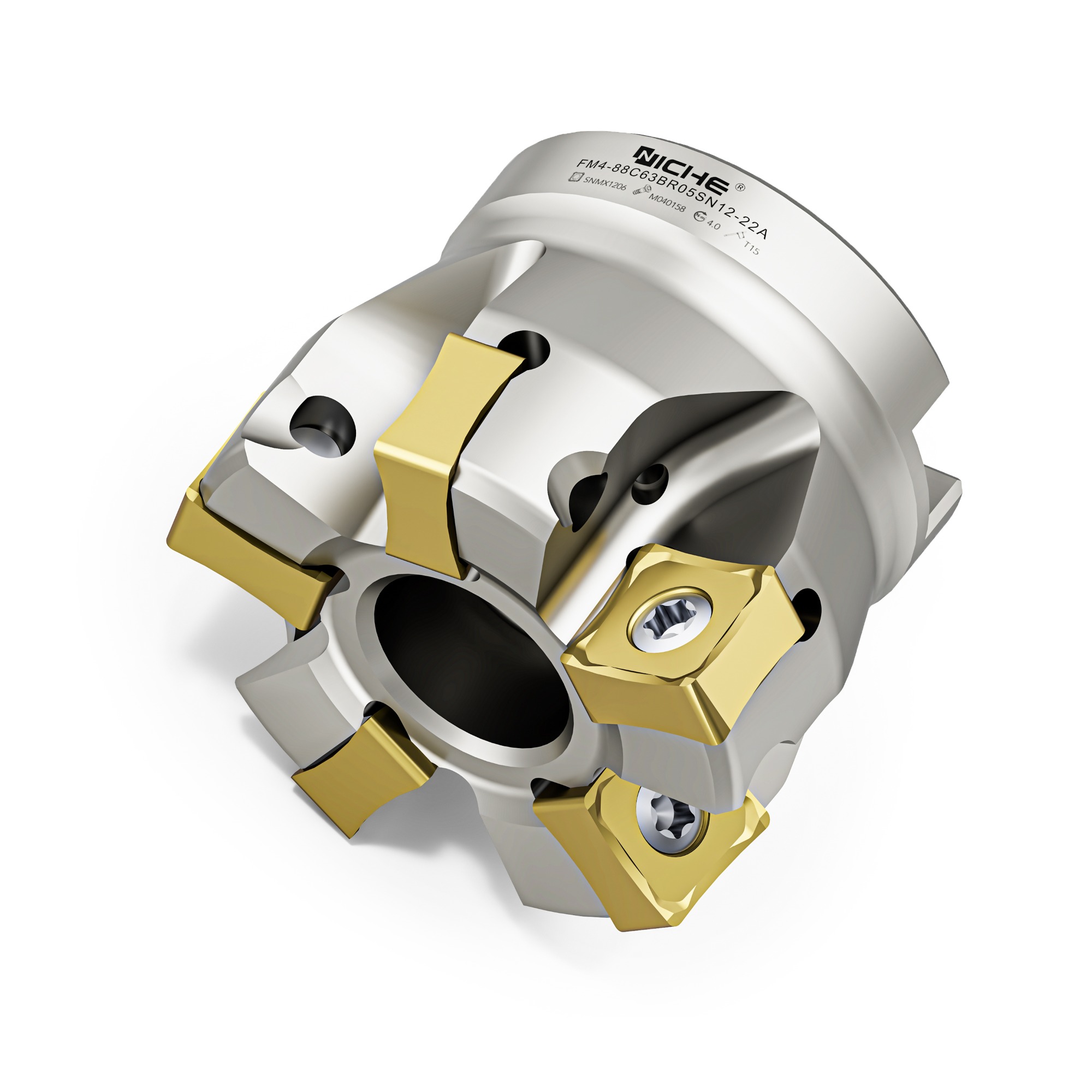

FM4-88C-SN12 (FACE MILL)
Features:
* Diameter Range: Ø50mm-Ø125mm
* Face Milling application
* Double sided negative insert with positive cutting
* High material removal rate

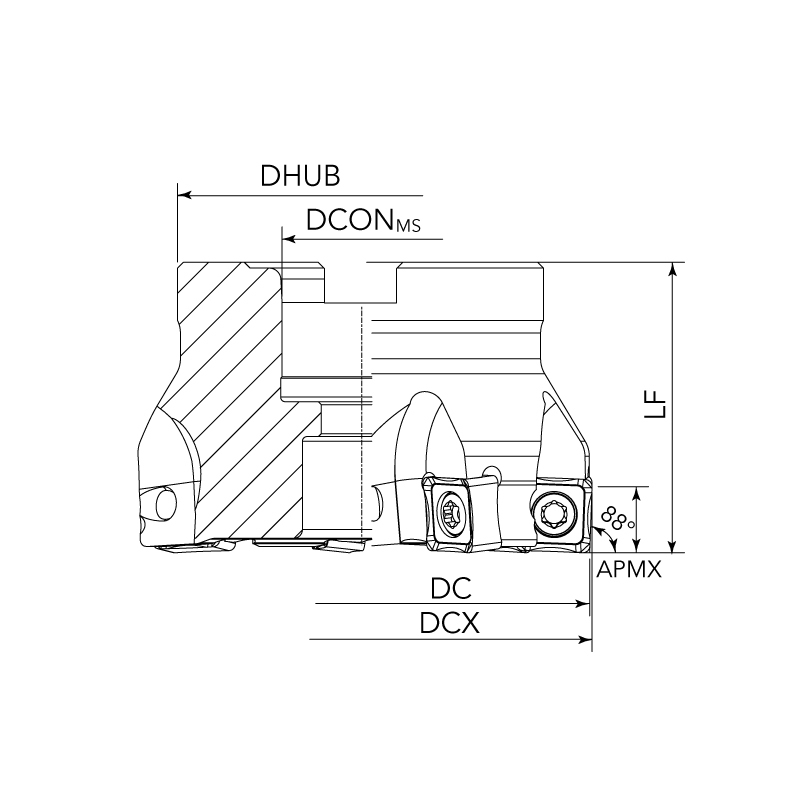

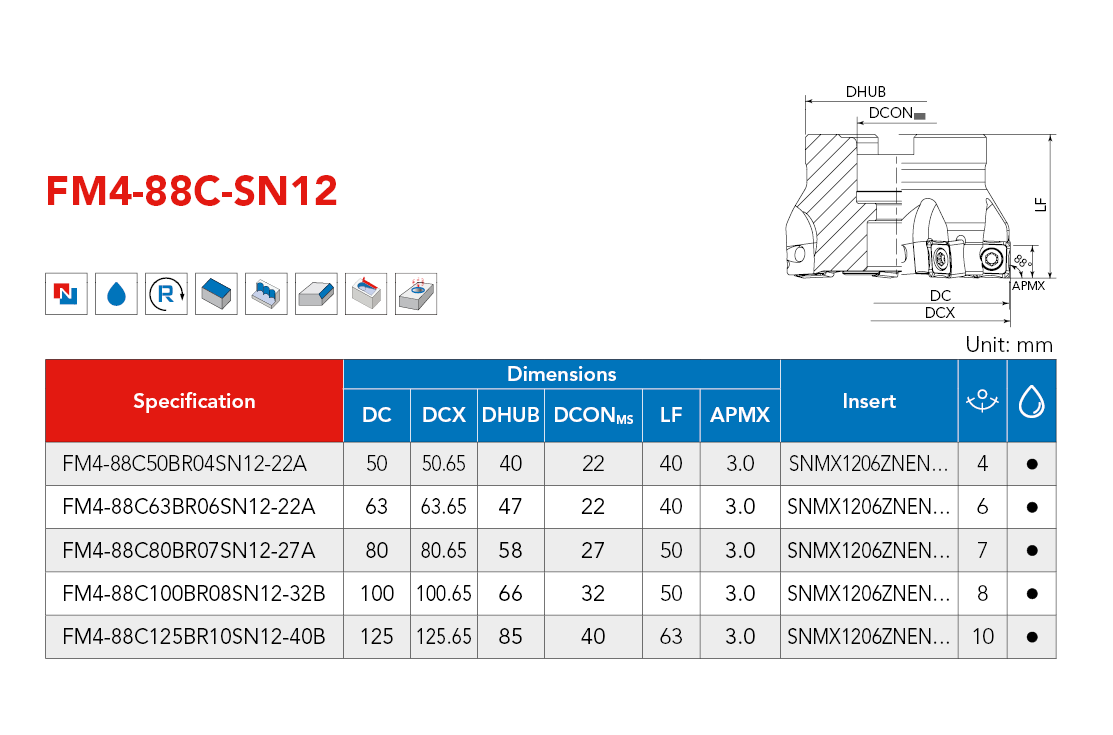

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DC |
DCX |
DHUB |
DCONMS |
LF |
APMX |
| FM4-88C50BR04SN12-22A |
50 |
50.65 |
40 |
22 |
40 |
3.0 |
SNMX1206ZNEN… |
4 |
| FM4-88C63BR06SN12-22A |
63 |
63.65 |
47 |
22 |
40 |
3.0 |
SNMX1206ZNEN… |
6 |
| FM4-88C80BR07SN12-27A |
80 |
80.65 |
58 |
27 |
50 |
3.0 |
SNMX1206ZNEN… |
7 |
| FM4-88C100BR08SN12-32B |
100 |
100.65 |
66 |
32 |
50 |
3.0 |
SNMX1206ZNEN… |
8 |
| FM4-88C125BR10SN12-40B |
125 |
125.65 |
85 |
40 |
63 |
3.0 |
SNMX1206ZNEN… |
10 |

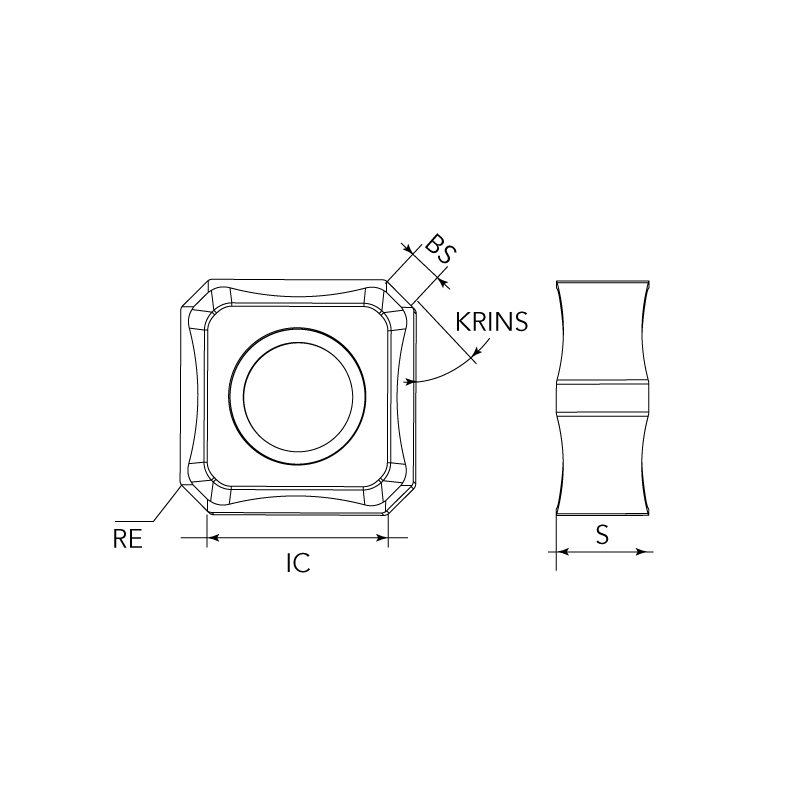

INSERTS
