CHAMFER MILLING TOOLS

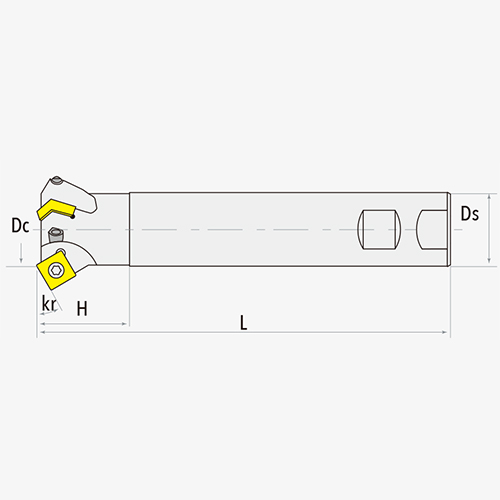

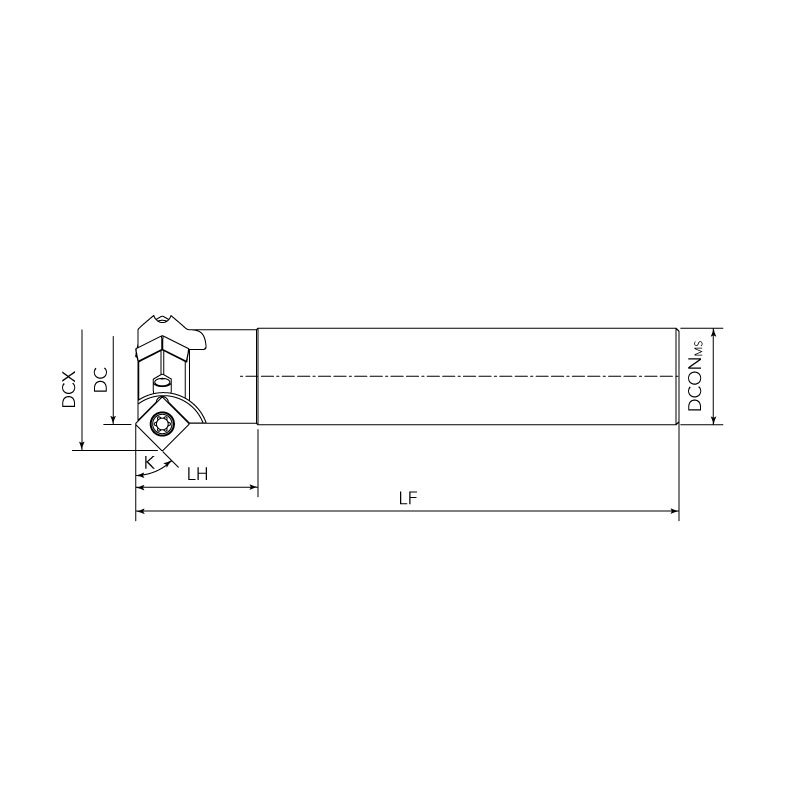

EM5-SP09/12 (END MILL)
Features:
* Diameter Range: Ø25mm-Ø32mm
* Champher Milling application
* High rigdity

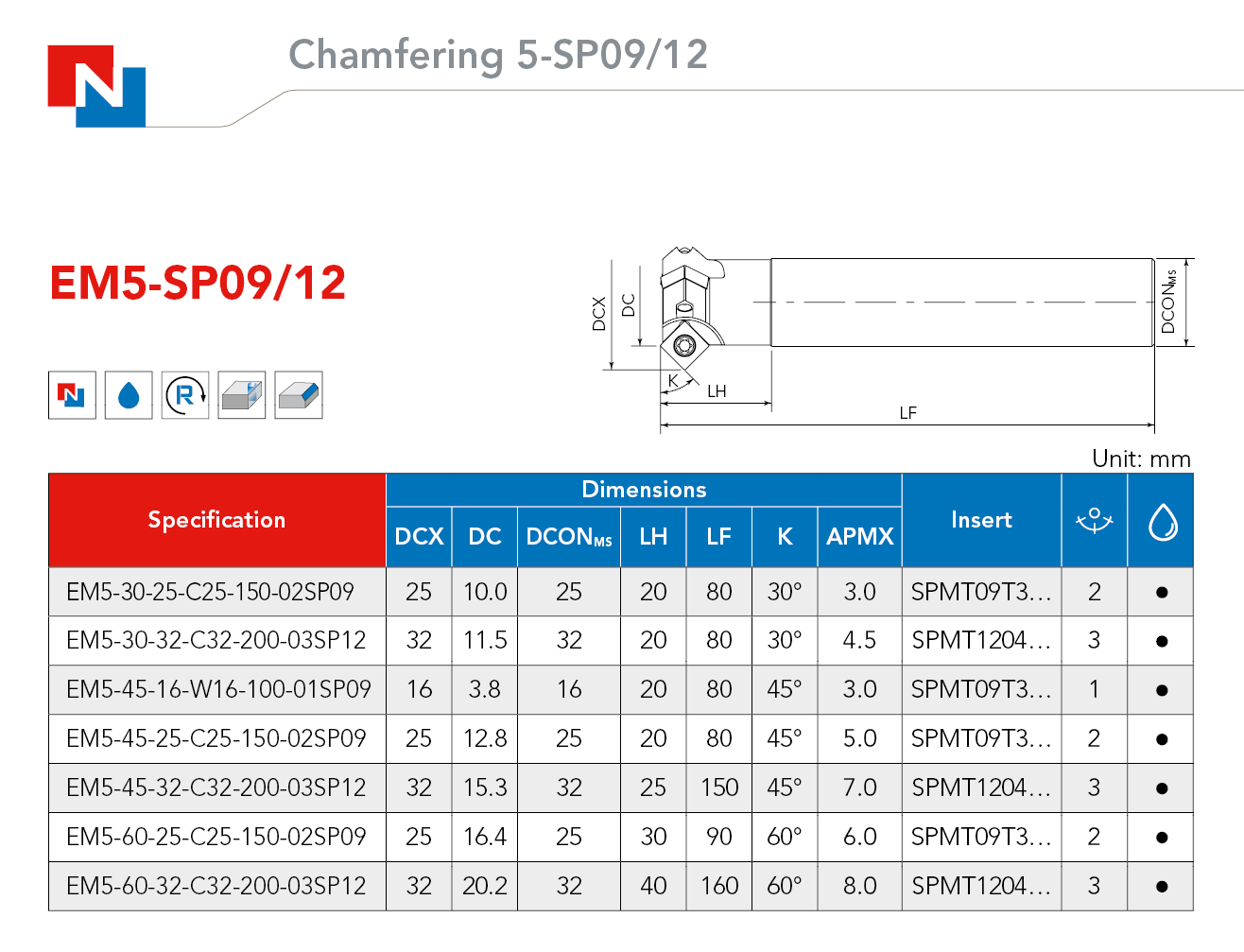

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DCX |
DC |
DCONMS |
LH |
LF |
K |
APMX |
| EM5-30-25-C25-150-02SP09 |
25 |
10.0 |
25 |
20 |
80 |
30° |
3.0 |
SPMT09T3… |
2 |
| EM5-30-32-C32-200-03SP12 |
32 |
11.5 |
32 |
20 |
80 |
30° |
4.5 |
SPMT1204… |
3 |
| EM5-45-16-W16-100-01SP09 |
16 |
13.8 |
16 |
20 |
80 |
45° |
3.0 |
SPMT09T3… |
1 |
| EM5-45-25-C25-150-02SP09 |
25 |
12.8 |
25 |
20 |
80 |
45° |
5.0 |
SPMT09T3… |
2 |
| EM5-45-32-C32-200-03SP12 |
32 |
15.3 |
32 |
25 |
150 |
45° |
7.0 |
SPMT1204… |
3 |
| EM5-60-25-C25-150-02SP09 |
25 |
16.4 |
25 |
30 |
90 |
60° |
6.0 |
SPMT09T3… |
2 |
| EM5-60-32-C32-200-03SP12 |
32 |
20.2 |
32 |
40 |
160 |
60° |
8.0 |
SPMT1204… |
3 |

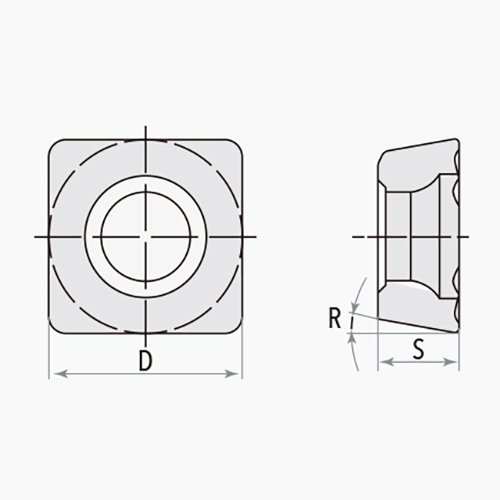

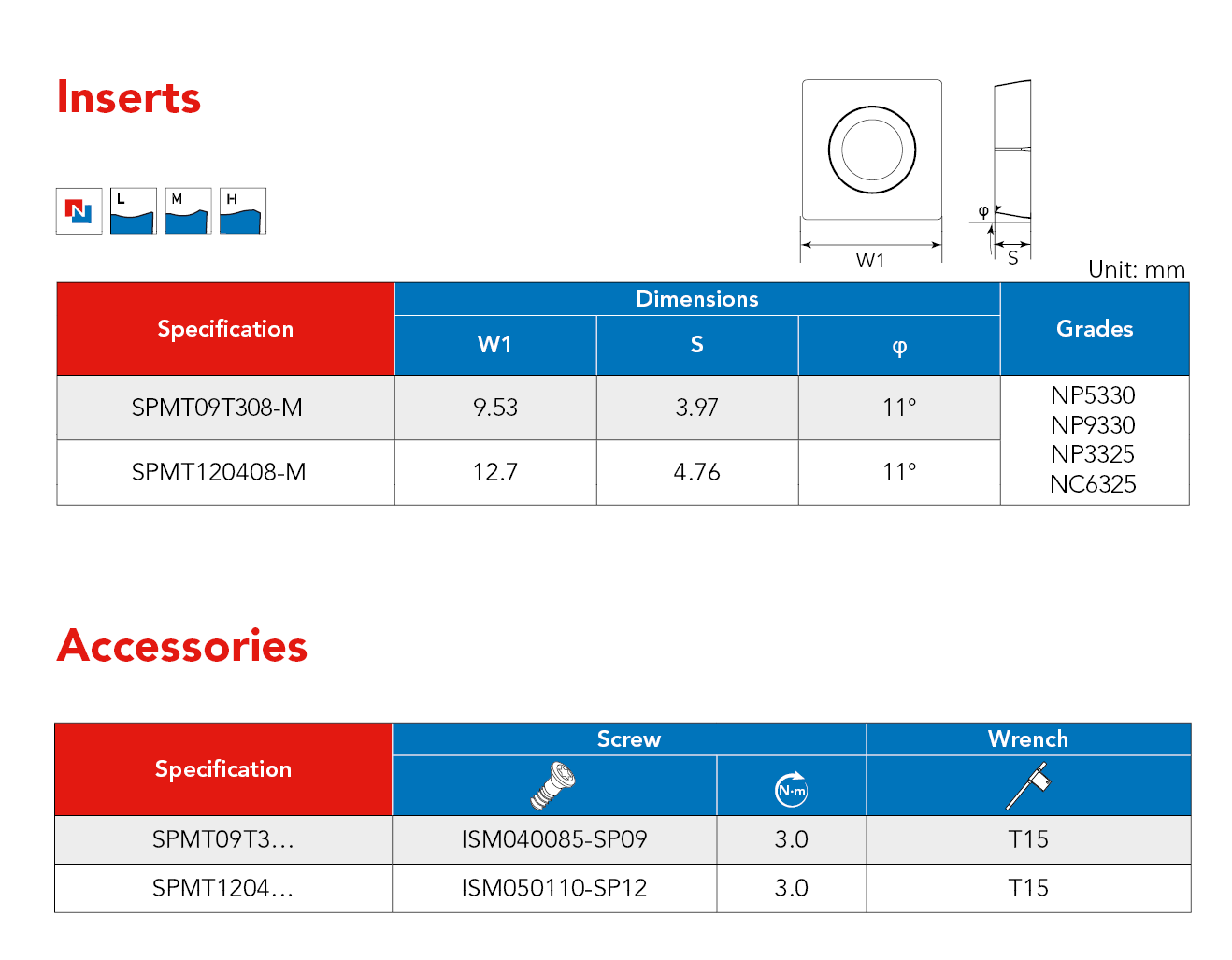

INSERTS
