THREAD MILLING TOOLS

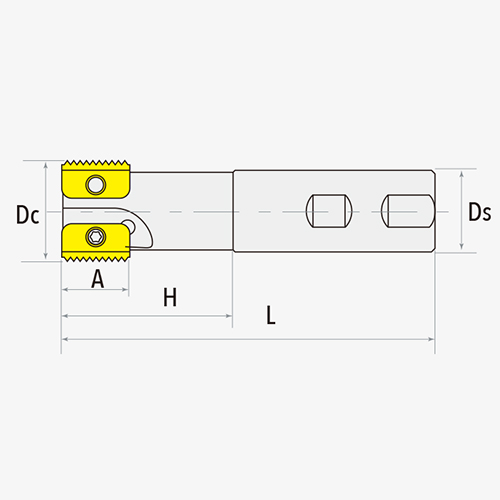

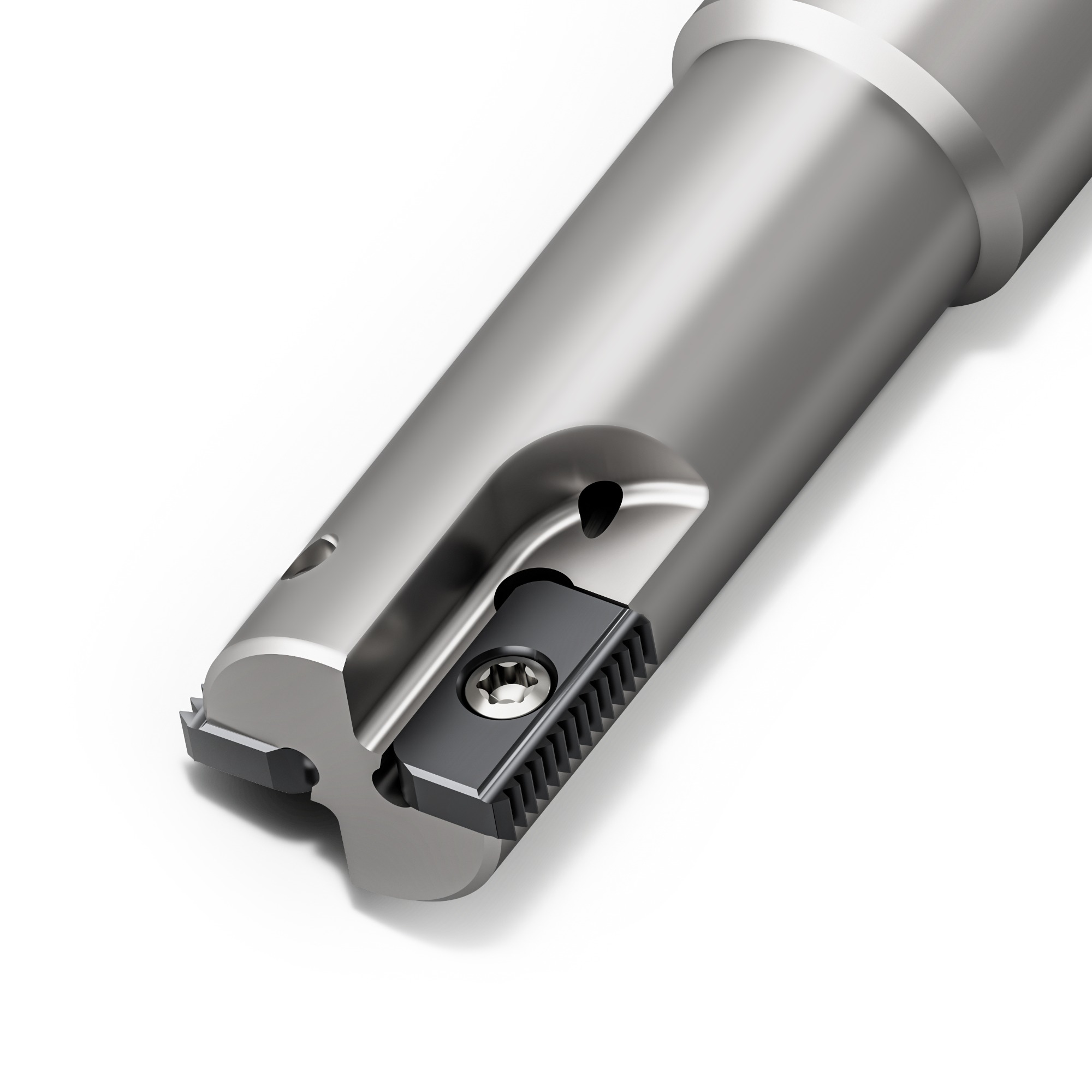

EM7-TM (FACE MILL)
Features:
* Diameter Range: Ø12mm-Ø50mm
* Thread Milling application
* High rigdity

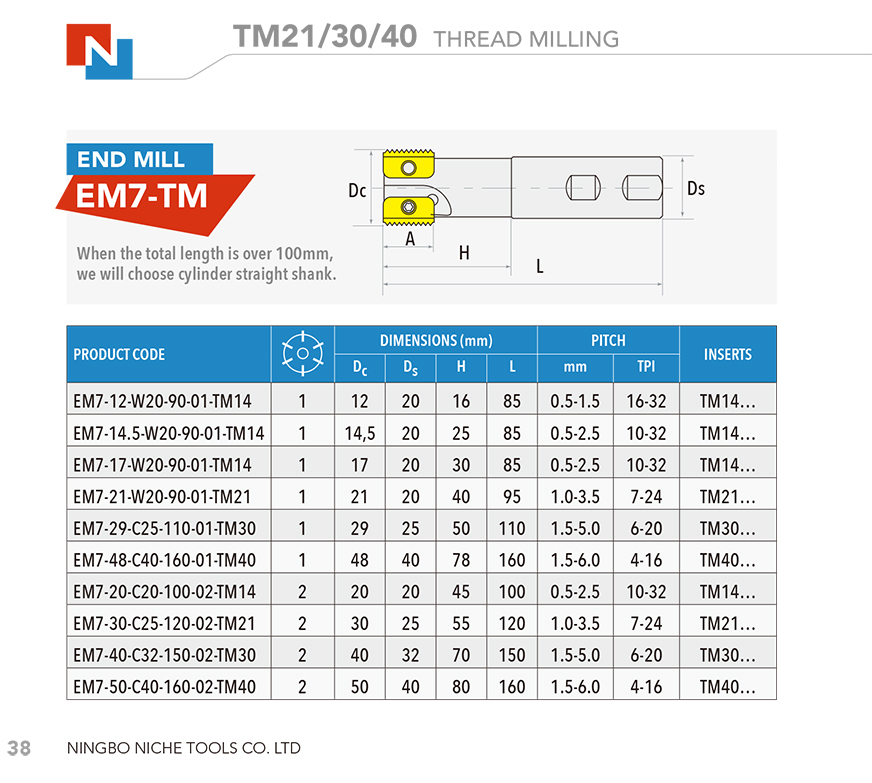

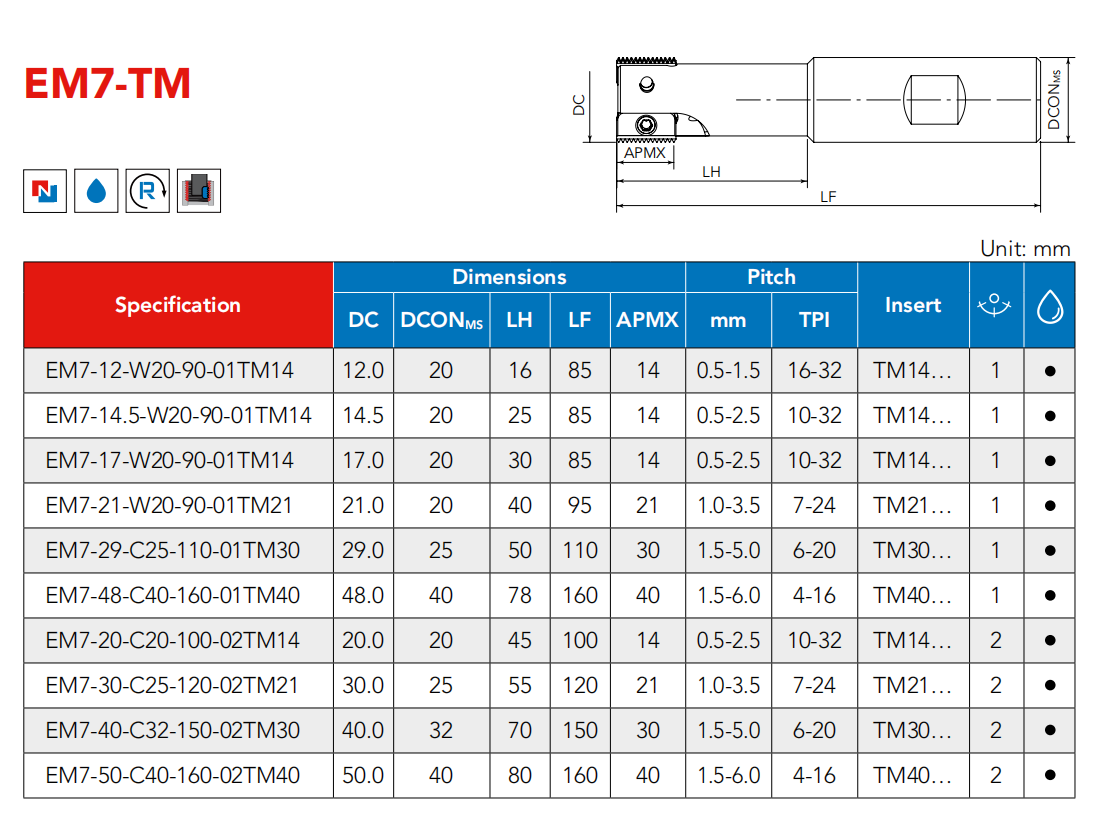

| PRODUCT CODE |
DIMENSIONS (mm) |
INSERTS |
PITCH |
FLUTE NO.
|
| DC |
DCONMS |
LH |
LF |
APMX |
mm |
TPI |
| EM7-12-W20-90-01TM14 |
12.0 |
20 |
16 |
85 |
14 |
TM14… |
0.5-1.5 |
16-32 |
1 |
| EM7-14.5-W20-90-01TM14 |
14.5 |
20 |
25 |
85 |
14 |
TM14… |
0.5-2.5 |
10-32 |
1 |
| EM7-17-W20-90-01TM14 |
17.0 |
20 |
30 |
85 |
14 |
TM14… |
0.5-2.5 |
10-32 |
1 |
| EM7-21-W20-90-01TM21 |
21.0 |
20 |
40 |
95 |
21 |
TM21… |
1.0-3.5 |
7-24 |
1 |
| EM7-29-C25-110-01TM30 |
29.0 |
25 |
50 |
110 |
30 |
TM30… |
1.5-5.0 |
6-20 |
1 |
| EM7-48-C40-160-01TM40 |
48.0 |
40 |
78 |
160 |
40 |
TM40… |
1.5-6.0 |
4-16 |
1 |
| EM7-20-C20-100-02TM14 |
20.0 |
20 |
45 |
100 |
14 |
TM14… |
0.5-2.5 |
10-32 |
2 |
| EM7-30-C25-120-02TM21 |
30.0 |
25 |
55 |
120 |
21 |
TM21… |
1.0-3.5 |
7-24 |
2 |
| EM7-40-C32-150-02TM30 |
40.0 |
32 |
70 |
150 |
30 |
TM30… |
1.5-5.0 |
6-20 |
2 |
| EM7-50-C40-160-02TM40 |
50.0 |
40 |
80 |
160 |
40 |
TM40… |
1.5-6.0 |
4-16 |
2 |
