TP15 Shoulder Milling Tools
TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools TP15 Shoulder Milling Tools
  • TP15 Shoulder Milling Tools
  • TP15 Shoulder Milling Tools
  • TP15 Shoulder Milling Tools

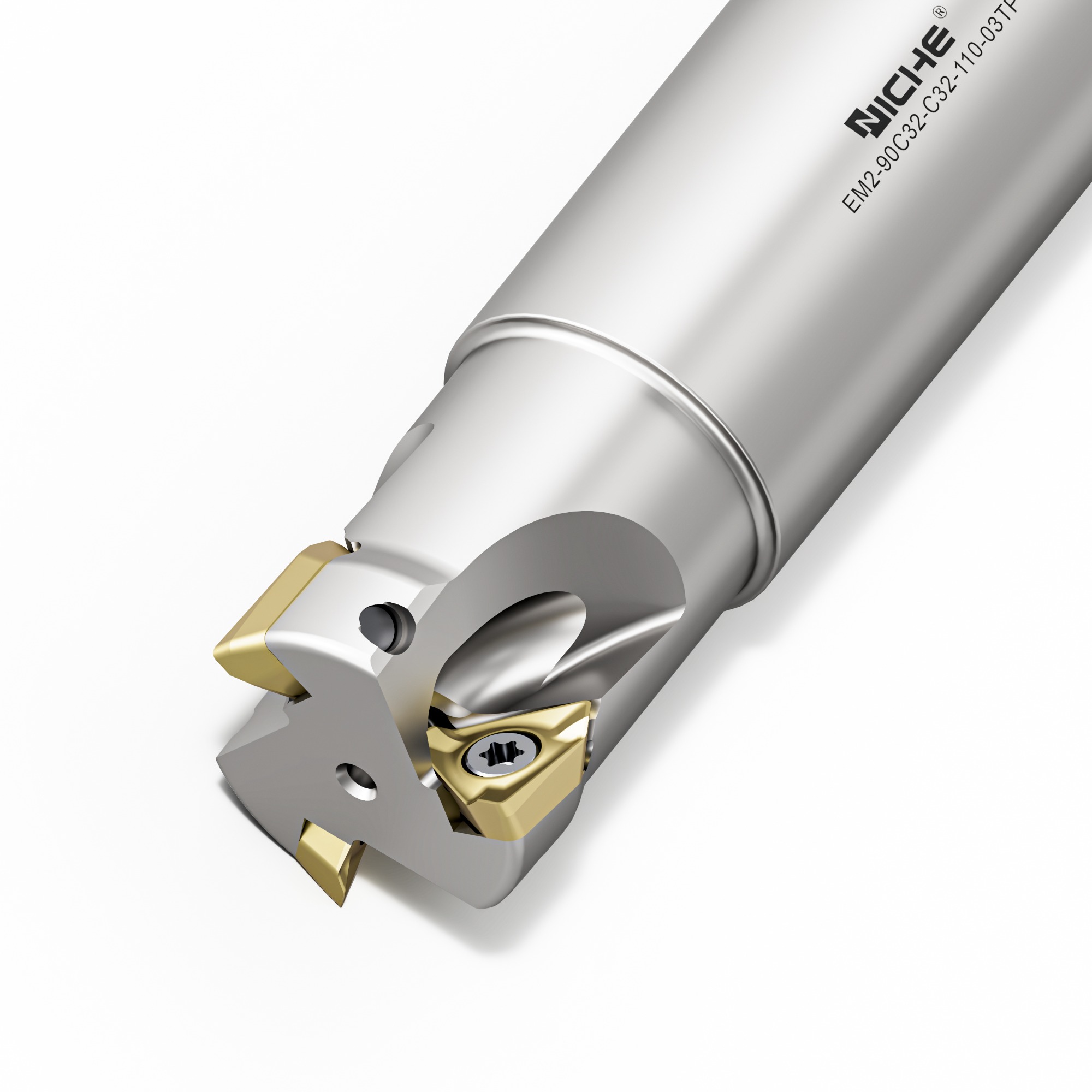

TP15 Shoulder Milling Tools

Item No.: EM2-90C-TP15
* Diameter Range: Ø32mm-Ø50mm
* Square Shoulder application
* Double sided negative insert with positive cutting
* High material removal rate
Add to Inquiry
Description
Description
SHOULDER MILLING TOOLS

EM2-90C-TP15  (END MILL)

Features:
* Diameter Range: Ø32mm-Ø50mm
* Square Shoulder application
* Double sided negative insert with positive cutting
* High material removal rate

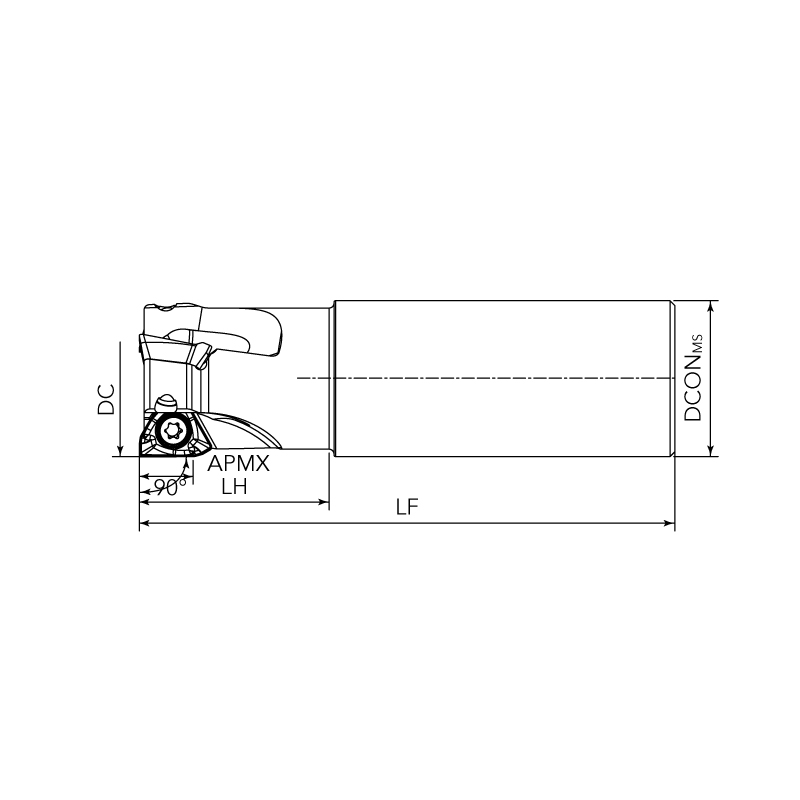

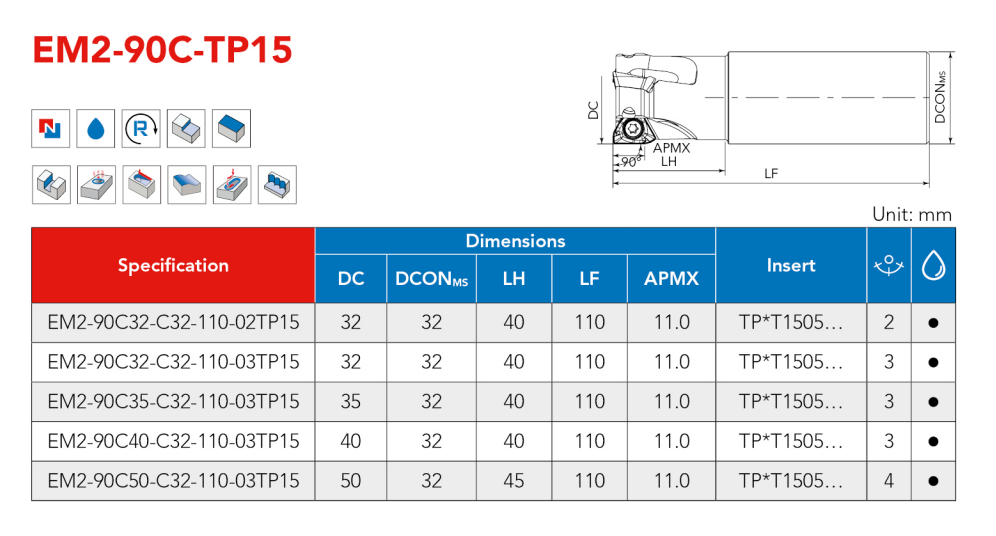

 PRODUCT CODE Dimensions (mm) INSERTS FLUTE NO.
DC DCONMS LH LF APMX
  EM2-90C32-C32-110-02TP15 32 32 40 110 11.0 TP*T1505… 2
  EM2-90C32-C32-110-03TP15 32 32 40 110 11.0 TP*T1505… 3
  EM2-90C35-C32-110-03TP15 35 32 40 110 11.0 TP*T1505… 3
  EM2-90C40-C32-110-03TP15 40 32 40 110 11.0 TP*T1505… 3
  EM2-90C50-C32-110-03TP15 50 32 45 110 11.0 TP*T1505… 4

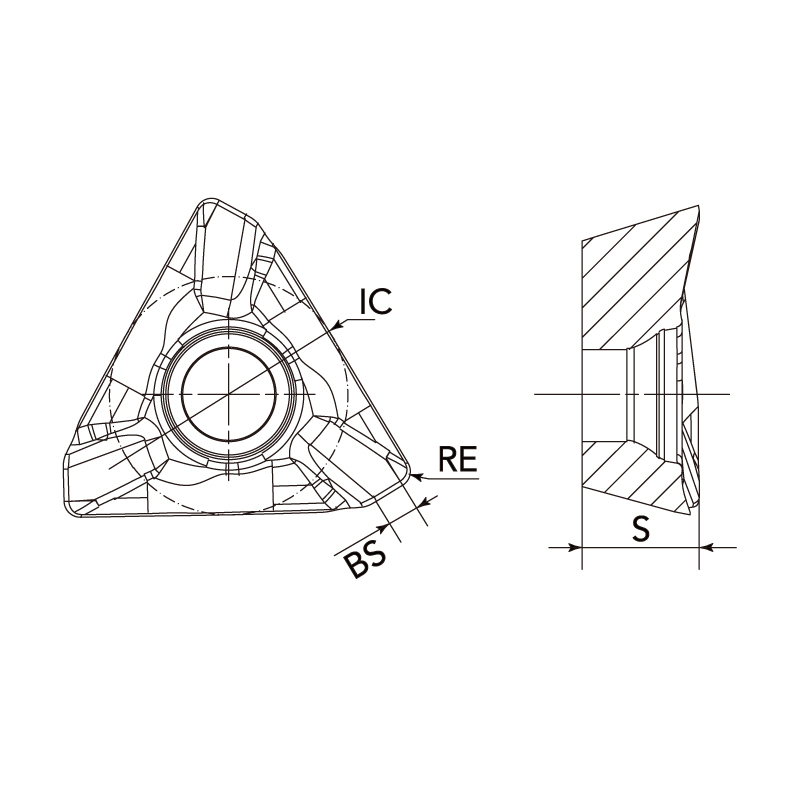

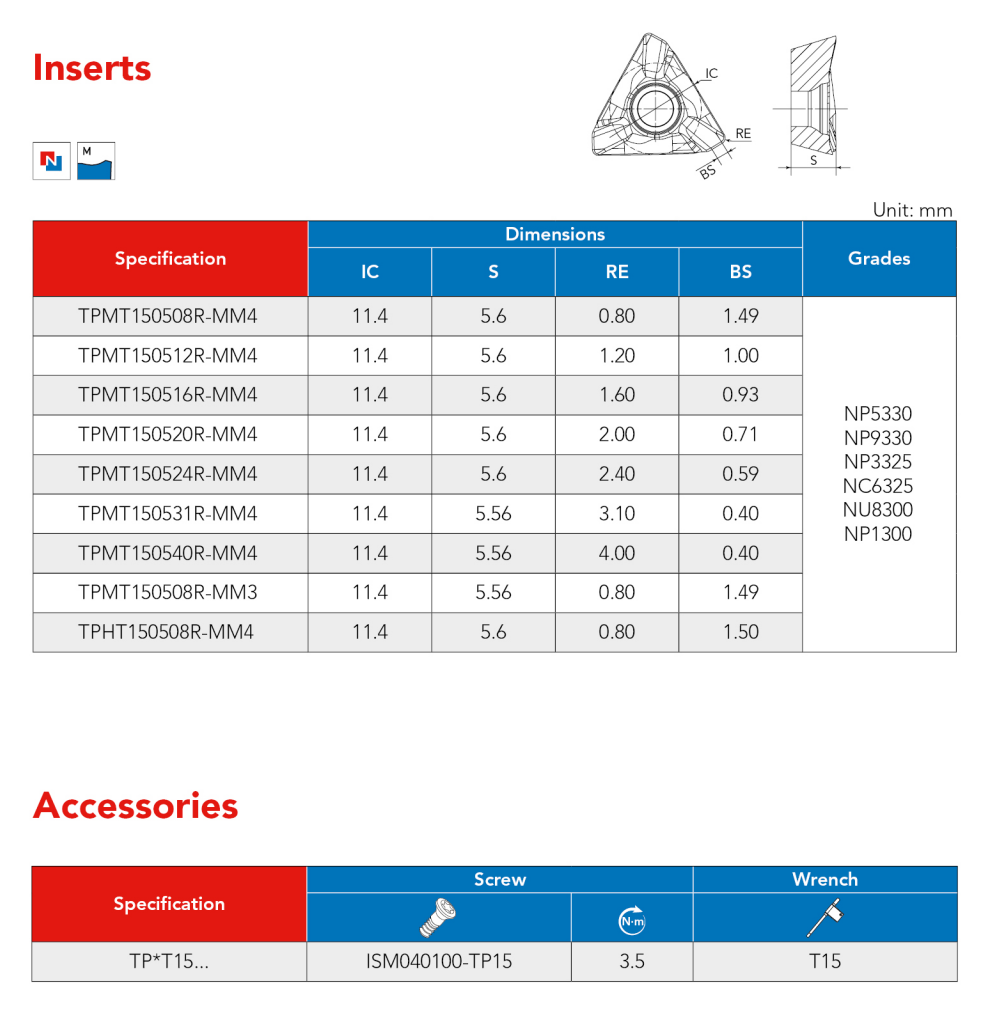

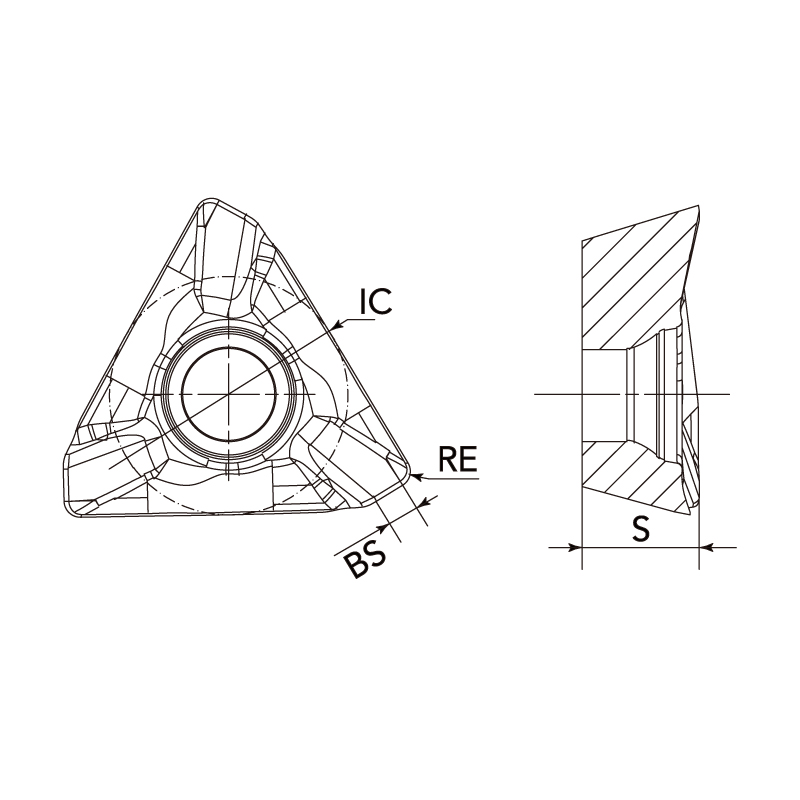

INSERTS
