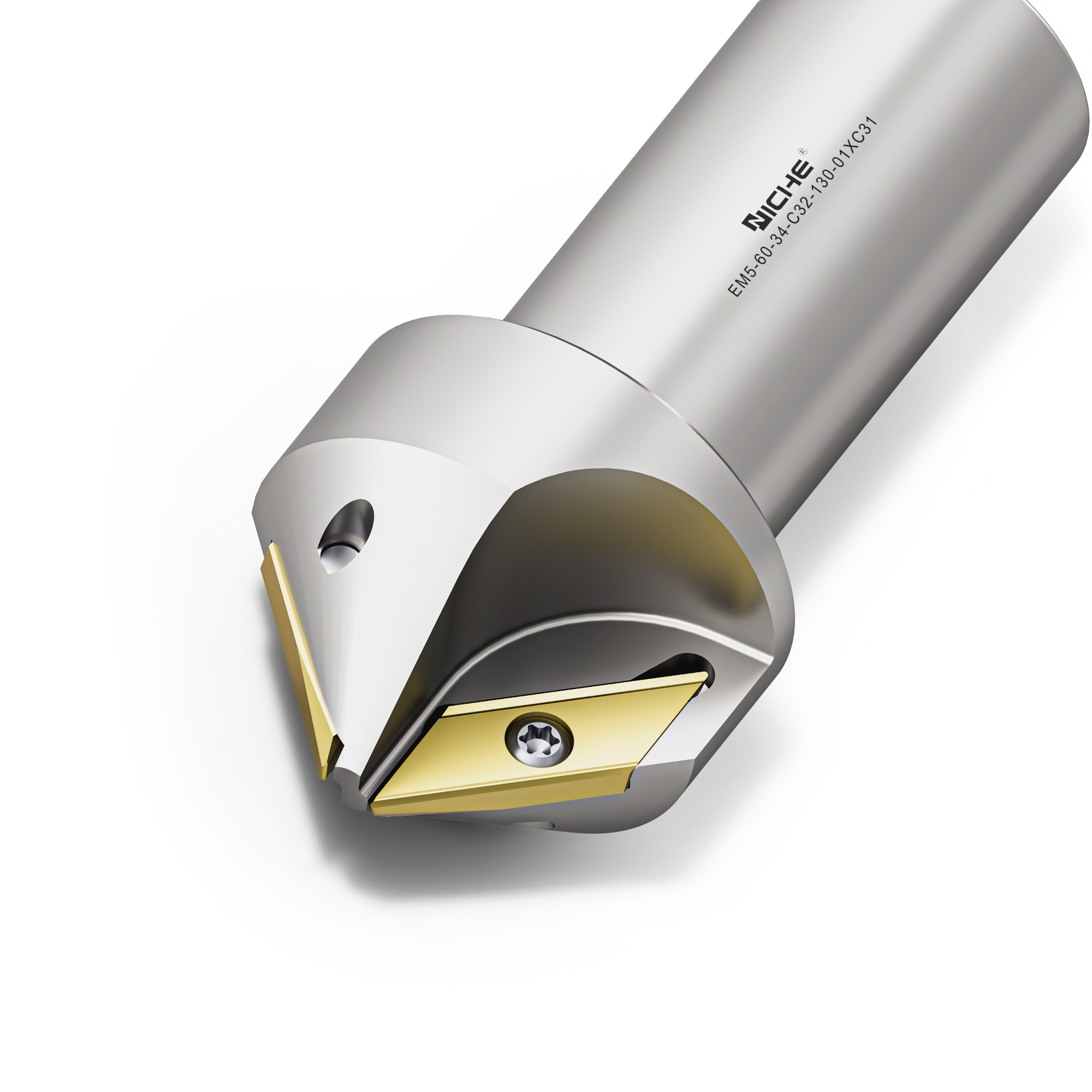

CHAMFER MILLING TOOLS

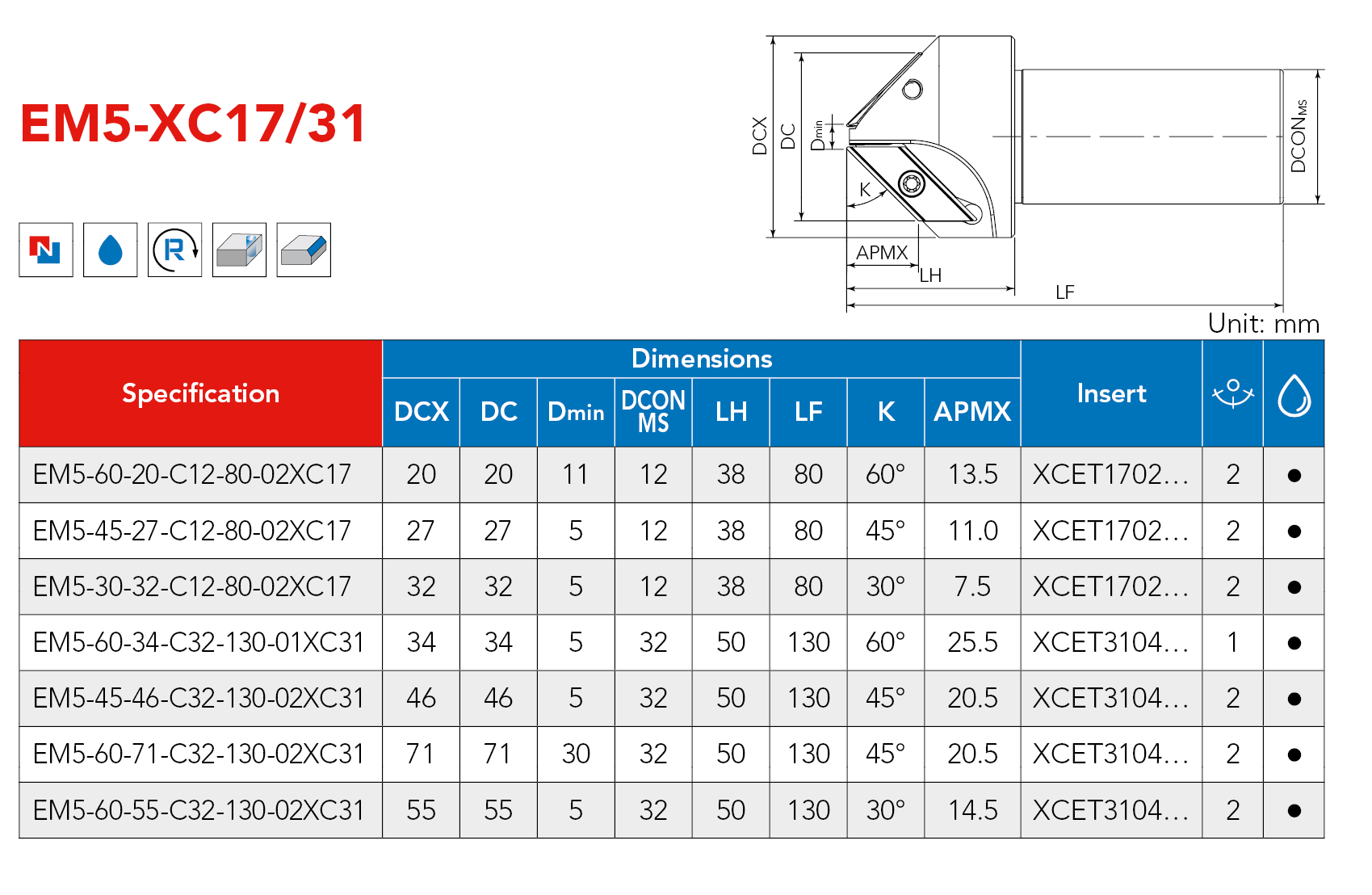

EM5-XC17/31 (END MILL)
Features:
* Diameter Range: Ø20mm-Ø55mm
* Champher Milling application
* High rigdity

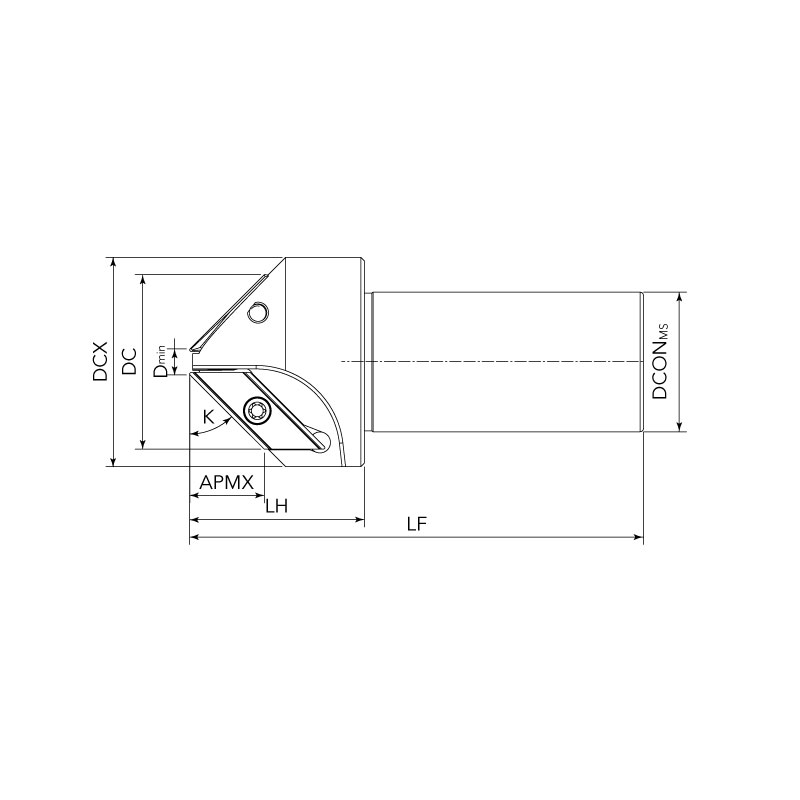

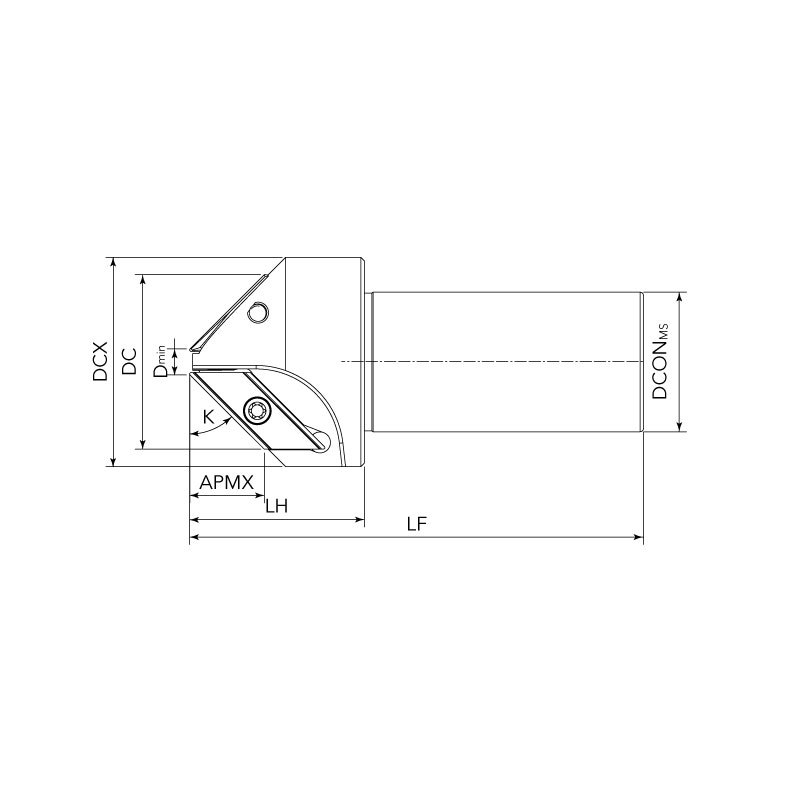

| PRODUCT CODE |
Dimensions (mm) |
INSERTS |
FLUTE NO. |
| DCX |
DC |
Dmin |
DCONMS |
LH |
LF |
K |
APMX |
| EM5-60-20-C12-80-02XC17 |
20 |
20 |
11 |
12 |
38 |
80 |
60° |
13.5 |
XCET1702… |
2 |
| EM5-45-27-C12-80-02XC17 |
27 |
27 |
5 |
12 |
38 |
80 |
45° |
11.0 |
XCET1702… |
2 |
| EM5-30-32-C12-80-02XC17 |
32 |
32 |
5 |
12 |
38 |
80 |
30° |
7.5 |
XCET1702… |
2 |
| EM5-60-34-C32-130-01XC31 |
34 |
34 |
5 |
32 |
50 |
130 |
60° |
25.5 |
XCET3104… |
1 |
| EM5-45-46-C32-130-02XC31 |
46 |
46 |
5 |
32 |
50 |
130 |
45° |
20.5 |
XCET3104… |
2 |
| EM5-60-71-C32-130-02XC31 |
71 |
71 |
30 |
32 |
50 |
130 |
45° |
20.5 |
XCET3104… |
2 |
| EM5-60-55-C32-130-02XC31 |
55 |
55 |
5 |
32 |
50 |
130 |
30° |
14.5 |
XCET3104… |
2 |

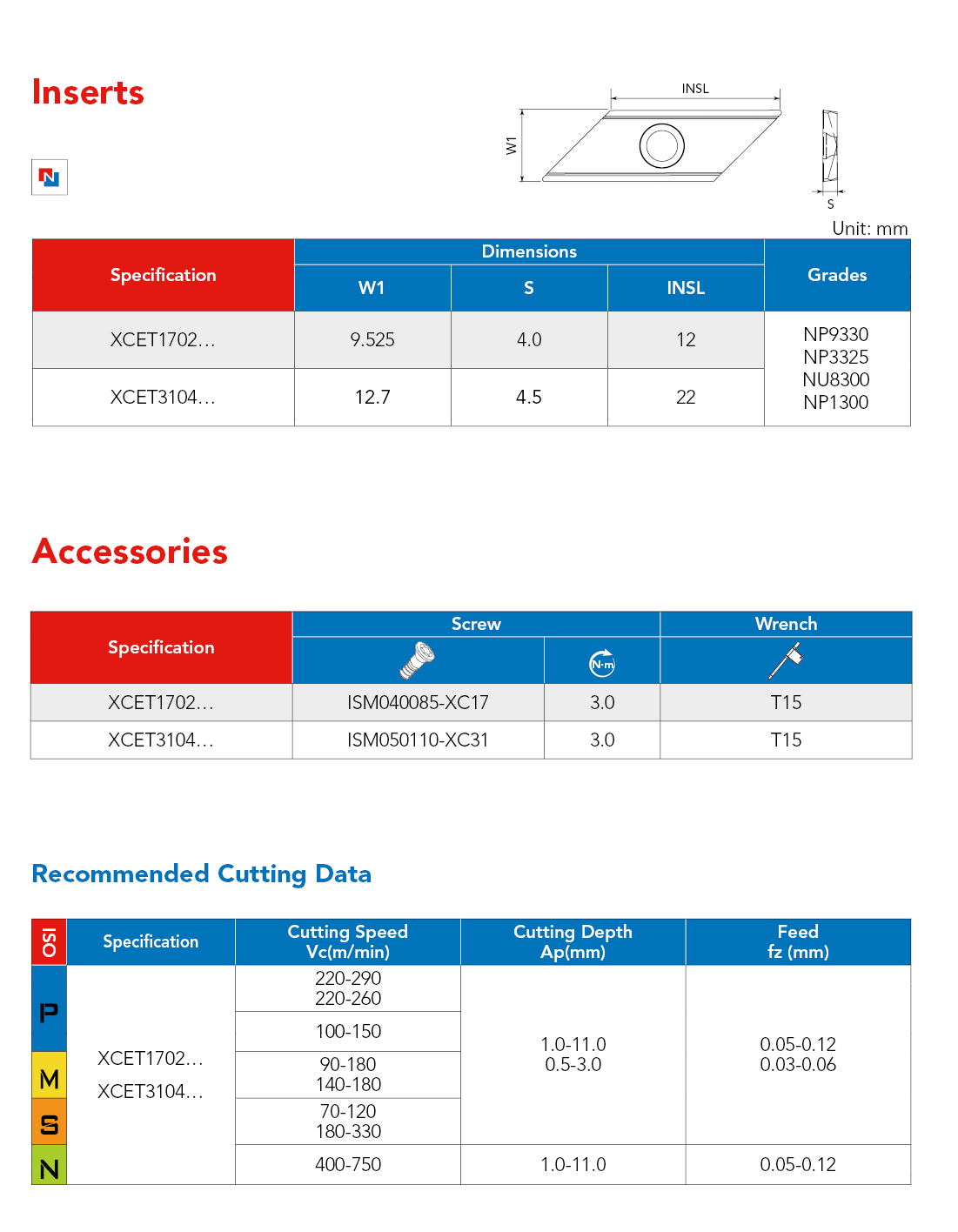

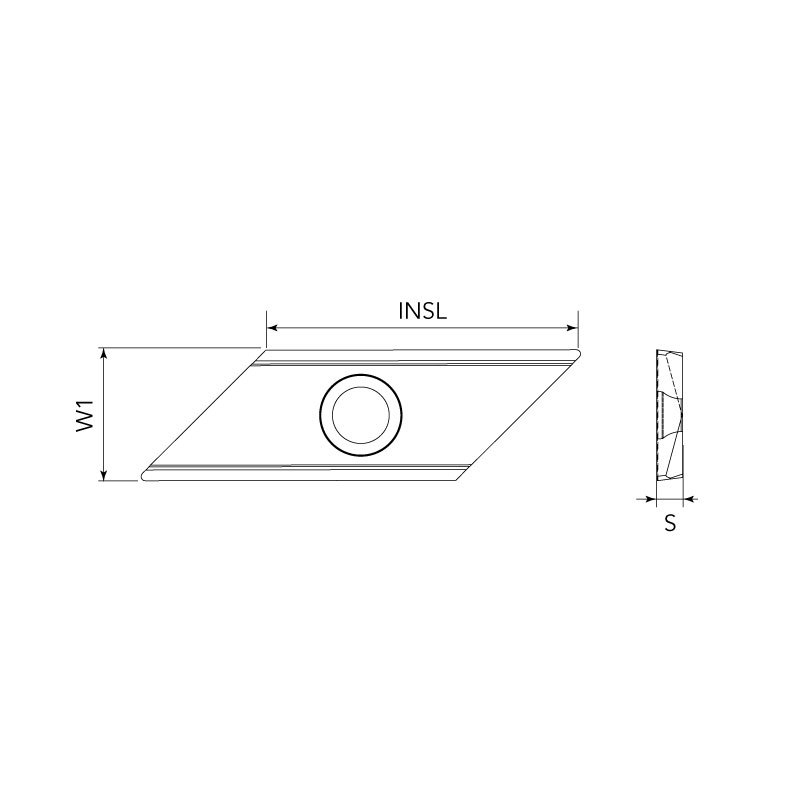

INSERTS
